Automated production lines demand control components that deliver both versatility and resilience under continuous operation. The 22MM Rotary Switches 1NO1NC Momentary/Self-Latching Black Push Button Rotary Knob Switch meets these challenges with a dual-pole design engineered for precision signal routing in high-cycle industrial environments.

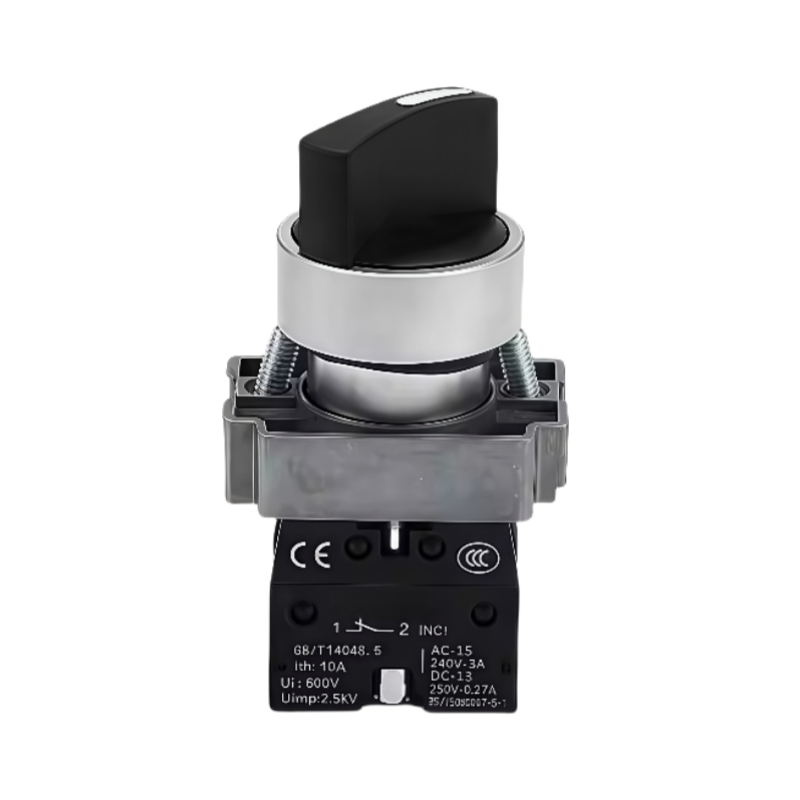

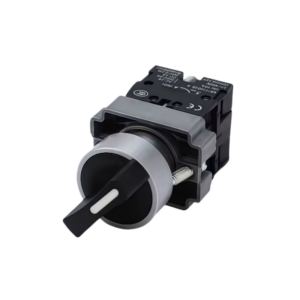

This 22mm rotary switch integrates 1NO1NC contacts within a compact black push-button knob, enabling operators to toggle between momentary and self-latching modes seamlessly. The ON-OFF switch combination supports simultaneous control of multiple circuits, reducing component counts in control panels for packaging machinery, CNC interfaces, and conveyor systems.

Key specifications include:

• IP65-rated enclosure resistant to dust ingress and low-pressure water jets
• Plastic housing with reinforced structural integrity for vibration-heavy settings
• Operating temperature range of -20°C to +55°C for cold storage or heated workspaces
• 2-pin terminal design for rapid wiring in DIN rail or panel-mounted configurations

Unlike standard rotary switches limited to single-function operation, this model’s hybrid momentary/latching capability allows dynamic mode switching without physical reconfiguration. For example, in robotic assembly lines, the momentary mode enables emergency stop triggers, while the latching function maintains actuator power states during shift changes.

The switch’s 22mm mounting hole size ensures compatibility with global industrial panel standards, simplifying retrofits. Its tactile feedback mechanism minimizes operator error, with a 50,000-cycle mechanical lifespan validated under IEC 61058-1 endurance testing.

Applications span industries requiring dual-circuit control:

• Textile machinery for thread tension and spindle speed adjustments
• Pharmaceutical batch processing with sterile environment compliance
• Renewable energy systems managing load balancing and fault isolation

For OEMs prioritizing space optimization, the integrated push-button rotary knob consolidates control functions into a single footprint. The corrosion-resistant plastic housing withstands exposure to oils, solvents, and mild acids, making it suitable for automotive paint shops or chemical dosing units.

Upgrade your automation control panels with the 22mm rotary switch engineered for precision and adaptability. Contact our technical team to discuss custom configurations, including terminal types or specialized voltage ratings.
