Industrial-grade Multi-Points Water Level Flow Switch with IP67 waterproof rating. Built with corrosion-resistant SS304/316 and PP, operating in extreme temps (-30℃~+200℃). Features N.O/N.C contacts (10W/50W), customizable wire length (350mm+), and smart monitoring. REACH-compliant, 1-year warranty, with OEM/ODM support for tailored solutions.
| Product Name | Water Level Flow Switch |
| Protection Grade | IP67 Waterproof |
| Type | Multi-Points Detection |
| Material | SS304 / SS316 / PP |
| Operating Temperature | -30℃ ~ +200℃ |
| Rated Voltage | 220VDC |
| Rated Current | 1.5A |
| Contact Rating | 10W / 50W |
| Contact Form | NO / NC |
| Wire Length | 350mm (customizable) |
| Certification | REACH |
| Warranty | 1 Year |
| Application | Water Level, Flow Control, Liquid Sensor |
This smart IP67 multi-points water level flow switch provides reliable liquid level and flow monitoring for industrial systems. IP67 waterproof rating ensures stable performance in wet and harsh environments. SS304/316 stainless steel and PP materials offer excellent corrosion resistance and long service life. The wide temperature range from -30℃ to +200℃ adapts to extreme working conditions. Multi-point detection design supports precise control, while NO/NC contacts and customizable wiring make it highly versatile for various equipment.
Product Name: Water Level Flow Switch
Whether the smart: Yes
IP level: IP67
Operating Temperature: -30~+200℃
Material: Stainless Steel 304/316.PP
Application: Level Sensor
Operation Temperature: -30 ~ +200℃
Max. Current: 1.5A
Max. Voltage: 220VDC
Contact rating Max: 10W/50W
Contact Form: N.O/N.C
Wire length: 350mm or as require
Feature： Water-proof
Warranty： 1 Year

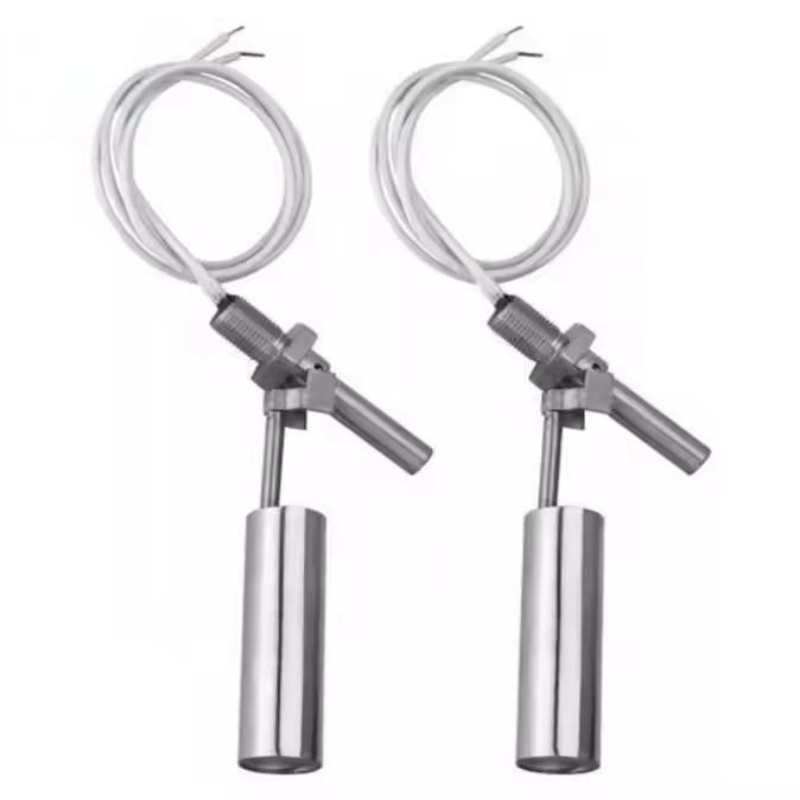

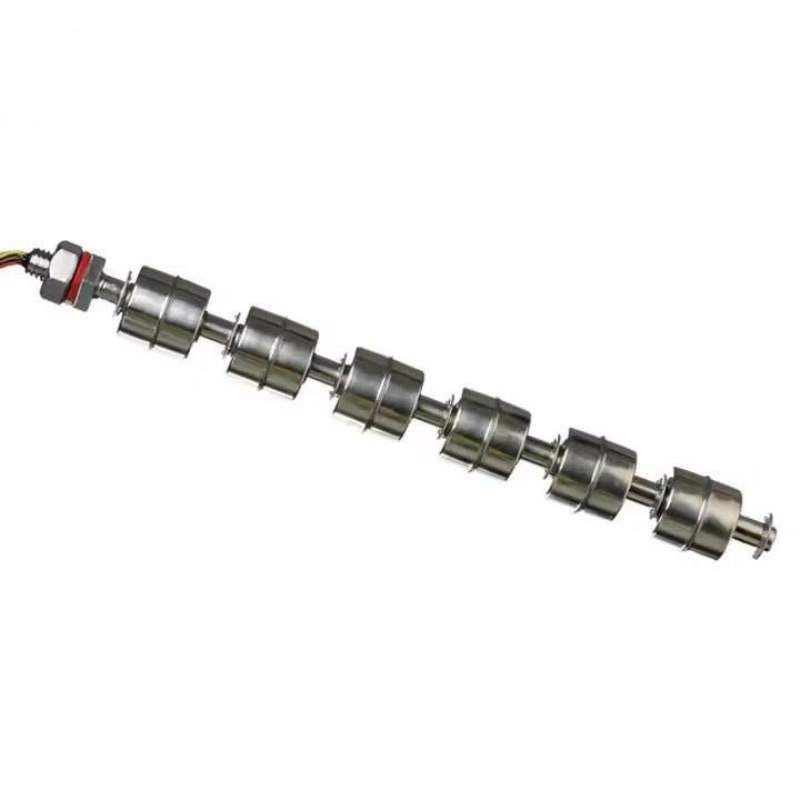

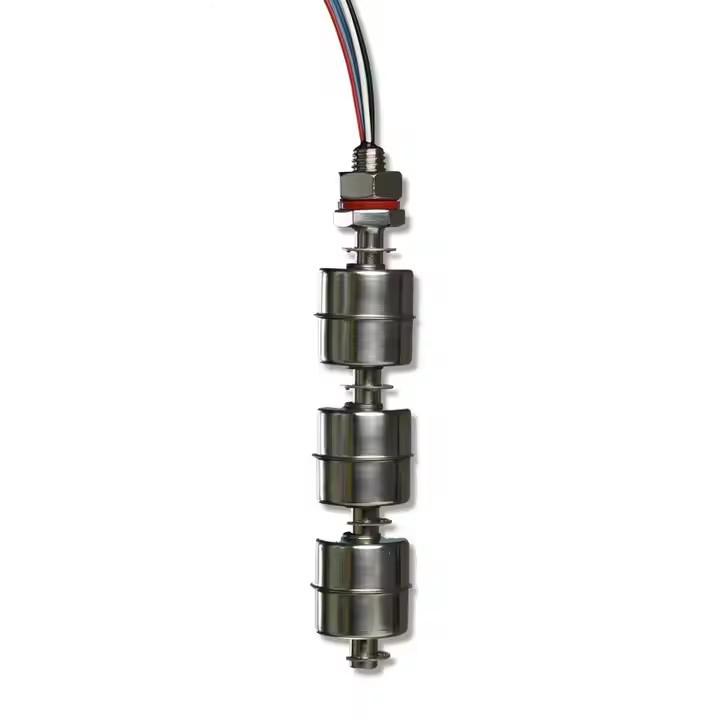

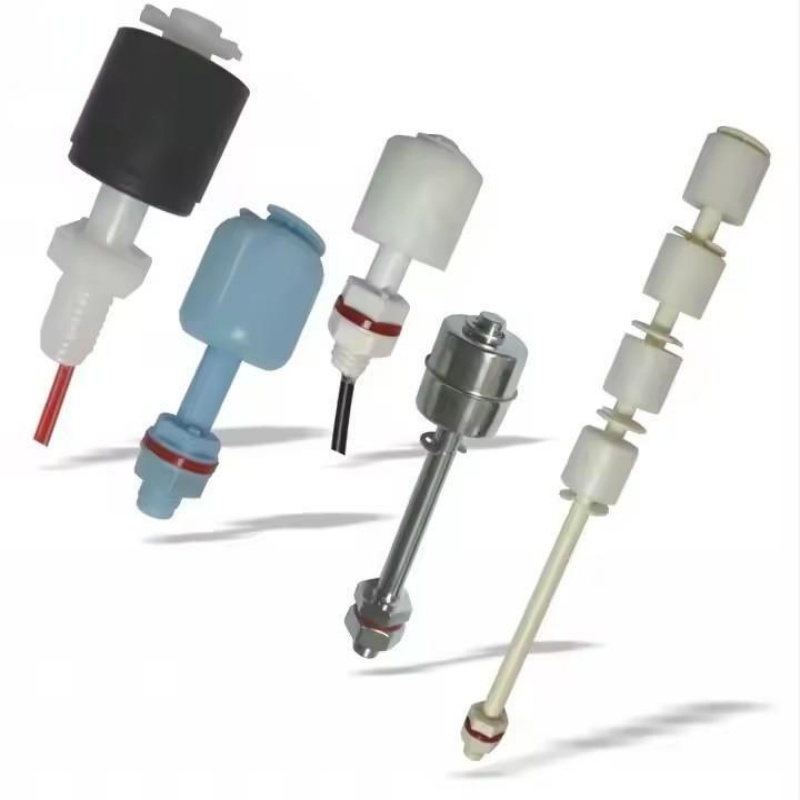

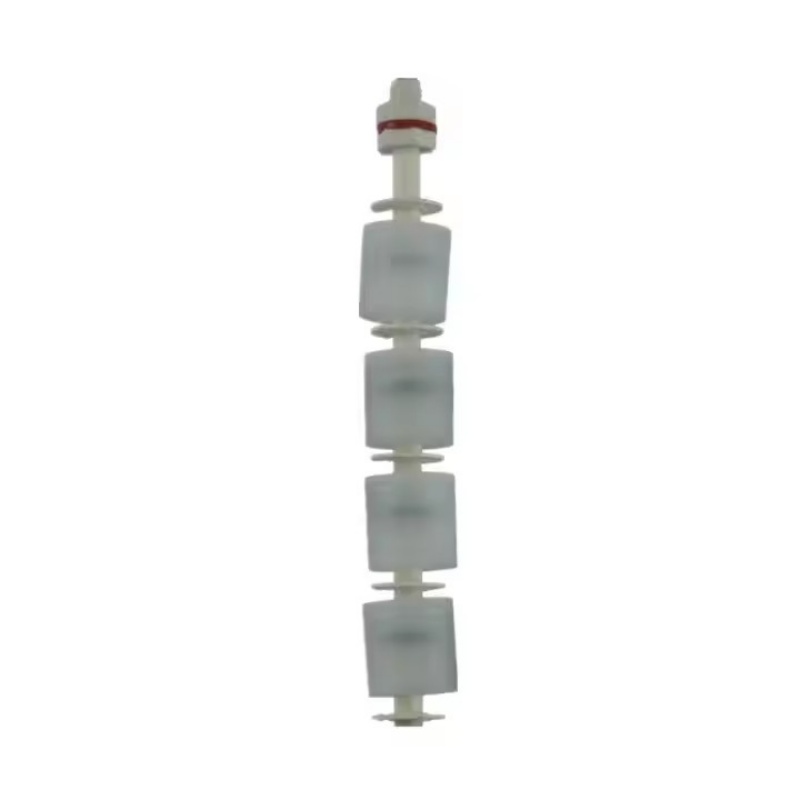

Product images
1. Is this switch IP67 waterproof?
Yes, it has IP67 high-level waterproof and dustproof protection.
2. What materials are used?
Stainless steel 304, 316 and PP for corrosion resistance.
3. What temperature range does it support?
Wide operating temperature: -30℃ ~ +200℃.
4. What is the rated voltage & current?
220VDC, 1.5A.
5. Does it support NO and NC contacts?
Yes, both NO and NC contact types are available.
