Key Features & Core Advantages

• DPDT (Double Pole Double Throw) 2-pole 6-pin design with classic ON-ON dual-position function for dual-circuit switching
• Miniature compact structure, 6mm standard panel mounting hole, saves installation space for small devices
• Dual terminal options: solder terminal and PC terminal, flexible for different wiring and PCB assembly
• Dual electrical ratings: 5A 125VAC and 2A 250VAC, matching various low & medium load circuits
• Excellent electrical performance: max 20MΩ contact resistance, ≥1000MΩ insulation resistance @500VDC
• High dielectric strength, withstand 1500VAC for 1 minute to ensure circuit safety
• Wide operating temperature: -25℃ ~ +85℃, adapts cold and hot working environments
• Premium material combination: UL94V-0 flame retardant PPA case and stainless steel housing
• Brass & aluminium alloy actuator and bushing with nickel/chrome plating for anti-oxidation
• Tin-plated brass bracket, copper alloy contacts with silver/gold plating for stable conduction
• 40000 mechanical cycles and 10000 electrical cycles for long-term frequent operation
• RoHS certified, complies with global environmental protection standards for export
• Pure mechanical structure without smart modules, low failure rate and easy maintenance

Full Technical Specifications

Product Attributes

• Circuit: DPDT 2 Poles, ON-ON Two Position
• Pins: 6 Pins
• Mounting: 6mm Panel Hole
• Terminal: Solder / PC Dual Options
• Electrical Rating: 5A 125VAC / 2A 250VAC
• Contact Resistance: ≤20MΩ
• Insulation Resistance: ≥1000MΩ (500VDC)
• Withstand Voltage: 1500VAC / 1min
• Temp Range: -25℃ ~ +85℃
• Lifespan: Mechanical 40000 / Electrical 10000 Cycles
• Main Materials: PPA, Stainless Steel, Brass, Aluminium Alloy
• Certification: RoHS
• Structure: Pure Mechanical (Non-smart)

Product Advantages

This DPDT 6-pin miniature toggle switch adopts professional dual-circuit design to realize stable ON-ON signal switching. The 6mm standard mounting hole and dual terminal designs greatly improve installation and wiring flexibility, adapting to manual wiring and PCB soldering. It has outstanding electrical indicators including low contact resistance, high insulation and strong voltage resistance, ensuring safe and reliable circuit operation. With a wide temperature range, it can work normally in low-temperature and high-temperature environments. The whole set uses high-grade materials and diversified plating processes, which effectively resist oxidation and wear and extend service life. Both mechanical and electrical life meet industrial standards. RoHS certification makes it compliant with global environmental regulations, suitable for overseas sales. As a mini pure mechanical switch, it has compact size, simple structure, low failure rate and low maintenance cost, which is a cost-effective general component for various electrical equipment.

Application Scenarios

This RoHS-compliant miniature toggle switch is widely sold in Europe, North America, Southeast Asia and other global regions, widely used in civil and industrial electrical fields.

• General electrical equipment and household appliance internal circuit switches
• Industrial control panels and low-voltage dual-circuit control components
• Laboratory testing instruments and measuring device selector switches
• PCB modular circuits and compact electronic control units
• Audio equipment and signal channel switching modules
• Electronic DIY projects and customized mini dual-circuit control devices

Max. Current： 5A 125VAC
Max. Voltage： 2A 250VAC
Whether the smart： NO
Mechanical Life： 40000cycles
Function： ON ON
Material： PPA
Rating： 5A 125V AC 2A 250VAC
Pins： 6pins
Certifications： RoHS
Electrical Life： 10000 Cycles
Application： Electrical Equipment
Panel mounting hole： 6mm
Terminal Options： Solder terminals &PC terminals
Poles： 2poles

Rating:5A 125VAC, 2A 250VAC
Contact Resistance：20MΩ Max
Insulation Resistance：500VDC 1000MΩ Min
Dielectric Strength：1500V AC， 1 Minute
Operatiing Temperature：-25ºC~+85ºC
Electrical Life：10000 cycles
Mechanical Life：40000 cycles
Circuit：DPDT
Switch function：ON ON
Materials:
Case：PPA(UL94V-0)
Actuator：Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
Bushing：Brass,Aluminium Alloy,Nickel-plated,Chrome-plated
Housing：Stainless Steel
Support Bracket：Brass,Tin-plated
Contact/Terminals：Copper Alloy, Silver or Gold-plated

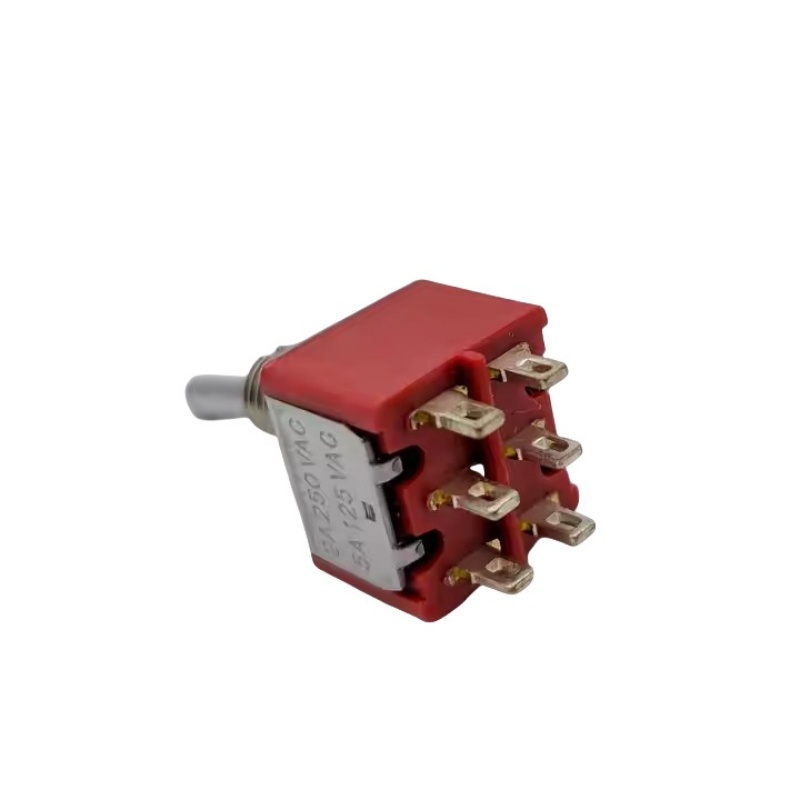

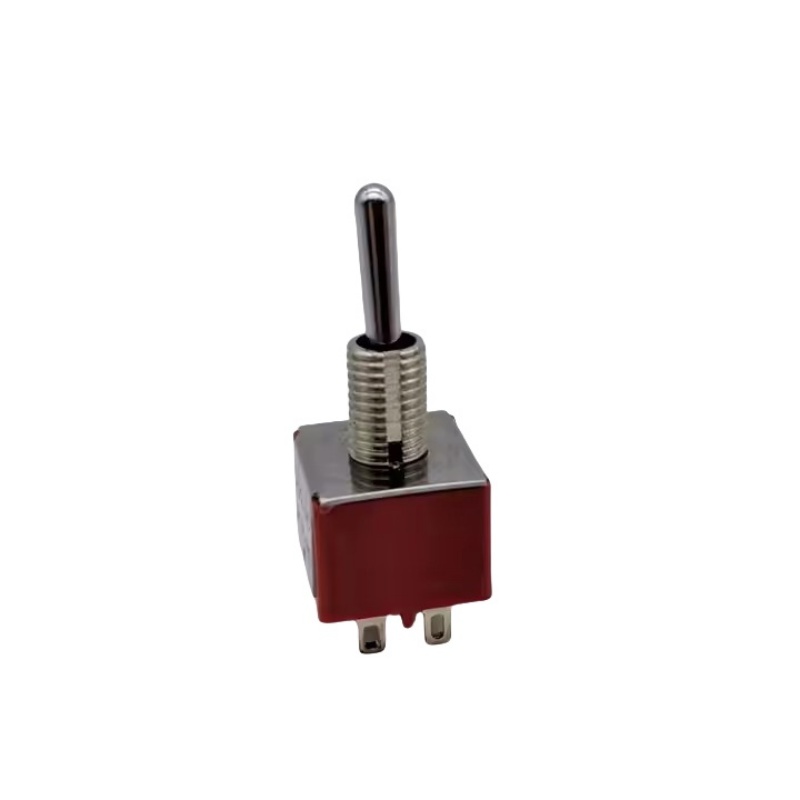

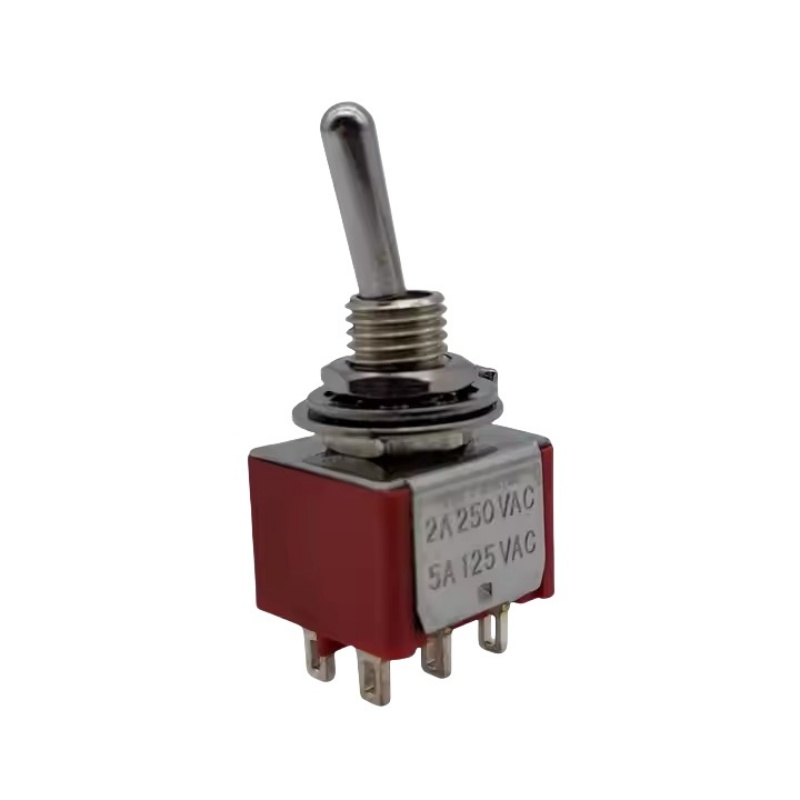

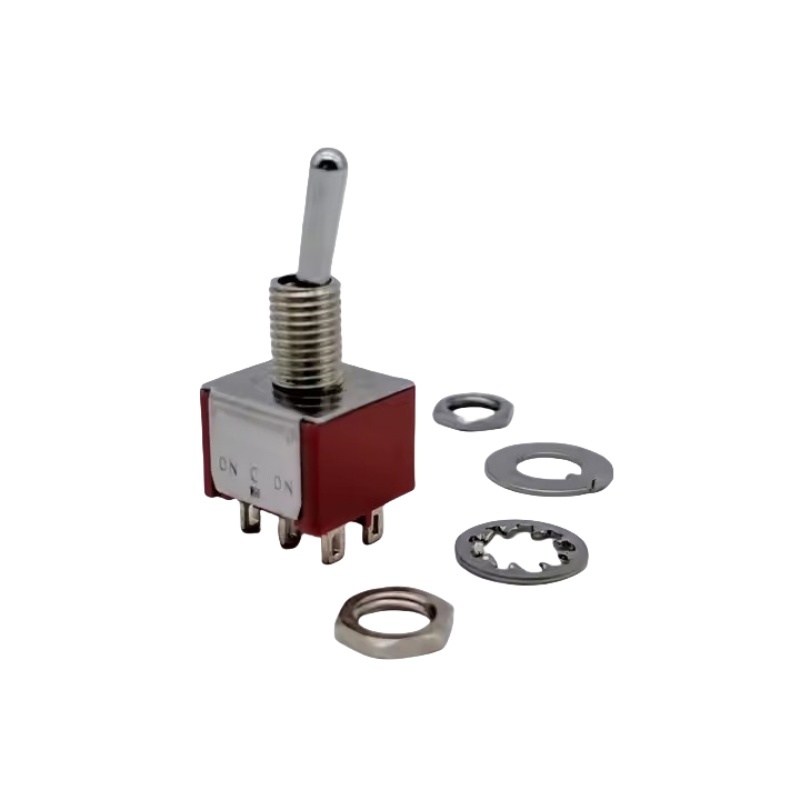

Product Images:

FAQ

1. What circuit type, pole and pin does this switch have?
It is DPDT (Double Pole Double Throw) type, 2 poles and 6 pins, with standard ON-ON function.

2. What is the panel mounting size and terminal options?
The panel mounting hole is 6mm; it supports solder terminal and PC terminal two types.

3. What are the voltage and current ratings?
Two specifications: 5A 125VAC and 2A 250VAC for different load circuits.

4. What are the core electrical performance parameters?
Contact resistance ≤20MΩ; insulation resistance ≥1000MΩ @500VDC; withstand 1500VAC for 1 minute.

5. What is the working temperature range?
It can operate stably from -25℃ to +85℃.

6. What about mechanical and electrical life?
Mechanical life: 40000 cycles; Electrical life: 10000 cycles.

7. What materials and plating are used for each part?
Case: UL94V-0 PPA; housing: stainless steel; actuator/bushing: brass/aluminium alloy (nickel/chrome plated); bracket: tin-plated brass; contact: copper alloy (silver/gold plated optional).

8. Does it have environmental certification and smart functions?
It has passed RoHS certification; no smart modules, it is a pure mechanical switch.

9. What main equipment is this switch suitable for?
Widely used for general electrical equipment, industrial circuits, testing instruments and electronic products worldwide.
