Our company’s piezoelectric switches have high durability, fast response, low power consumption, and compactness.Used for DIY projects of intelligent hardware development, impact sensor modules can be made, which can be programmed through a microcontroller to trigger tapping scenes (such as synchronized music rhythm and lighting control)

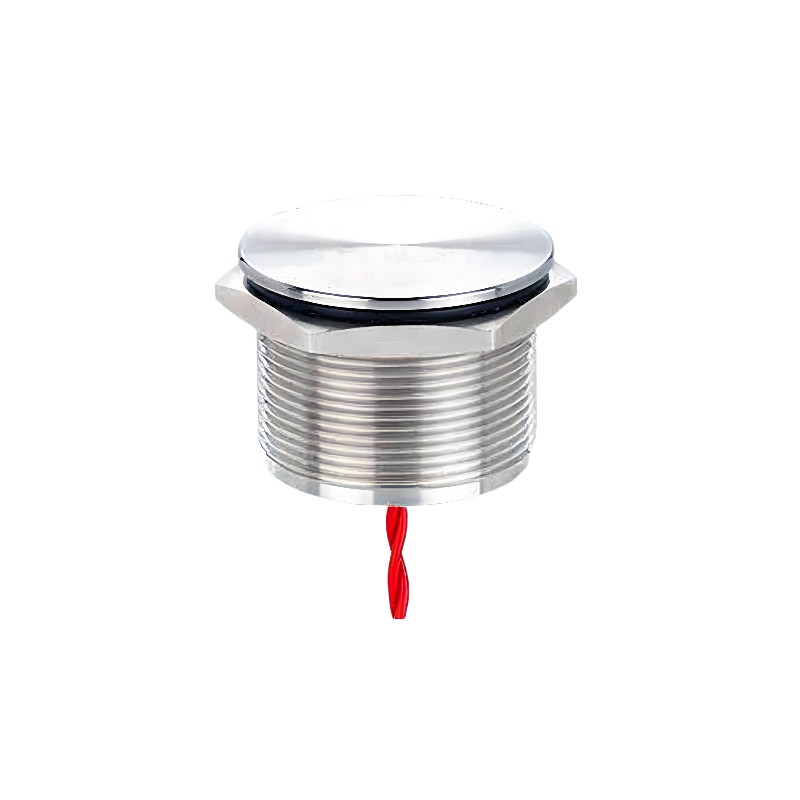

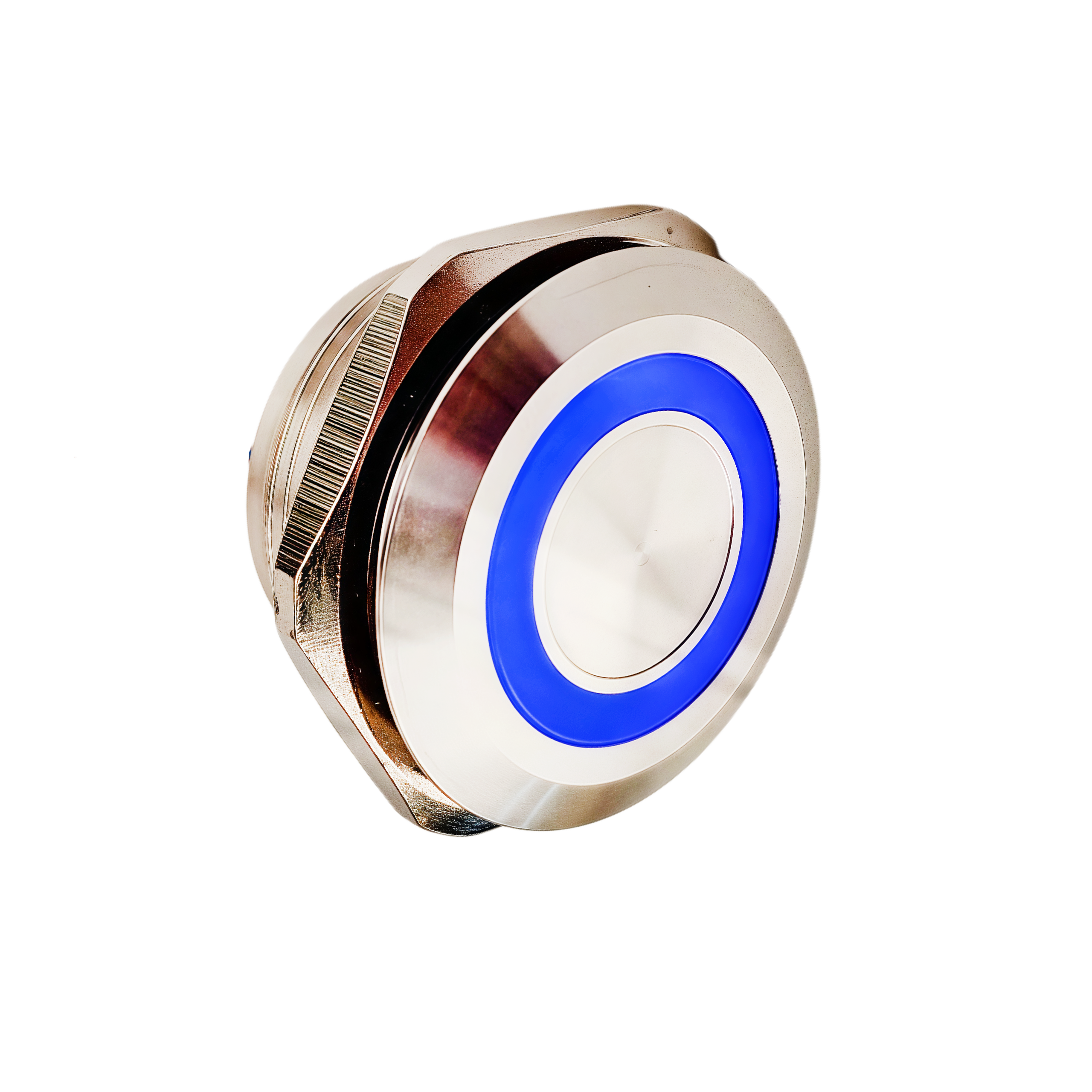

| Product Name | 30mm Alu Anodized IP68 Latching Piezo Touch Switch |
| Product Model | SCJ7P30FZ+Custom Attributes |
| Category | Piezo Switches |
| Mounting Size | 30mm |
| Operation Type | Latching |
| Bezel Material | Metal |
| Shell Material | Aluminum Oxide, Multi-color Anodized, SUS304 |
| Protection Grade | IP68, IK69 (Optional) |
| Working Temperature | -20℃ ~ 55℃ / -40℃ ~ +75℃ |
| Operating Force | 4 ~ 8N |
| Rated Voltage | 3-24V |
| Rated Current | 2A |
| Working Current | Below 20mA |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC, 50HZ/60HZ |
| Contact Material | Gold, Silver |
| Contact Configuration | 01-NC, 10-NO, 11-1NO+1NC, 22-2NO+2NC, 33-3NO+3NC, Prolongated Pulse |
| Head Type | Concave, Flat, Round, Square and other customized shapes |
| Lamp Type | Ring LED (Illuminated / Non-Illuminated) |
| LED Color | Blue, Green, Orange, Purple, Red, White, Yellow, Dual Color, TriColor |
| LED Voltage | 3V/5V/6V/12V/24V/36V/110V/220V (AC/DC Universal) |
| Shell Length | 8/9/10/12/13/16/17/17.5/18mm & Custom |
| Connection Type | Welding, Prewired |
| Wire Specification | 24AWG / 26AWG, 150mm / 300mm (Customizable) |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 1,000,000 Times |
| Total Lifespan | 40000 Hours |
| Execution Standard | CE: EN 60947-5-1:2017 |
| Application | Smart Hardware, DIY Projects, Impact Sensor, Lighting & Music Control, Industrial Equipment |

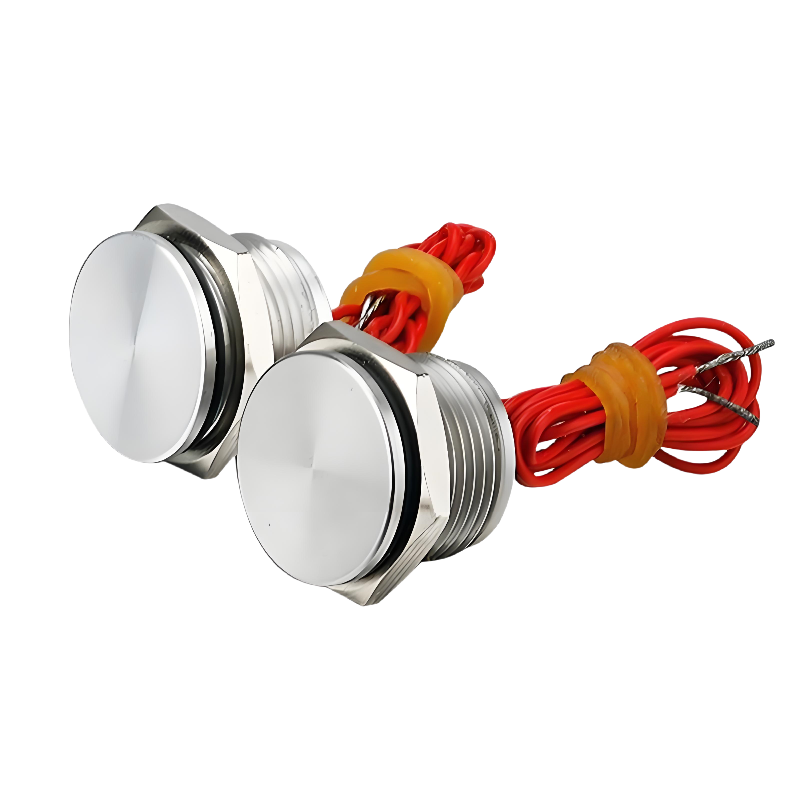

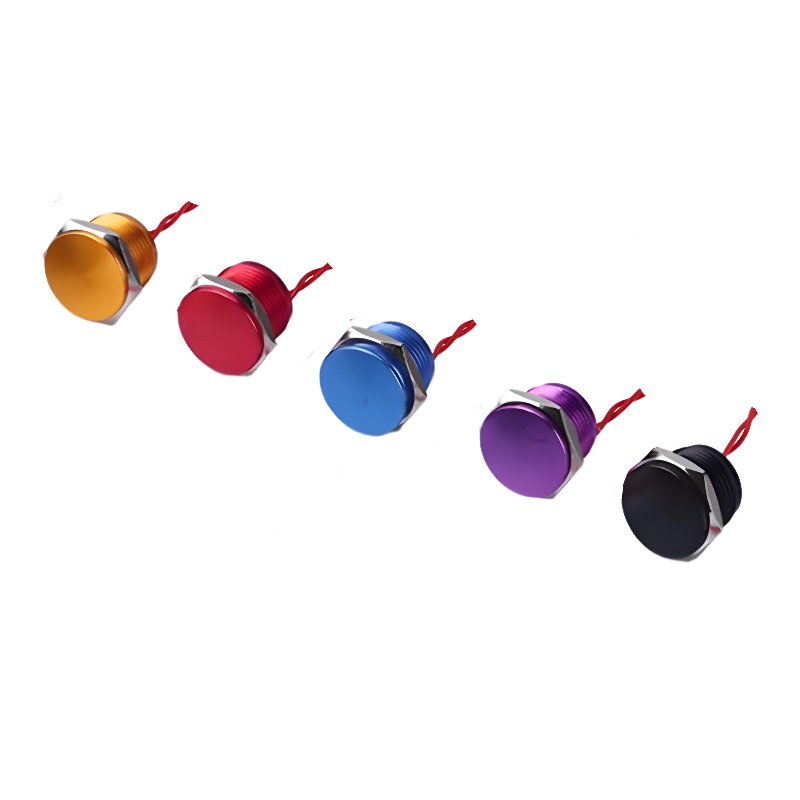

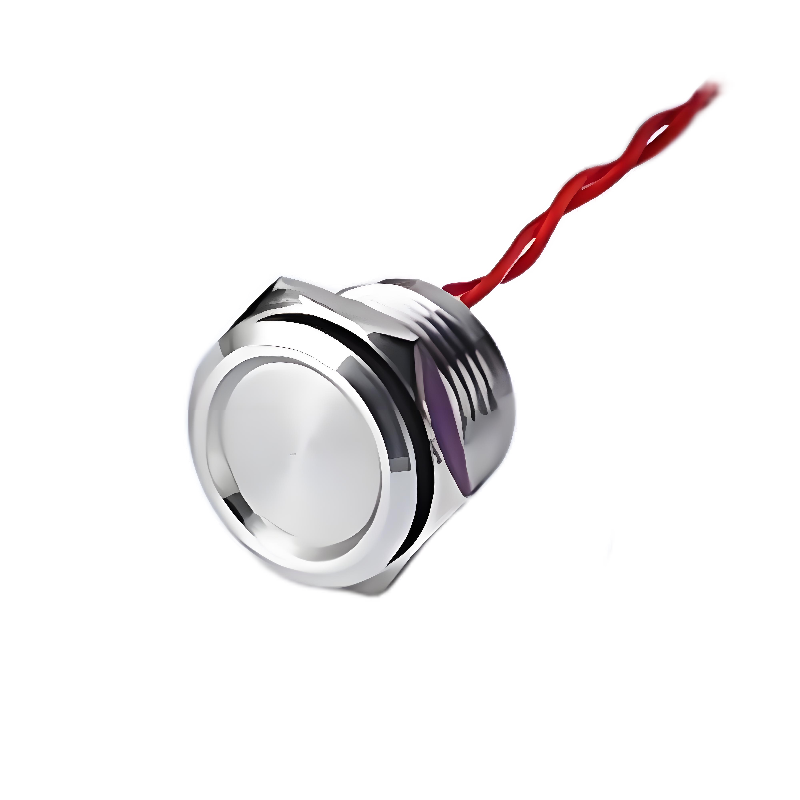

This 30mm anodized aluminum piezo touch switch adopts high-quality anodized aluminum and SUS304 materials, featuring strong corrosion resistance and wear resistance. With IP68 waterproof and dustproof performance plus optional IK69 anti-impact capability, it can operate stably in damp, dusty and impact-prone harsh environments. The latching structure locks the switch state effectively. It is rated at 2A and compatible with 3-24V circuits, covering most low-voltage control systems. Equipped with prewired harness and reserved welding terminals, the wiring is flexible for different installation demands. Gold and silver contacts ensure stable conduction and long service life. The product has two temperature options and complete electrical indicators, with 1 million mechanical and electrical cycles and 40000-hour total lifespan. It supports rich customization on appearance, lights and contacts, and complies with CE international standards. With fast response and low power consumption, it can cooperate with single-chip microcomputers to realize impact sensing, music rhythm and lighting linkage functions, which is an excellent choice for smart hardware development, electronic DIY and industrial control equipment.
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
1. What is the installation size and operation type of this piezo switch?
The standard mounting hole is 30mm, and it adopts latching operation mode.
2. What protection levels does it support?
Standard IP68 waterproof and dustproof grade, and IK69 anti-impact level is available for upgrade.
3. What are the electrical specifications?
Rated voltage 3-24V, rated current 2A, working current below 20mA.
4. What temperature ranges and operating force does it have?
Two temperature ranges: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.
5. What contact materials and electrical performance parameters?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.

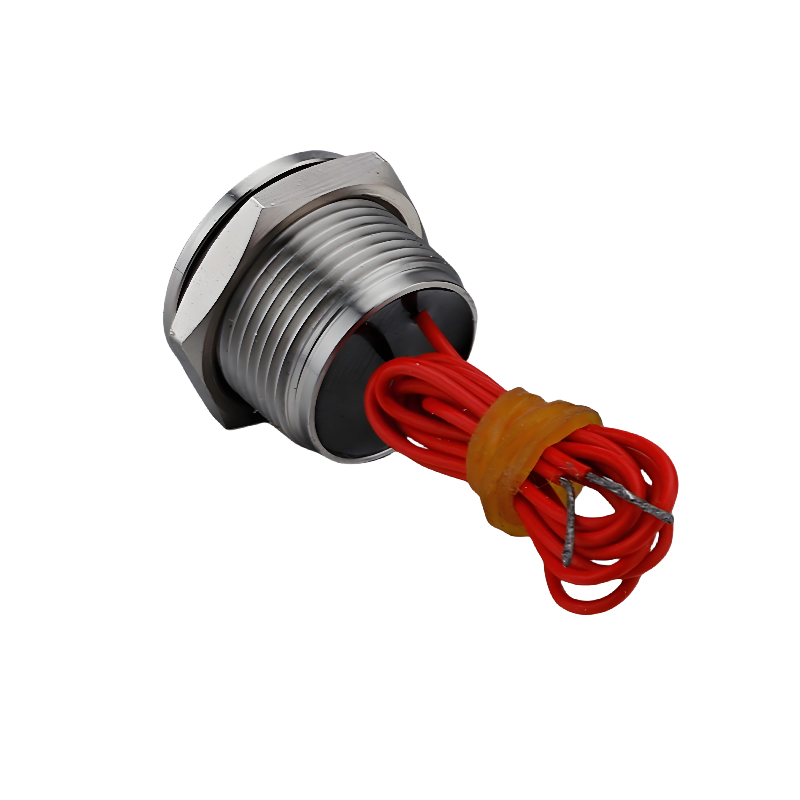

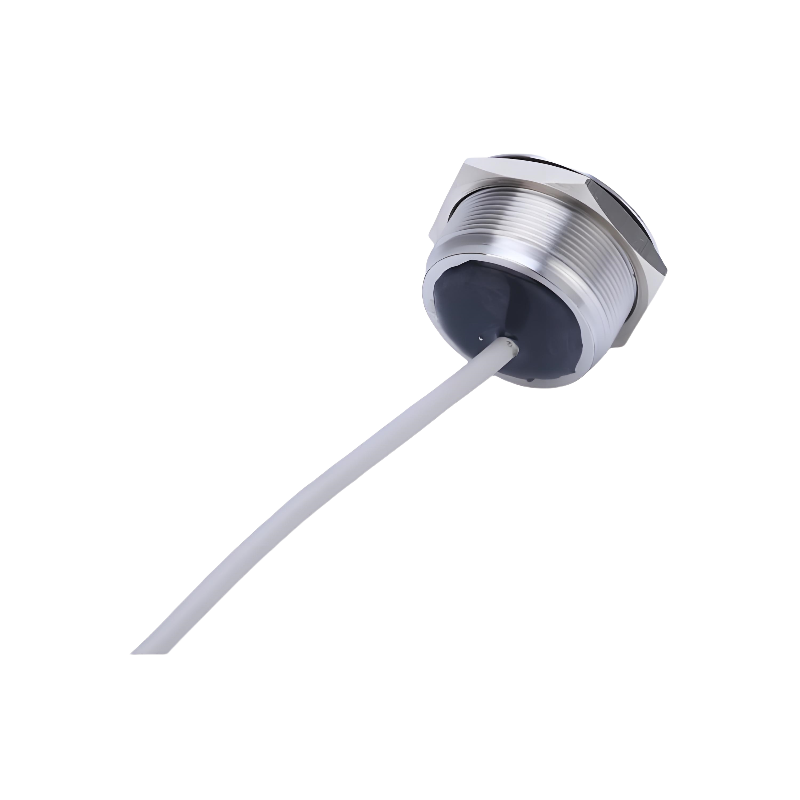

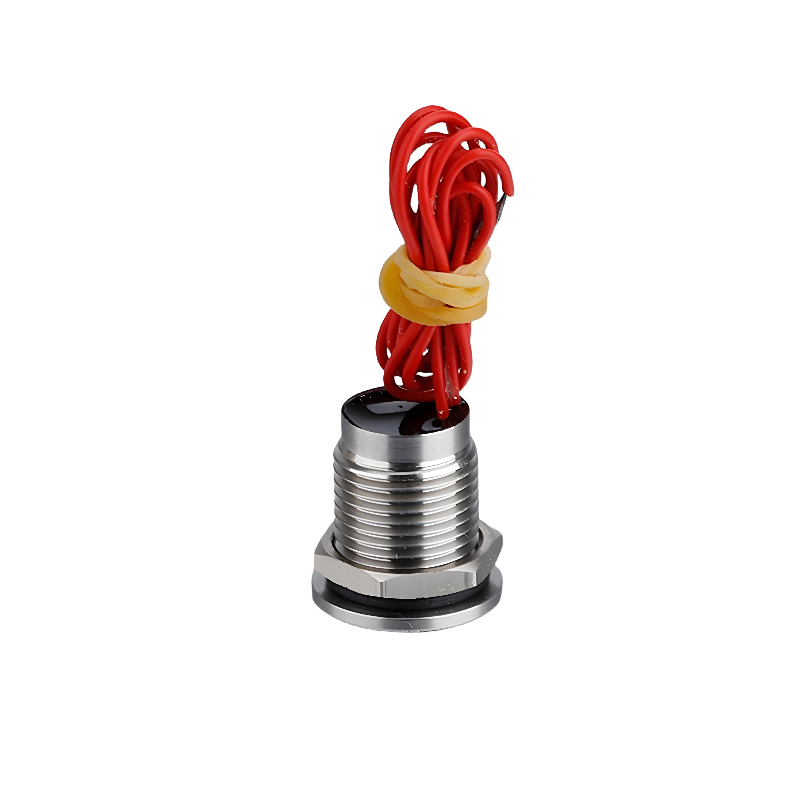

6. What wiring methods and wire specifications?
Support welding and prewired connection; wire gauge 24AWG/26AWG, standard length 150mm/300mm, customizable.
7. About the lamp and customizable items?

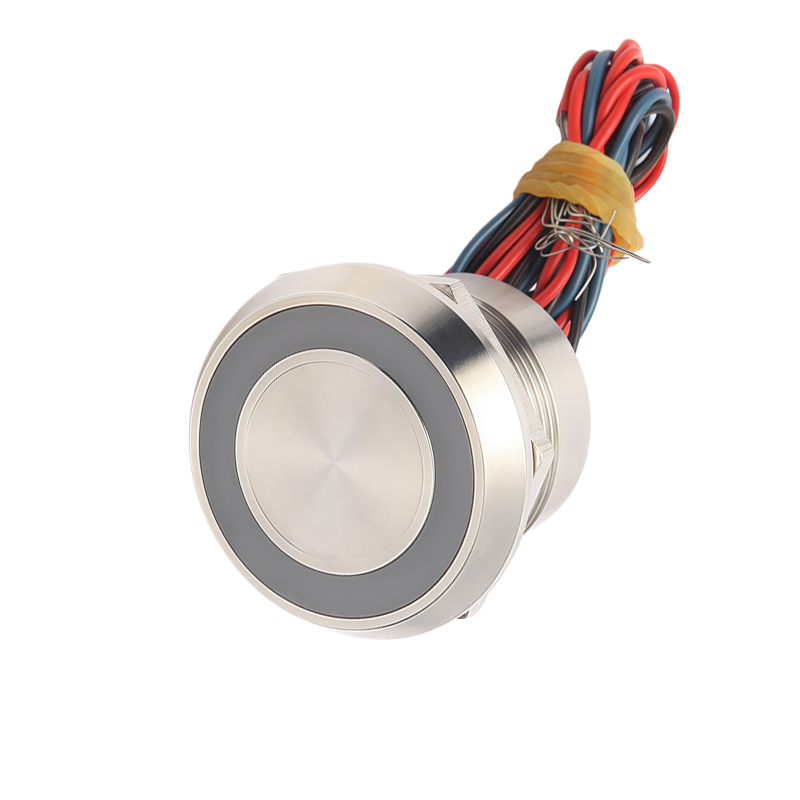

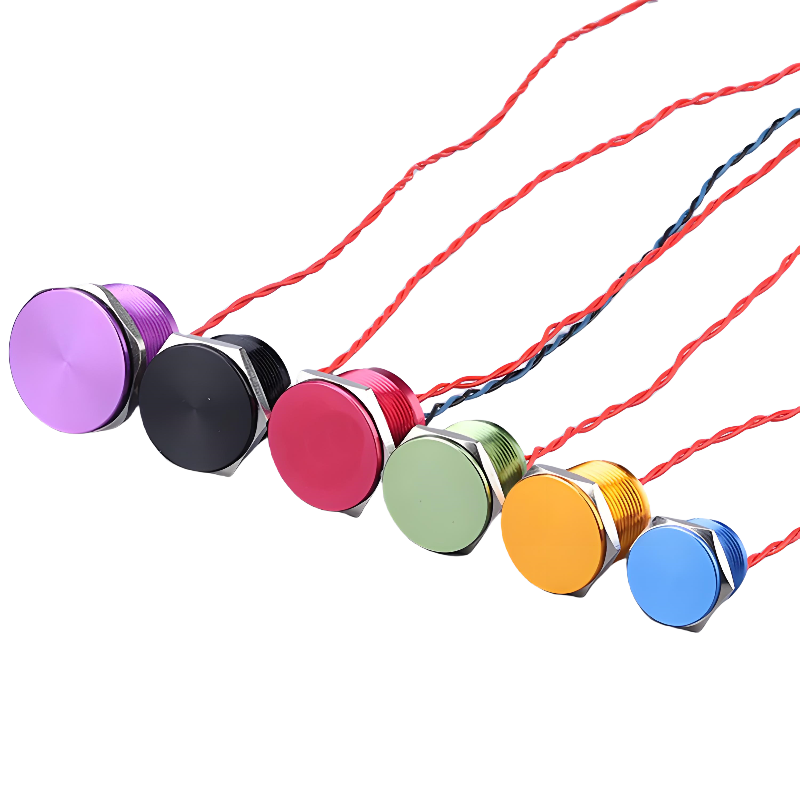

It uses ring LED with abundant colors and voltage options; head shape, shell size, contact mode and anodized color can be customized.
8. What is the service life and executive standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1:2017.
9. What are the main application scenarios?
Mainly used for smart hardware, DIY projects, sensors, lighting control and various industrial waterproof equipment.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |

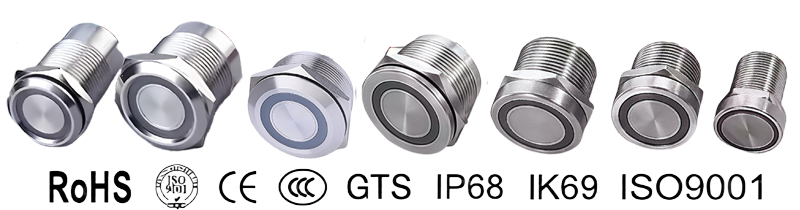

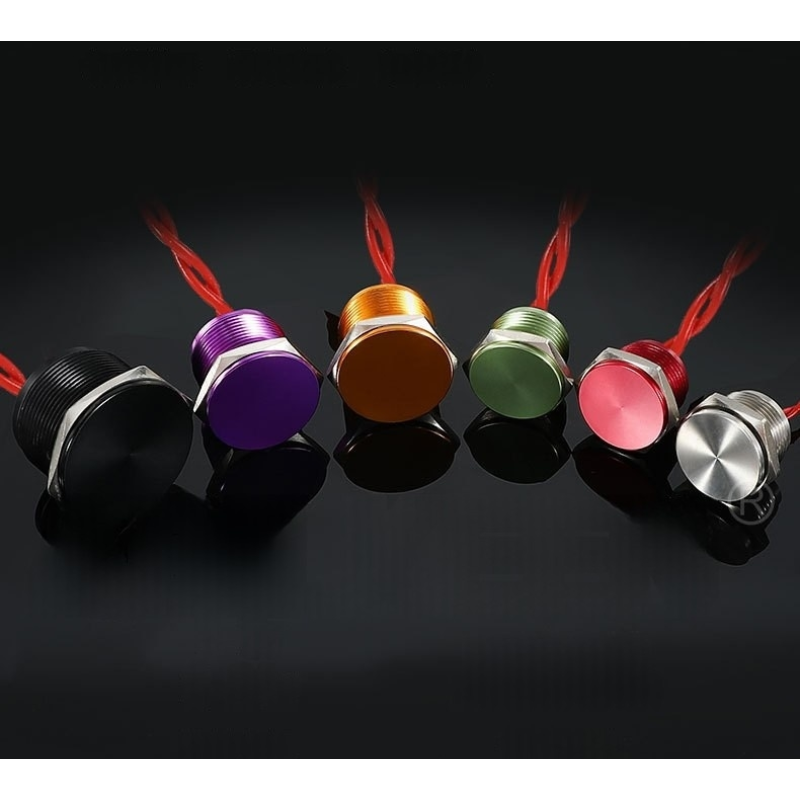

| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
