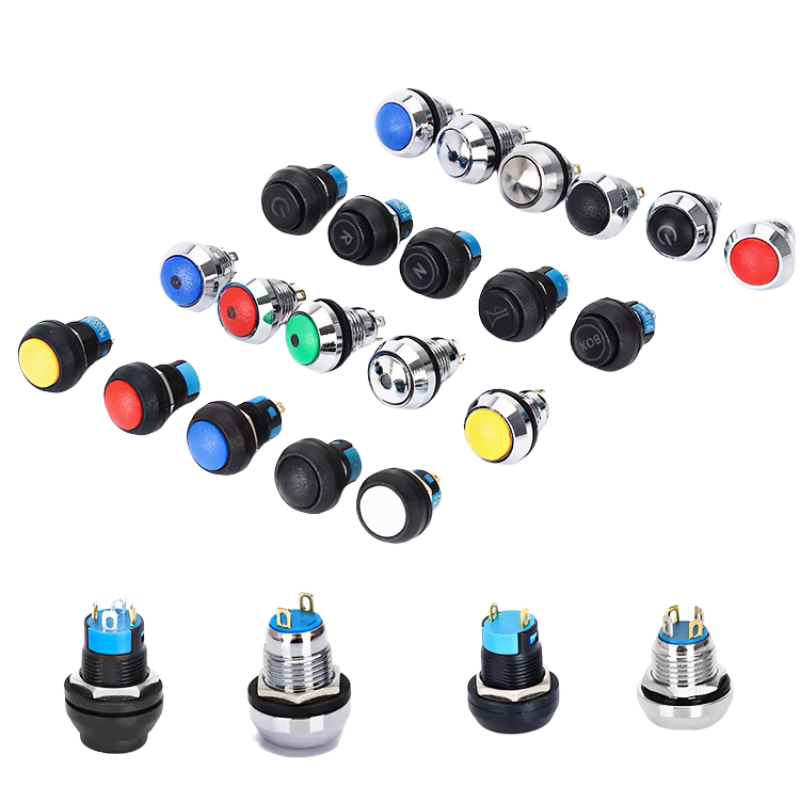

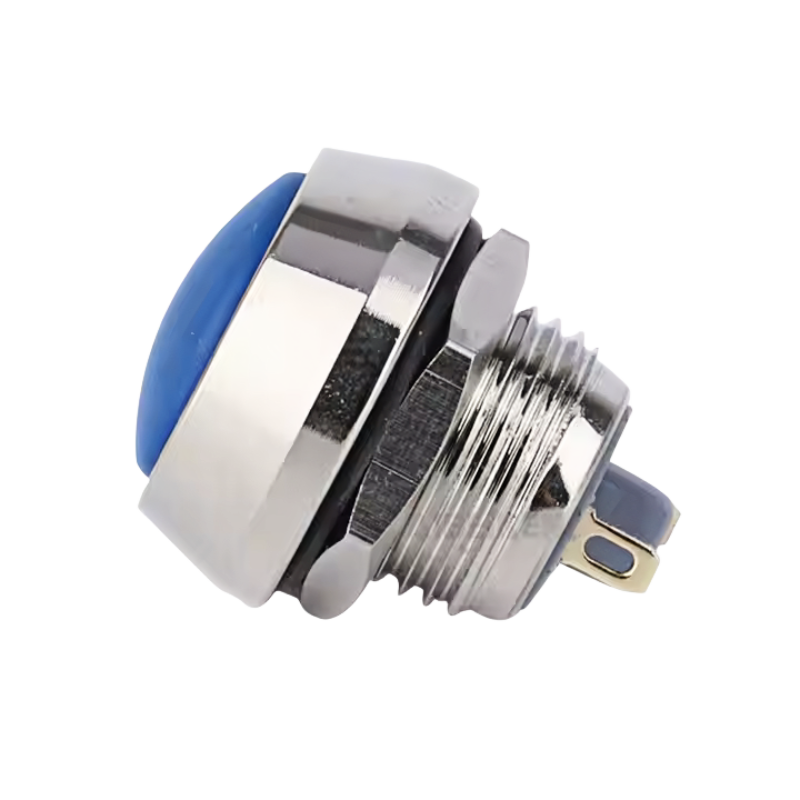

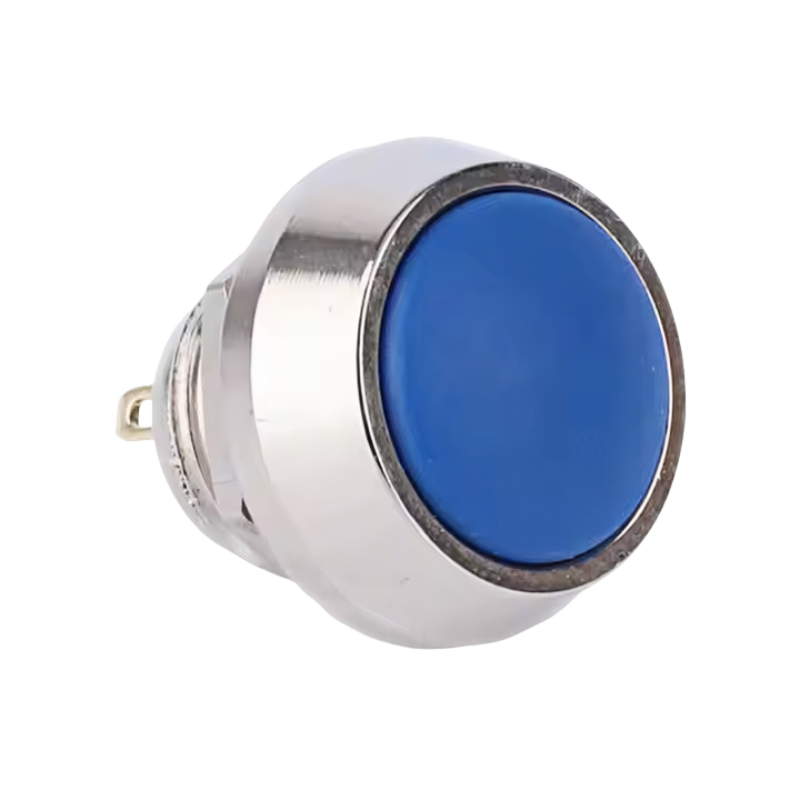

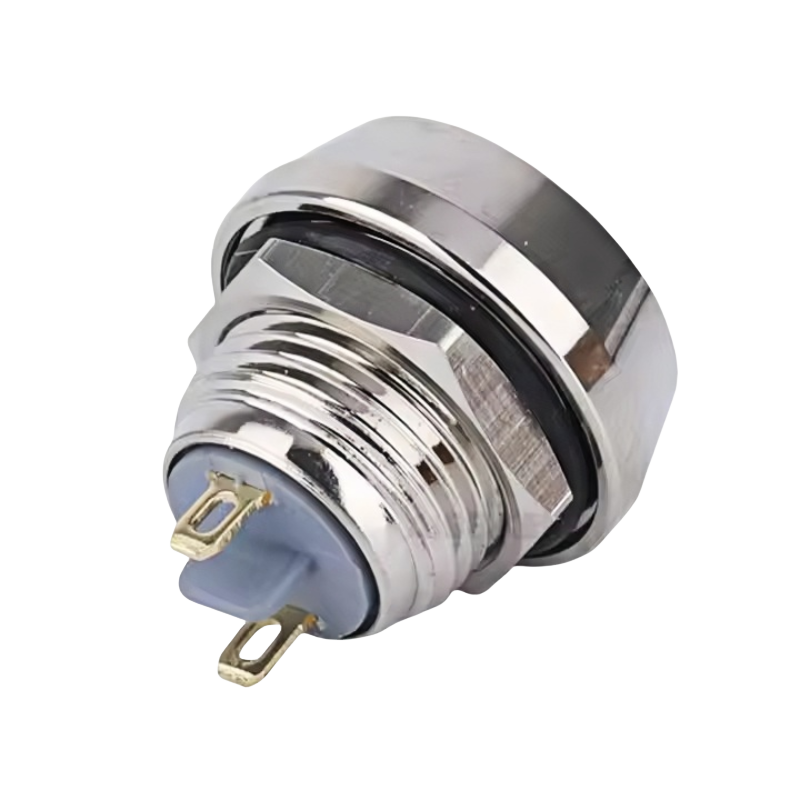

Durable 12mm domed momentary push button switch with nickel-plated brass and stainless steel construction. Rated at 2A, featuring an IP65 protection rating for dust and water resistance. Designed for electronic control systems, industrial machinery, and control panels. No LED indicator, ideal for precision applications requiring reliable performance.
|
Mounting Hole
|
12mm
|
|
Operation Type
|
Momentary/Latching
|
|
Switch Combination
|
1NO1NC/1NO/1NC
|
|
Head Type
|
Flat head
|
|
Terminal type
|
Solder Terminal
|
|
Enclosure Material
|
Brass nickel
|
|
Delivery Days
|
3-7 days after payment received
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
