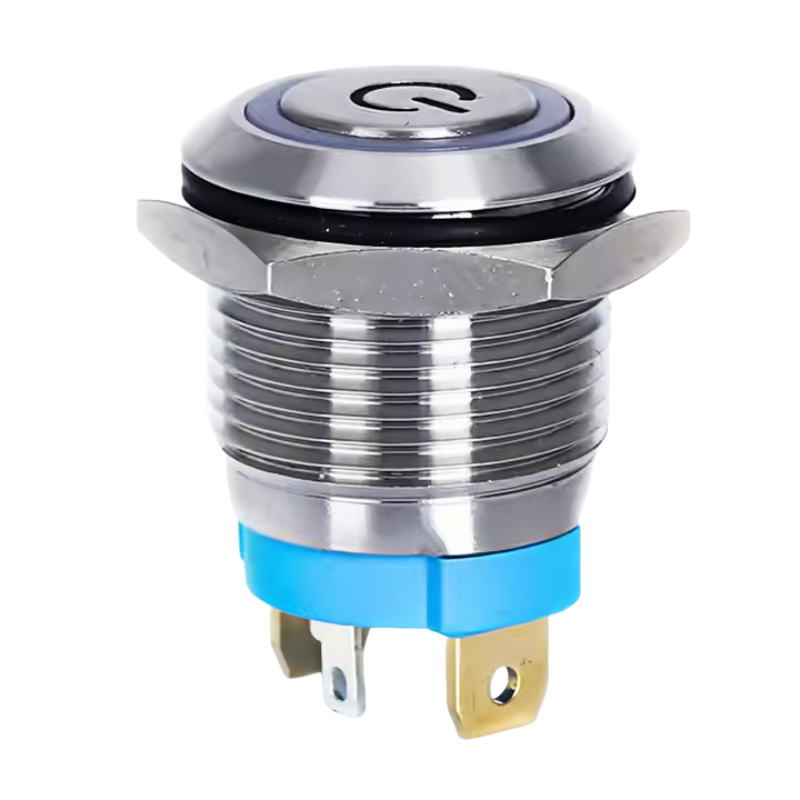

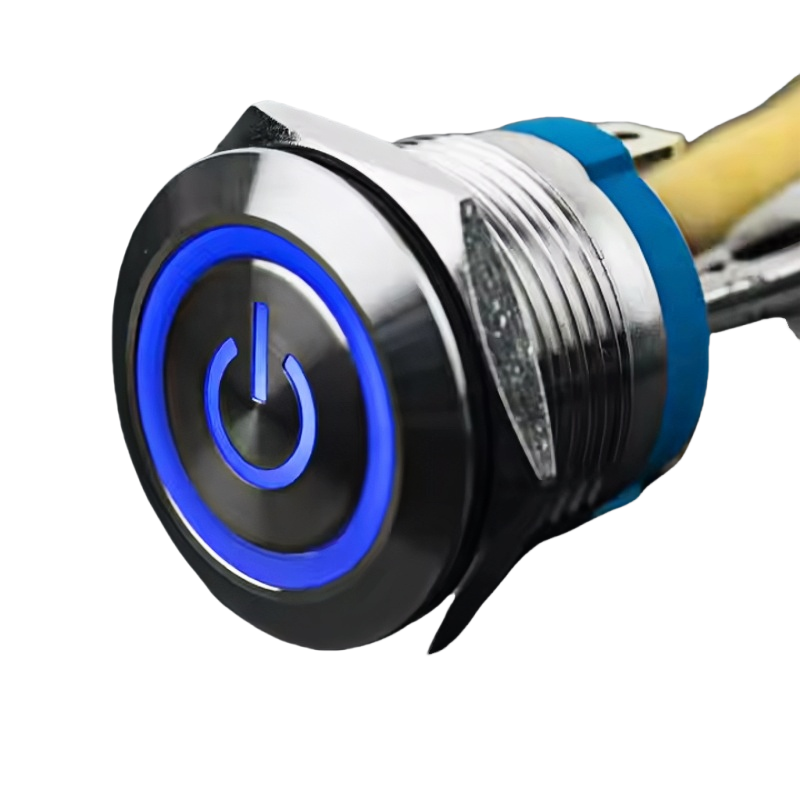

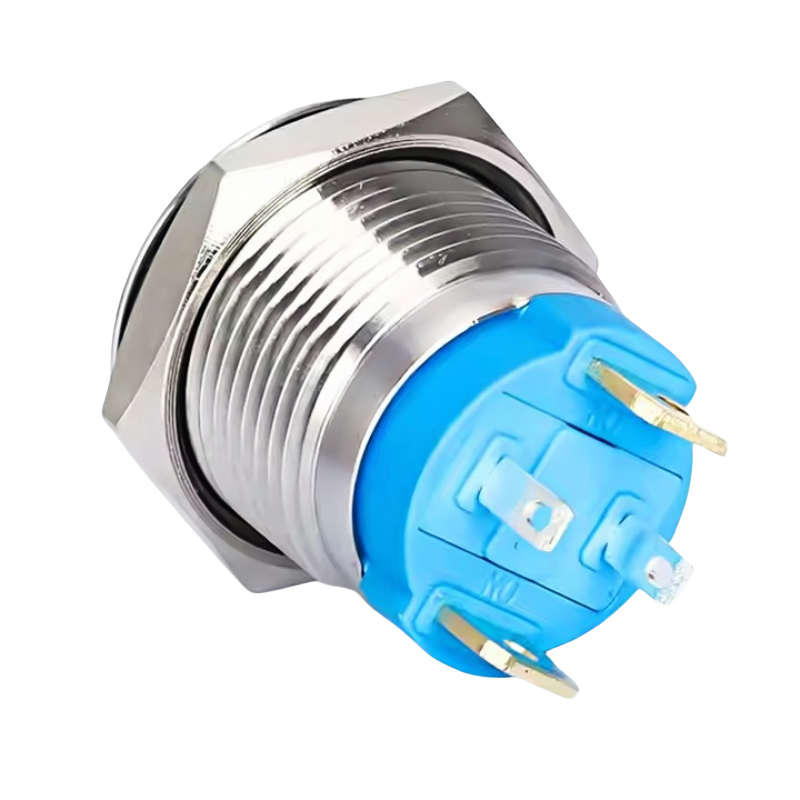

Heavy Duty 18A 16mm Dia Momentary Blue Led and Power logo Illuminated 12v Metal Push Button Switch

Durable 12V metal push button switch rated for heavy-duty 18A applications. Features momentary action, blue LED illumination, and a stylish power logo for clear visual feedback. Ideal for automotive, machinery, and industrial control panels.

Enquiry
SKU:SCJ7M16FZ4Category:
Description
Mounting Hole
16mm
Operation Type
Momentary
Switch Combination
1NO
Head Type
Flat head
Terminal type
Solder Terminal
Enclosure Material
Brass nickel
Delivery Days
3-7 days after payment received
Contact Resistance
50 mΩ max
Insulation Resistance
1000MΩ Min
Dielectric Intensity
2000VAC
Operating Temperature
-20°C ~+55°C

Attributes
Connection

Contact Material

Operation of Contact

,

PIN Material
