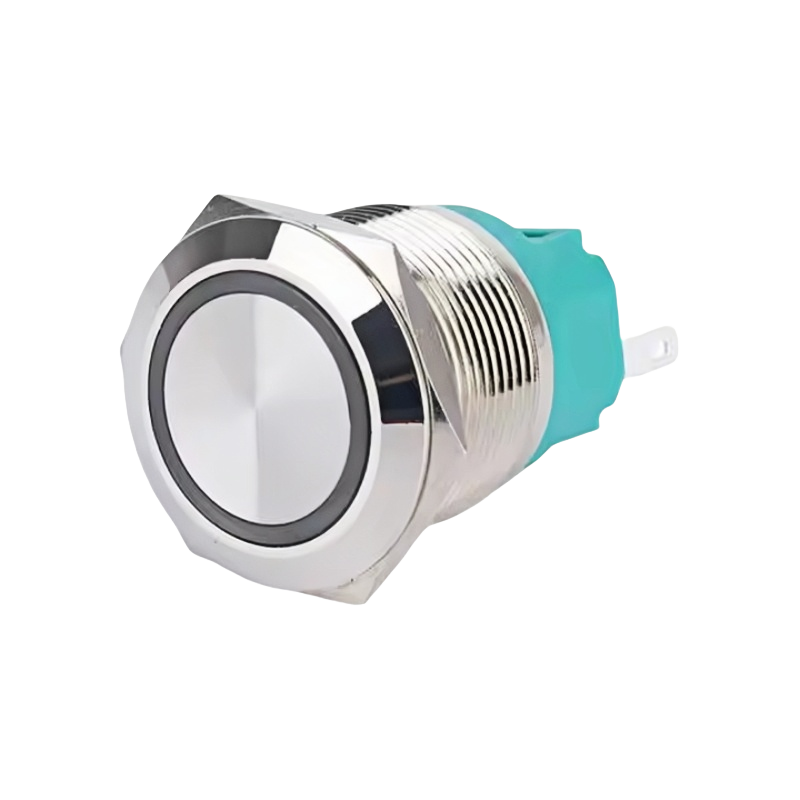

This 19mm illuminated push button switch features a waterproof design, reset lock function, and built-in power symbol lighting. Made of durable metal with an auto-return mechanism, it’s ideal for automotive applications, providing reliable performance and clear visual indication. Perfect for car installations where safety and style matter.
Mounting Hole | 19mm |
Operation Type | Momentary/Latching |
Switch Combination | 1NO1NC |
Head Type | Flat head |
Terminal type | Pin Terminal |
Enclosure Material | Nickel plated brass / Stainless steel |
Delivery Days | 3-7 days after payment received |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
This 19mm waterproof reset lock metal push button switch is specially designed for automotive modification and vehicle control panels. Built-in power symbol LED provides clear working status indication. Support momentary self-reset and latching self-locking two working modes to meet different circuit control needs. Nickel plated brass and stainless steel housing features anti-corrosion, anti-rust and durable performance. Stable electrical parameters ensure safe and reliable use in vehicle circuits, adapting to complex temperature environments.
1. What is the mounting size?
Standard 19mm mounting hole diameter.
2. Does it have power symbol LED light?
Yes, power symbol LED illuminated for clear indication.
3. Support reset and lock function?
Yes, momentary reset and latching lock optional.
4. What material is the shell?
Nickel plated brass and stainless steel optional.
5. Is it suitable for car modification?
Absolutely, professionally designed for automotive switch kits.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
