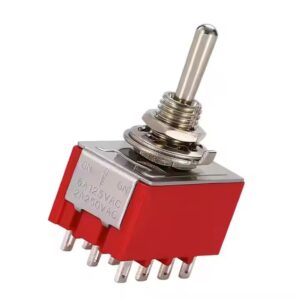

In today’s demanding industrial environments, control system reliability can’t be compromised. The 4PDT 12-Pin Toggle Switch represents a breakthrough in multi-circuit switching technology, offering engineers and system designers unparalleled control capabilities in a compact, durable package. Unlike standard switching solutions, our industrial-grade toggle switch delivers precise multi-circuit management while withstanding the toughest operating conditions.
Why Engineers Trust 4PDT 12-Pin Toggle Switches
- Multi-Circuit Mastery
Unlike standard SPDT switches, this 4PDT (Four Pole Double Throw) configuration controls four independent circuits simultaneously. Its 12-pin design supports complex wiring layouts—ideal for HVAC control panels, medical devices, and audio mixing consoles where signal routing demands precision.
- Extreme Environment Resilience
Operating seamlessly from -40°C to +85°C, the switch thrives in environments where temperature fluctuations cripple conventional models. Whether embedded in offshore wind turbines or desert-based solar farms, it resists thermal stress and maintains conductivity.
- Longevity Without Compromise
Rated for >10,000 mechanical cycles, the toggle mechanism withstands high-frequency adjustments. This durability reduces maintenance costs in applications like production line machinery or laboratory equipment requiring daily reconfiguration.
- Certified Safety Assurance
Compliance with IEC 60669 and UL 61058 ensures protection against short circuits, overloads, and arc faults. For OEMs targeting EU or North American markets, this pre-certification accelerates product launches.
Technical Edge
While many brands offer multi-pole switches, ours prioritizes space efficiency without sacrificing performance. The MTS-403 model’s compact footprint (23mm x 15mm) allows installation in densely packed control boards—critical for IoT devices and portable medical tools.
Key Specifications:
– Current Handling: 5A resistive, 3A inductive loads
– Contact Material: Silver alloy for low oxidation and stable conductivity
– Terminal Type: Quick-connect solder lugs for rapid assembly
For equipment manufacturers and system integrators requiring dependable multi-circuit switching, our 4PDT 12-Pin Toggle Switch delivers unmatched performance. Its rugged construction and precise operation make it ideal for industrial control applications.
Upgrade your control systems today – contact us for technical specifications and pricing details!
