Toggle switches with locking mechanisms are critical components for industrial control systems, offering secure and reliable operation in high-vibration or high-risk environments. This guide provides a professional overview of wiring the 3-Pin Toggle Switch with Locking Mechanism, emphasizing its durability, safety features, and compatibility with commercial applications.

Understanding the 3-Pin Toggle Switch with Locking Mechanism

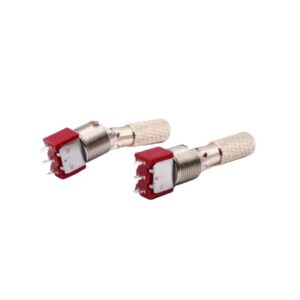

The industrial-grade red toggle switch features a robust PPA construction, rated for 5A 125VAC/2A 250VAC, and a 40,000-cycle mechanical lifespan. Its ON-OFF-ON function allows bidirectional control, while the locking mechanism prevents accidental actuation—ideal for machinery, marine panels, or automotive systems requiring fail-safe operation.

Step-by-Step Wiring Instructions

1. Safety Precautions: Disconnect power sources and verify voltage compatibility (125VAC max).
2. Terminal Identification: Identify the three solder terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
3. Prepare Wires: Strip insulation from wires, ensuring clean contact points.
4. Solder Connections: Attach the load wire to the Common terminal. Connect NO/NC terminals to desired circuits based on ON-OFF-ON functionality.
5. Secure Locking Mechanism: Engage the lock to fix the toggle position, preventing unintended switching during operation.
6. Test Functionality: Reconnect power and validate switch operation across both ON positions.

Key Advantages for Industrial Use

• Durability: PPA housing resists heat, chemicals, and mechanical stress, ensuring reliability in harsh environments.
• High-Cycle Performance: 40,000 cycles minimize maintenance needs for heavy-duty equipment.
• Locking Feature: Eliminates accidental toggling, critical for safety-critical systems like emergency shutoffs or conveyor controls.

Applications

• Industrial Machinery: Motor control, conveyor belt systems, or CNC equipment.
• Marine Panels: Navigation lighting, bilge pumps, or engine start/stop controls.
• Automotive Systems: Auxiliary lighting, winch controls, or power distribution units.

Why Choose Our 3-Pin Toggle Switch?

Our toggle switch combines precision engineering with industrial-grade materials, delivering unmatched performance for B2B clients. The red housing enhances visibility in low-light conditions, while solder terminals ensure stable connections under vibration.

For bulk orders, custom configurations, or technical support, visit our website to explore how the 3-Pin Toggle Switch with Locking Mechanism can optimize your commercial projects. Contact our team today to discuss your requirements and leverage our expertise in high-performance electrical components.
