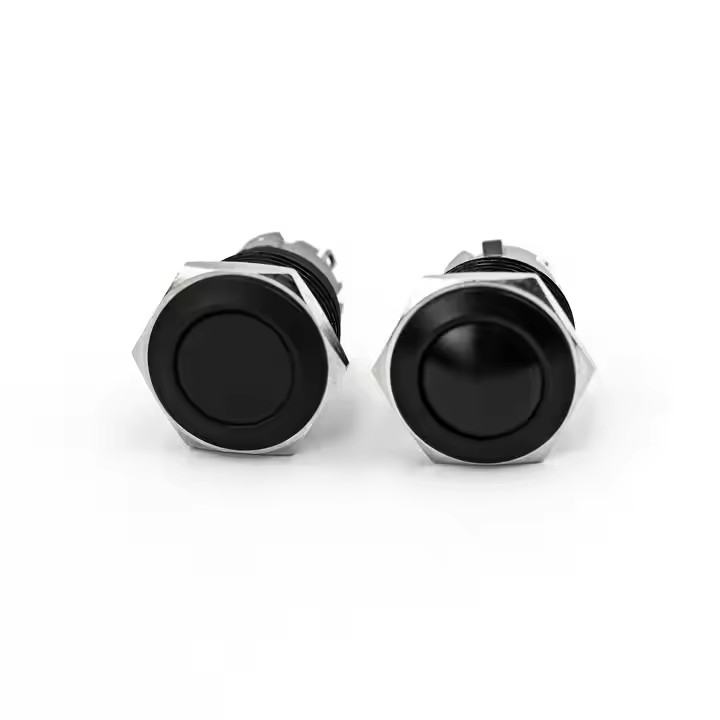

10mm Flat Round 1NO1NC Nickel Plated Brass Momentary Metal Push Button Switch Mini

This mini 10mm flat round push button switch, made from nickel-plated brass, offers both normally open (1NO) and normally closed (1NC) contact configurations. Designed for momentary action, it is ideal for precise control in various electronic applications where space is a premium. The robust construction ensures durability while the compact design makes it perfect for tight installations.

Enquiry
SKU:SCJ7M10ZFCategory:
Description
Mounting diameter
12mm 16mm 19mm 22mm 25mm 30mm
Head shape
Flat head
Switch Combination
1NO
Operation type
Momentary
Rated Current
2A 250VAC
Illuminating type
Non-illuminated Ring LED
Illuminating color
Red,green,blue,yellow,orange,white,purple
Lamp voltage
2V/3V/6V/12V/24V/36V/110V/220V/250V
Shell material
Brass nickel,Stainless steel,aluminum oxide
Contact Resistance
50mΩ max
Insulation Resistance
2000VAC
Dielectric Intensity
2000VAC

Attributes
Connection

Head Type

,

PIN Material

Operation of Contact

,

Position

,
