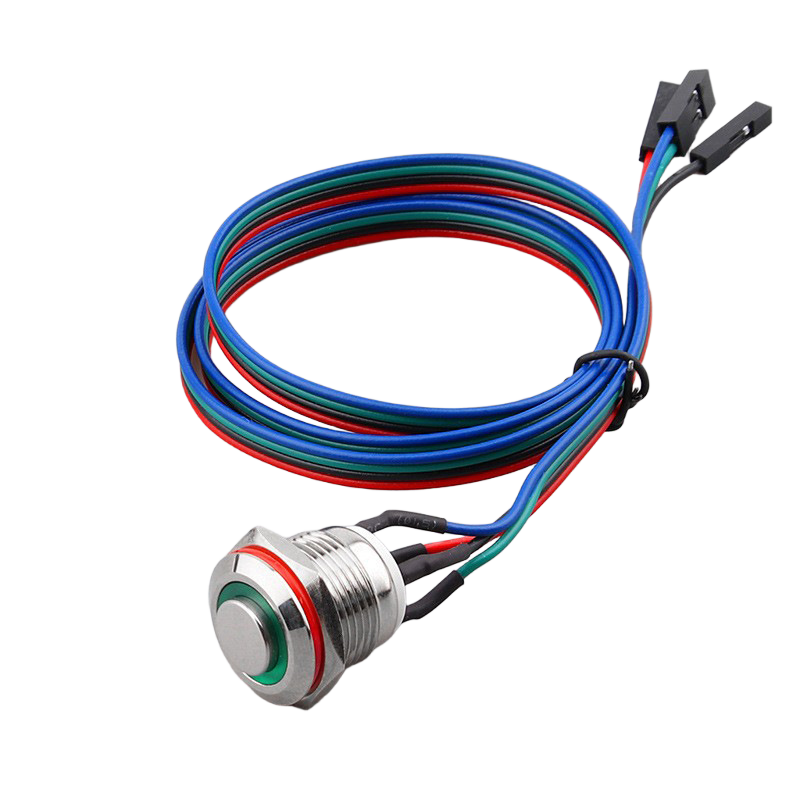

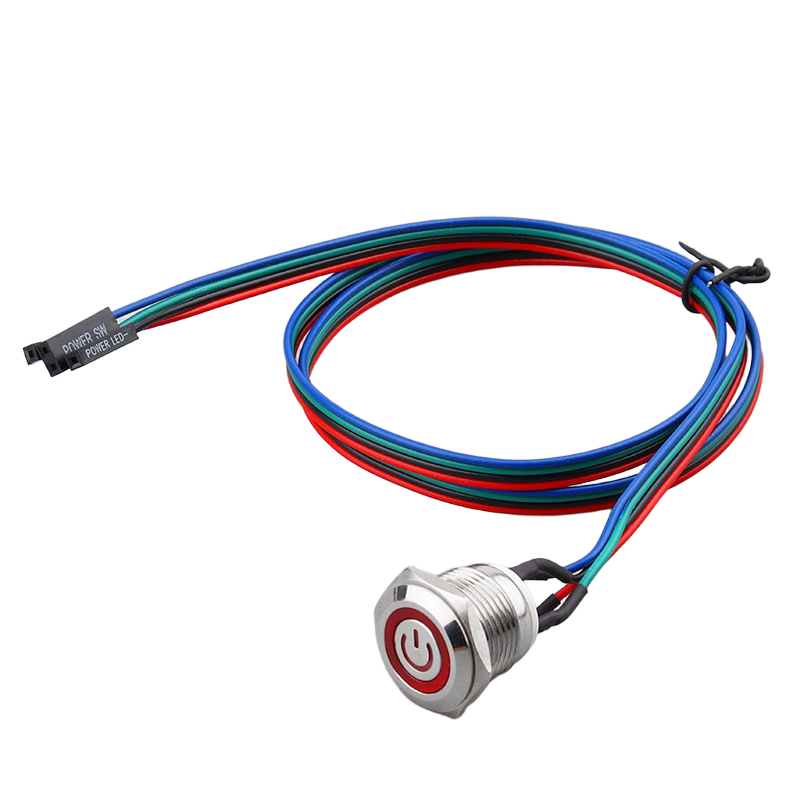

This 12/16mm waterproof metal button switch features momentary action, explosion-proof construction, and a clear power symbol on its illuminated ring. Ideal for hazardous environments requiring reliable power control.

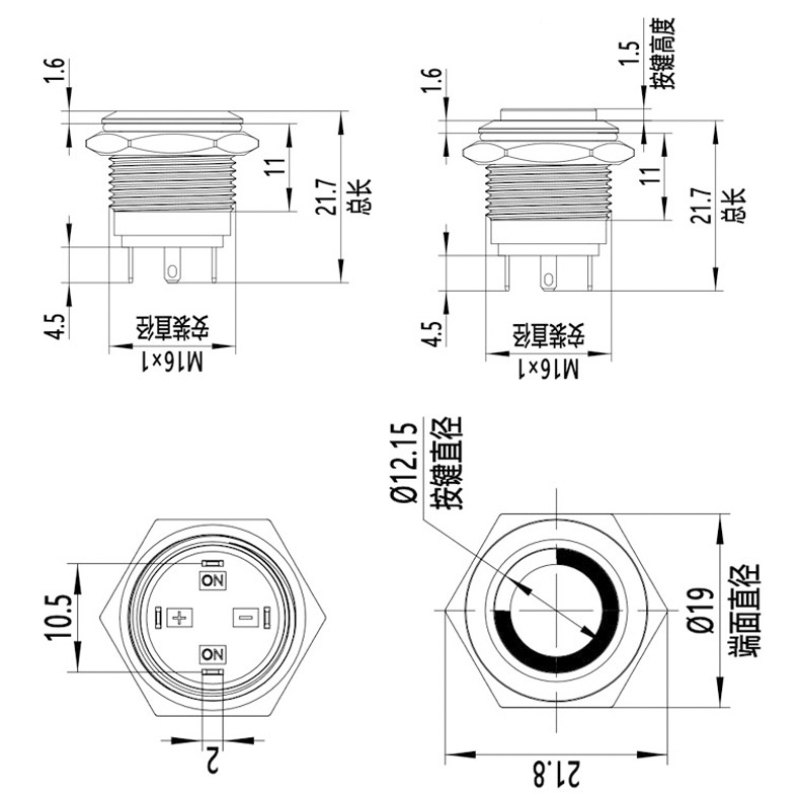

| Mounting Size | 12mm / 16mm |
| Protection | Waterproof & Explosion-Proof |
| Light Type | Ring / Ring + Power / Power Symbol |
| LED Color | Red, Green, Blue, White, Yellow |
| Operation Type | Momentary (Self-Reset) |
| Head Type | Flat / High Round |
| Contact Type | NO (Normally Open) |
| Contact Material | Gold Plated |
| PIN Material | Gold Plated |
| Shell Material | Stainless Steel / Nickel Plated Brass / Black Aluminum Oxide |
| Bezel | Metal |
| Connection | Welding |
| Application | Hazardous Environment, Industrial Control, Power System |
This 12/16mm waterproof explosion-proof metal push button switch is specially designed for hazardous and harsh working environments. It provides reliable explosion-proof and waterproof performance to ensure safe operation in special conditions. The ring LED with power symbol offers clear and intuitive status indication. Gold-plated contacts and pins deliver excellent conductivity and long service life. It supports flat and high round head styles for flexible installation needs.
1. What sizes are available?
It supports 12mm and 16mm standard mounting sizes.
2. Is this switch explosion-proof & waterproof?
Yes, it features both explosion-proof and waterproof construction.
3. Does it have LED power symbol?
Yes, it has ring LED with power symbol indication.
4. What operation type does it use?
It uses momentary (self-reset) operation type.
5. Is this switch suitable for hazardous environments?
Yes, it is specially designed for hazardous and explosive environments.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Type | |
| Lamp | |
| Lamp Type | |
| LED Color | |
| Operation of Contact | |
| PIN Material | |
| Shell Material |
