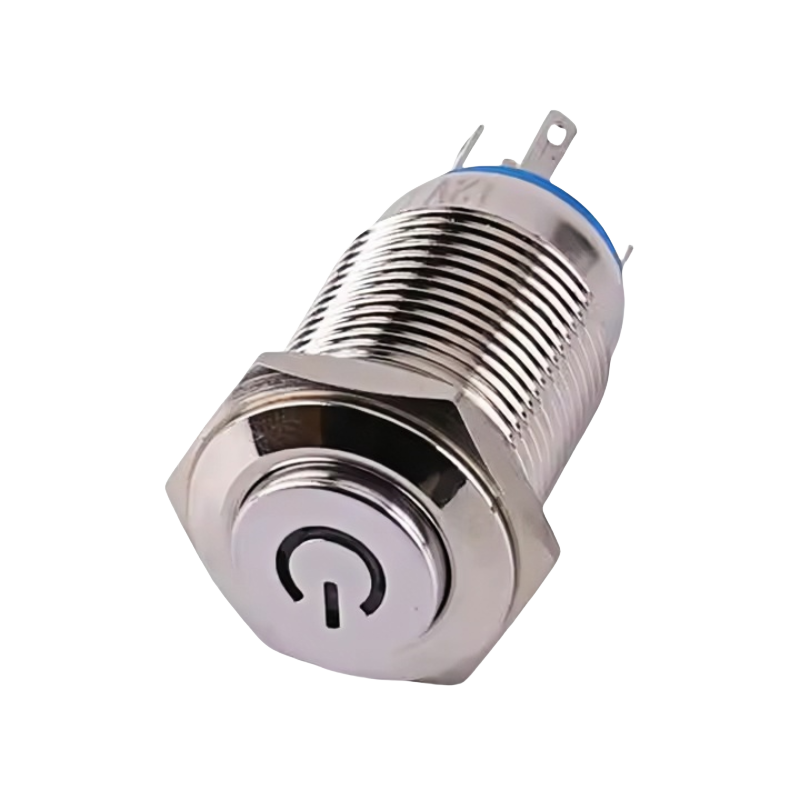

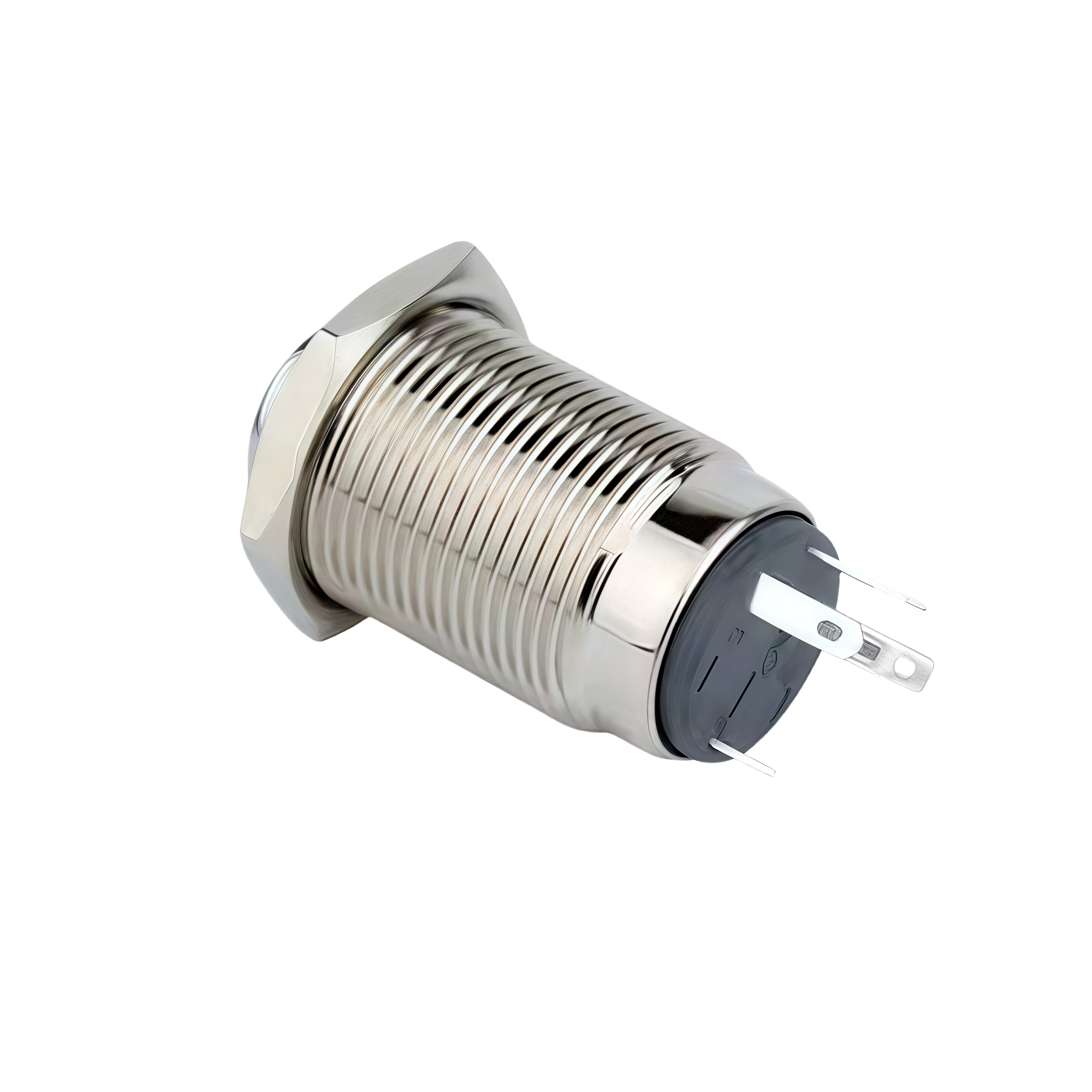

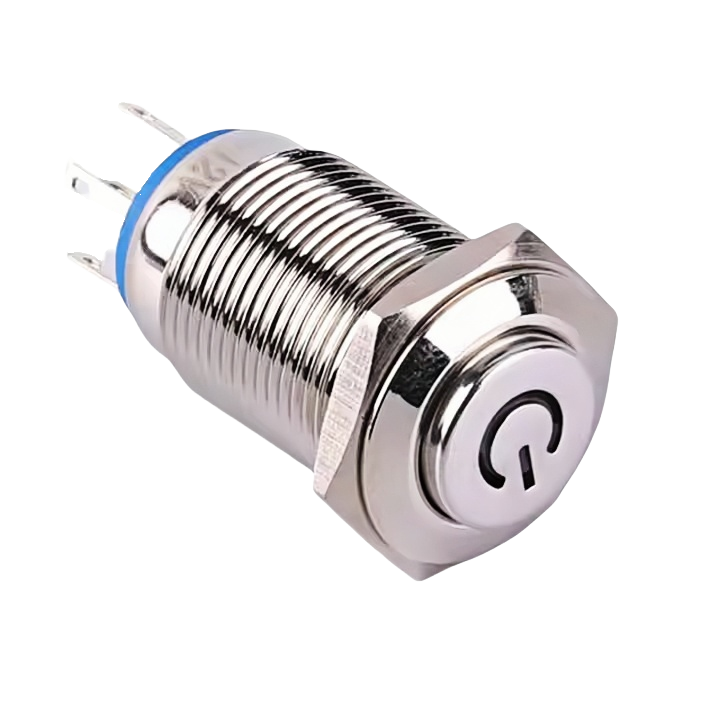

12mm 12V Power Illuminated Momentary Illuminated Mini 4pin Reset Metal Push Button Electric Power Switch

This 12mm 12V Illuminated Mini Push Button Switch combines compact design with robust functionality. Featuring a 4-pin terminal and metal housing, it offers durability for industrial and automotive applications. The illuminated LED provides clear visual feedback, ideal for low-light environments or user interface customization (e.g., red/blue/green). Designed as a momentary reset switch, it delivers precise on/off control with tactile feedback. Its 12V voltage rating and 3A current capacity ensure reliable performance in electronic systems. The IP67-rated construction safeguards against dust and water ingress, making it suitable for both indoor and outdoor use. Perfect for power control in devices like motor controllers, security systems, or custom electronics.

Enquiry
SKU:SCJ7M12HZF2Category:
Description

Key Features

  • Full size optional:12/16/19/22/25/28/30/40mm mounting hole
  • Multiple head style: Flat / High / Domed Head for different panels
  • Built-in power indicator LED, red blue green multi-color optional
  • 12V standard voltage compatible for low voltage systems
  • 4Pin standard plug-in terminal easy wiring and installation
  • Multiple contact combination: 1NO / 1NO1NC optional
  • Dual function: Momentary Reset / Self-Latching Latching
  • IP67 waterproof dustproof suitable for indoor & outdoor use
  • Premium brass nickel plated shell anti-rust corrosion resistant
  • Rated 3A stable load capacity for conventional control circuit
  • Contact resistance ≤50mΩ stable electrical conduction
  • Insulation resistance ≥1000MΩ, withstand 2000VAC
  • Wide working temperature: -20℃ ~ +55℃
  • Silver alloy contact anti-oxidation long service life
  • Solder terminal optional for different wiring methods
  • Compact mini design perfect for limited space installation
  • Fast delivery 3-7 days for retail and wholesale orders

Technical Specifications

Mounting Size12/16/19/22/25/28/30/40mm Optional
Head TypeFlat / High / Domed Head
LED TypePower Illuminated Multi-Color
Rated Voltage12V
Rated Current3A
Terminal4Pin Plug-in / Solder Terminal
Contact Type1NO / 1NO1NC Optional
Operation TypeMomentary Reset / Self-Latching
Waterproof GradeIP67
Shell MaterialBrass Nickel Plated
Contact Resistance≤50mΩ
Insulation Resistance≥1000MΩ
Dielectric Strength2000VAC
Operating Temperature-20℃ ~ +55℃
ConnectionPlug In / Solder Wiring
ApplicationMini Equipment, Automotive, Industrial, DIY Electronic Project

Product Advantages

This 12V mini 4Pin power LED metal push button supports 12mm to 40mm full size selection, matching all kinds of panel installation needs. Various head shapes and LED colors are available, with clear power indicator light for working status display. 1NO and 1NO1NC optional contact structure meets simple and complex circuit design. Support momentary reset and self-locking two working modes, IP67 waterproof performance adapts to dust and humid environment. Brass nickel plated housing is durable and rust-proof, 4Pin plug-in terminal is convenient for assembly, mini compact design is especially suitable for small and limited space equipment installation.

Applications

  • 12mm mini equipment 12V power LED control button
  • Automotive motorcycle low voltage indicator switch
  • Instrument and meter embedded panel button
  • Smart home small electrical power switch
  • Industrial mini control cabinet momentary button
  • Electronic DIY project 4Pin illuminated replacement button
