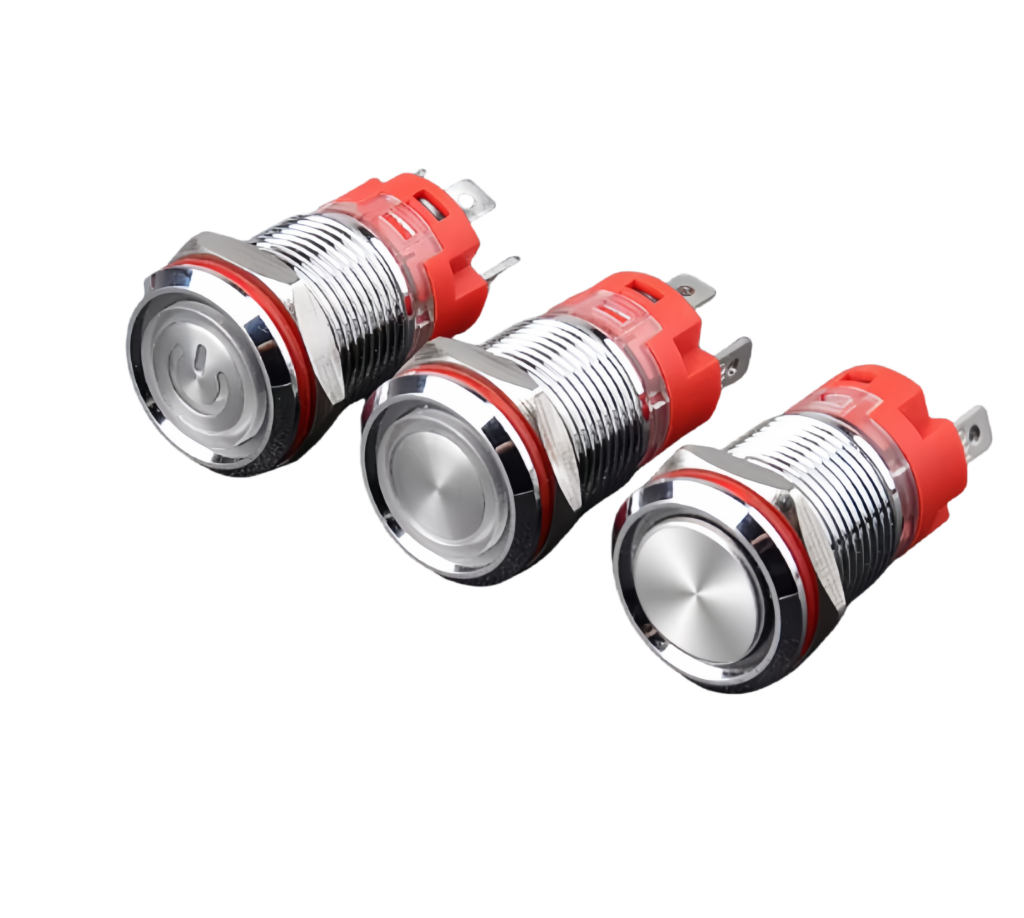

This 12mm metal push button switch operates from 5–120V and features a durable design for long-lasting use. Available with LED ring lamp or power symbol illumination, it supports lock/reset functions for easy control. Ideal for industrial equipment, control panels, and electrical systems where clear status indication and reliable performance are required.
Contact Resistance | ≤50mΩ | Actuating Force | about 4N |
Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm. customised the others |
Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/Aluminum Oxide/Copper plate / According to the request |
Protection Levels | IK10 | Diffuser | Environmental protection PC |
Electrical Life | Rated:2A250VAC- 100,000 time | Nut | Nickel brass |
Rated:5A250VAC-50,000 times | Base Seat | PA66 | |
Rated:8A250VAC-20,000 times | Bottom Seat | ||
Reated:10A250VAC- 20,000 times | Insert seat | ||
Mechanical Life | Momentary-500,000 times | Pins | H65 / H65 Silver Plated / Gold |
Latching-300,000 times | Contact | Environment-friendly Silver Contact | |
Waterproof | IP67 | Spring | Imported steel wire |
This 12mm metal push button switch is designed for compact control panels and small equipment. It supports a wide 5V–120V LED voltage range for flexible use. IP67 waterproof and IK10 impact resistance ensure stable performance in harsh environments. Both latching and momentary modes are available to meet different control needs. Ring lamp and power symbol LED options provide clear status indication. High-quality metal shell and silver-plated contacts ensure long service life and reliable conductivity.
1. What is the mounting size?
Standard 12mm (M12×0.75) mounting size.
2. What voltage range does the LED support?
Wide voltage: 5V to 120V.
3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and IK10 protection.
4. Does it support latching and momentary modes?
Yes, both latching (lock) and momentary (reset) are optional.
5. What LED styles are available?
Ring lamp and power symbol LED are optional.
