This rugged 12mm metal push button is built for harsh outdoor conditions. With its IP68 potted sealing and momentary self-reset function, it delivers reliable performance. The integrated LED and pre-wired design ensure easy installation and clear status indication.

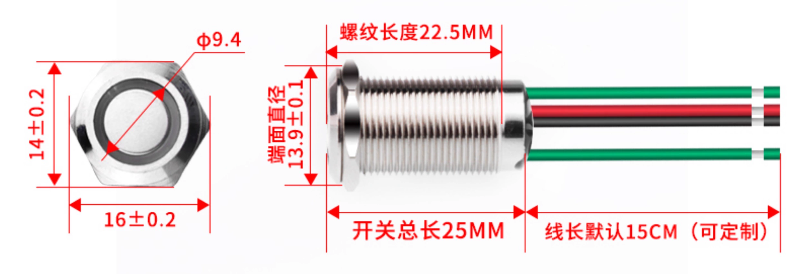

| Mounting Size | 12mm |
| Protection Grade | IP68 Fully Sealed |
| Sealing Type | Epoxy Potted |
| Operation Type | Momentary (Self-Reset) |
| Wiring | Pre-Wired |
| Light Option | Illuminated / Non-Illuminated |
| LED Color | Red, Green, Blue |
| Lamp Type | Ring / Ring + Power |
| Head Type | Flat |
| Contact Type | NO (Normally Open) |
| Shell Material | Nickel Plated Brass |
| Connection | Welding |
| Bezel | Metal |
| Application | Outdoor, Marine, Harsh Environment Equipment |
This 12mm IP68 potted sealed metal push button switch is specially designed for extreme outdoor and harsh environments. Full epoxy potting provides 360° waterproof, dustproof, moisture-proof and anti-vibration performance. IP68 rating ensures stable operation even in submerged and long-term outdoor conditions. Pre-wired design allows fast installation without soldering. LED illumination offers clear status indication. Sturdy metal structure ensures long service life for outdoor, marine and industrial equipment.
1. What is the mounting size?
Standard 12mm mounting hole size.
2. Is this switch IP68 waterproof?
Yes, it uses full epoxy potting to achieve IP68 highest waterproof protection.
3. Is it designed for outdoor use?
Yes, it is specially built for harsh outdoor, marine and wet environments.
4. Is it pre-wired for easy installation?
Yes, pre-wired design supports direct plug-and-play installation.
5. What operation type does it use?
It uses momentary (self-reset) operation type.
| Bezel | |
|---|---|
| Connection | |
| Head Type | |
| Lamp | |
| Lamp Type | |
| LED Color | |
| Operation of Contact | |
| Shell Material |
