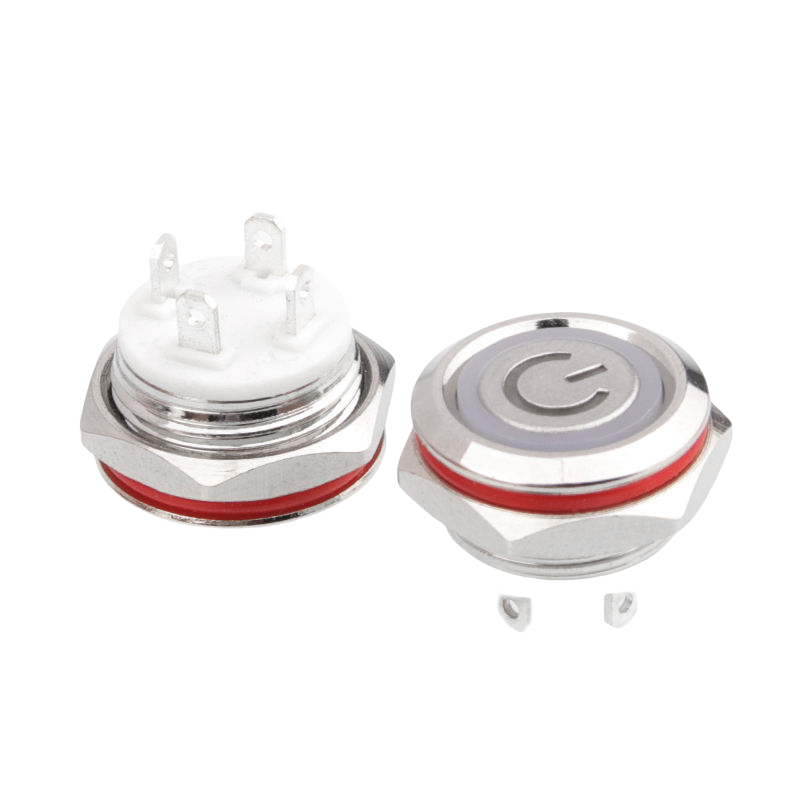

12C1

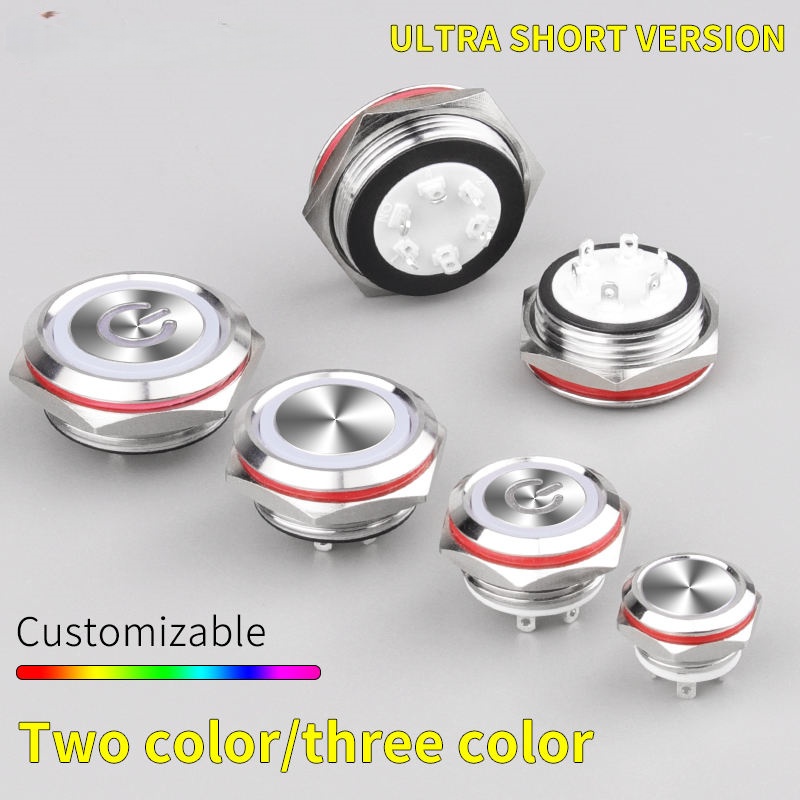

12C2

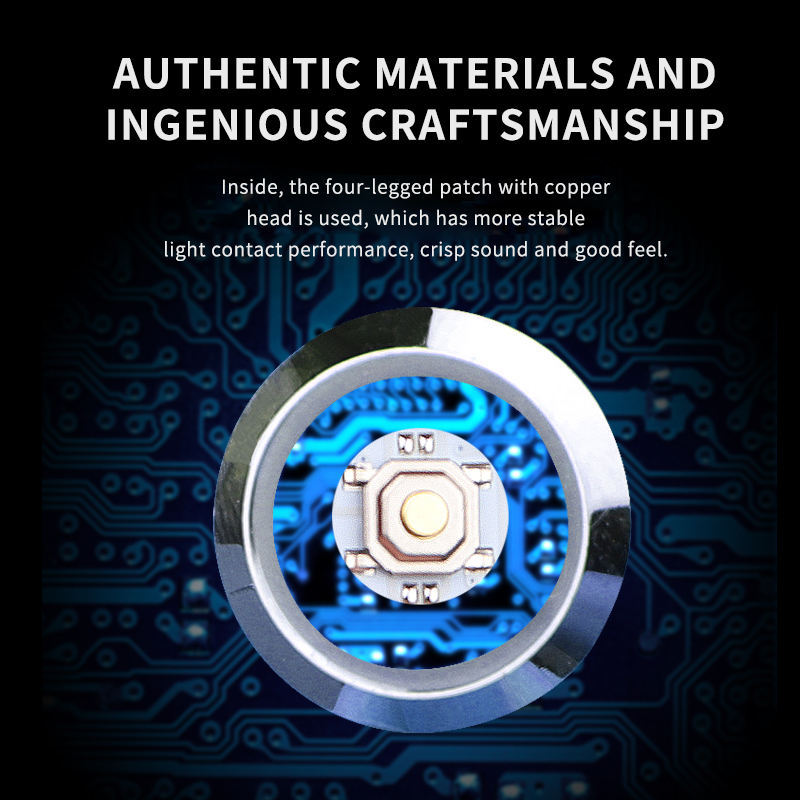

12C3
There Are no reviews yet.

12mm Short-stroke Waterproof Mini Instantaneous Metal Stainless Steel Push-button Switch with Welded Pins and Led Light

This ‌12mm short-stroke waterproof mini push-button switch‌ features a durable ‌stainless steel housing‌ with IP67-rated dust/water resistance, ideal for harsh environments. The ‌instantaneous (momentary) contact mechanism‌ ensures rapid response, while ‌welded pins‌ provide secure electrical connections. Integrated ‌LED illumination‌ (color options available) offers clear operational feedback. Suitable for industrial control panels, marine equipment, and outdoor electronics requiring compact, corrosion-resistant switching solutions.

Enquiry
SKU:SCJ10M12MCategory:
Description
Max. Current50mAMax. Voltage24V
LEDYesApplicationHome Appliance, Industrial Control
MaterialStainless SteelStructureMechanical
Head TypeFlat HeadTerminal TypePin terminal
Whether the smartNOilluminated Typering illuminated
IP levelip67Switch Combination1NO
Mounting hole diameter12mmHead shapeFlat head/Ball head/ High head
Crust materialStainless Steel/Nickel plated brass/Aluminum oxideContact configuration1NO-Normal Open
Operation typeMomentary or LatchingEmitting TypeNone
Ambient Temperature30℃~+80℃CertificateCQC CE ROHS CCC
CertificationCEProtection LevelIP67 IK10
