The 12mm waterproof metal push button switch features a ball head design and momentary on/off function, ideal for start or control applications. With an IP65-rated sealed construction and 1NO contact configuration, this compact switch delivers reliable performance in industrial equipment, machinery, and electrical control systems. Designed for durability and precision in demanding environments.
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000mΩ |
Dielectric Strength | 1000VAC min |
| Protection Levels | IK10 |
Ambient Temperature | -30℃~+80℃ |
Waterproof | IP65/IP66 |
| Pins | H65 / H65 Silver Plated / Gold |
| Nut | Nickel brass |

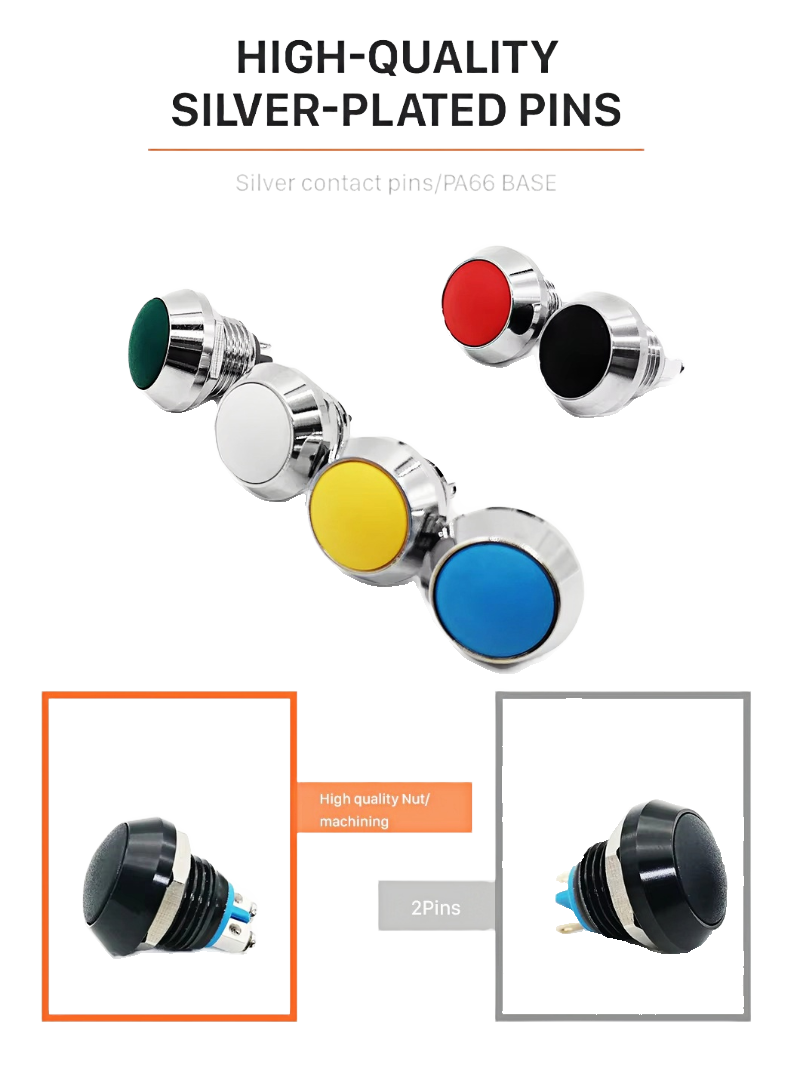

This 12mm ball head waterproof metal push button adopts smooth ball head appearance, ergonomic pressing feeling, beautiful and practical. Built with 1NO normally open contact, perfectly suitable for equipment one-touch start and signal trigger control. Momentary self-reset design meets most conventional on-off logic. IP65/IP66 waterproof and dustproof plus IK10 impact resistance adapt to workshop dust, humidity and equipment vibration environment. Equipped with silver-plated pins and PA66 flame retardant base, safe, stable and long service life, easy to install and wire.
1. Mounting hole size?
Standard 12mm mini mounting hole diameter.
2. Head style?
Classic ball head / domed head design.
3. Contact configuration?
1NO normally open, ideal for start trigger control.
4. Operation mode?
Momentary self-reset, press to start, release to reset.
5. Waterproof grade?
IP65/IP66 waterproof dustproof, IK10 impact resistant.
| Connection | |
|---|---|
| Head Type | |
| Operation of Contact | |
| PIN Material | |
| Position |
