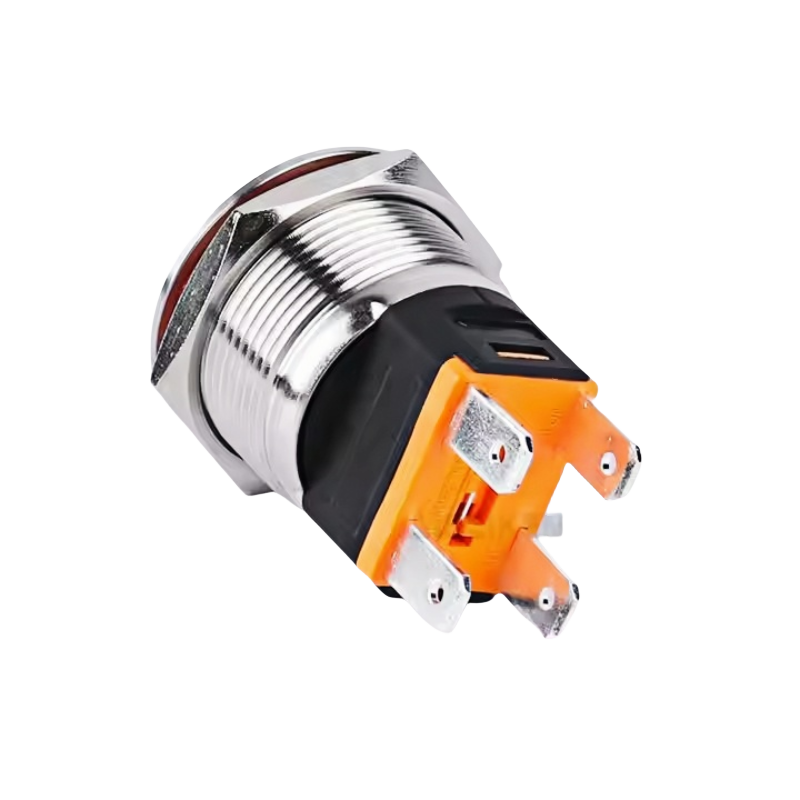

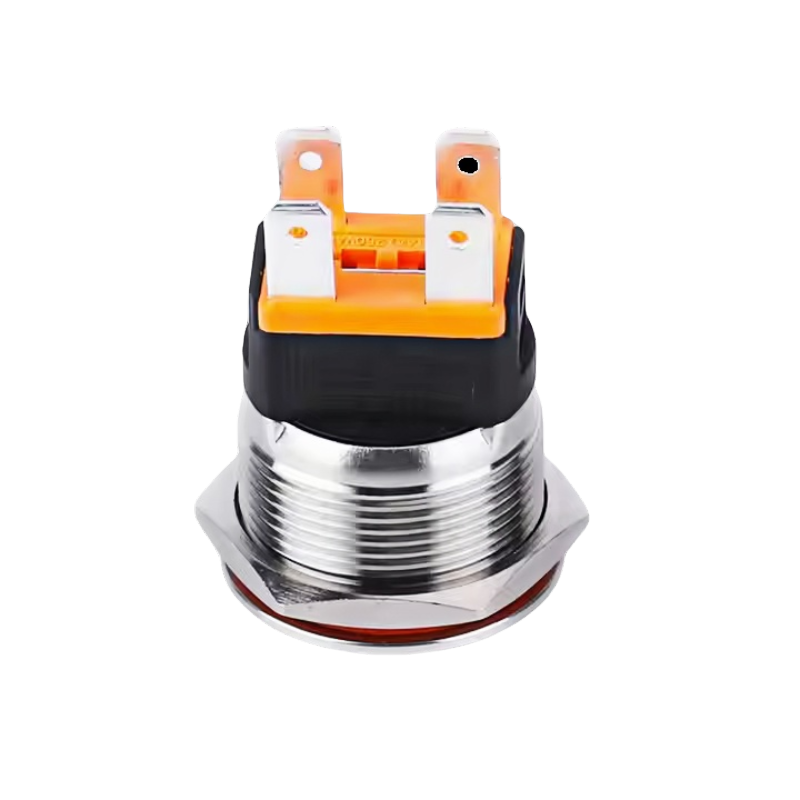

This 22mm metal push button switch features a DPDT self-locking function, built-in 12V blue LED illumination, and a power logo indicator for clear visibility. Rated at 15A with an IP67 waterproof rating, it’s ideal for harsh environments. Durable metal construction ensures long-lasting performance in industrial, automotive, and outdoor applications where reliable and visible control is required.
Mounting Hole | 22mm |
Operation Type | Latching (Maintain) |
Switch Combination | 2NO |
Head Type/Color | Flat Round Head |
Terminal type | 4 Pin Terminals |
Illuminated or not | Yes |
Led Voltage | 12V (or 3V/5V/24V/110V/220V/others) |
Led Color | Blue (Red, Green, Yellow, White available) |
Illuminated Type | Ring Led And Power Logo |
Enclosure Material | Brass Nickel Plated And Stainless Steel |
Delivery Days | 1-7 days |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -30℃~80℃ |
This 22mm 15A DPDT latching metal push button is designed for high-current heavy-duty power control scenarios. Supporting up to 15A load current, it can safely control high-power equipment circuits. IP67 waterproof grade adapts to outdoor, humid and dusty harsh environments. Dual light design of ring LED and power logo clearly displays working status, with 12V standard voltage and multiple colors optional. Brass nickel and stainless steel composite housing is anti-corrosion, wear-resistant and high temperature resistant. DPDT 2NO circuit structure meets dual-channel control needs, latching self-lock keeps stable on/off state without repeated pressing.
1. What is the mounting size?
Standard 22mm mounting hole diameter.
2. What is the rated current?
15A high current, suitable for heavy duty power load.
3. Is it IP67 waterproof?
Yes, IP67 waterproof and dustproof overall protection.
4. What LED lighting style?
Ring LED combined with power logo dual illumination.
5. Can LED voltage and color be customized?
Yes, multiple voltages and red/green/yellow/white colors optional.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
