Key Features

• Multi mounting size: 12/16/19/22/25/30mm optional
• Ergonomic mushroom head for quick emergency operation
• Momentary self-reset & latching emergency stop optional
• Non-illuminated / Ring LED two styles available
• Full LED colors: Red, Green, Blue, Yellow, Orange, White, Purple
• Wide LED voltage range: 2V/3V/6V/12V/24V/36V/110V/220V/250V
• 1NO contact configuration for safety circuit control
• Rated 2A 250VAC stable industrial load capacity
• Multiple shell material: Brass Nickel / Stainless Steel / Aluminum Oxide
• Low contact resistance ≤50mΩ
• High insulation ≥1000MΩ, dielectric strength up to 2000VAC

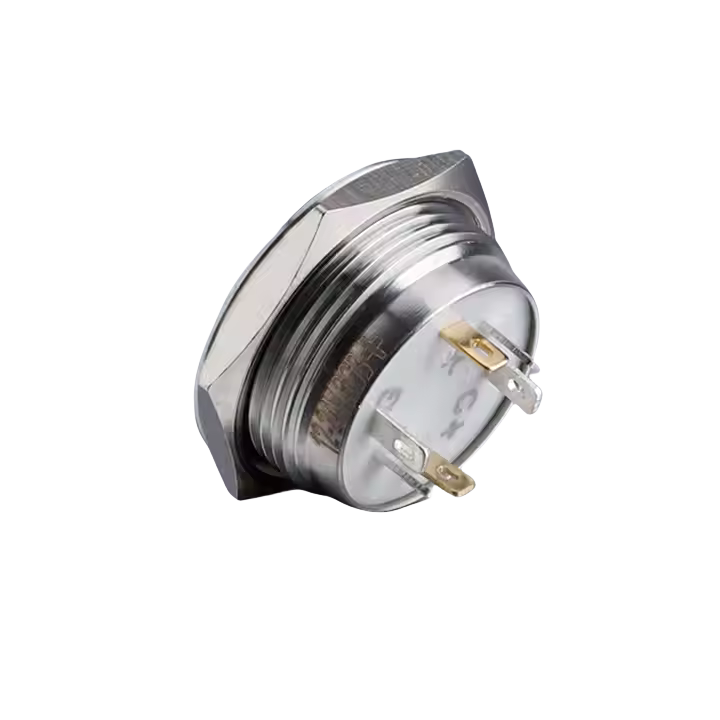

• Plug-in connection for easy installation and wiring
• Silver contact and pin for long-term reliable conduction

Product Advantages

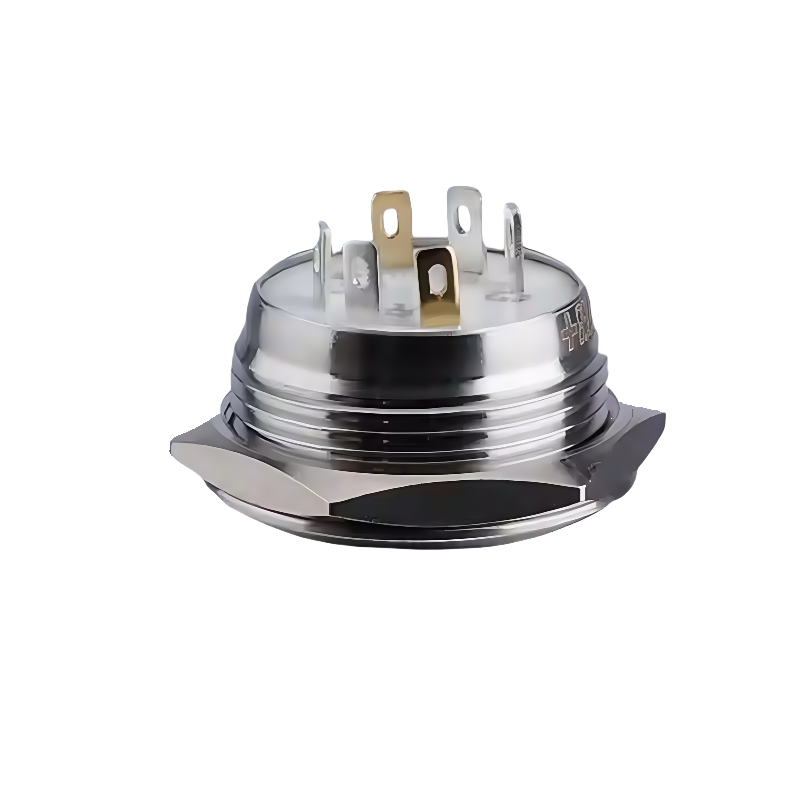

This 16/19/22mm mushroom head emergency stop metal push button is specially designed for industrial equipment safety protection. The large mushroom head allows quick and easy one-touch emergency shutdown in case of abnormal conditions. It supports momentary reset and latching locked stop two working modes, matching different safety control logic. Available in non-light and ring LED illuminated versions, with rich colors and wide voltage customization to adapt to various voltage systems. Multiple housing materials ensure corrosion resistance and durable use in harsh industrial environments. Excellent electrical parameters guarantee stable and safe circuit operation for a long time.

Applications

• Industrial machinery emergency stop safety button
• Automation equipment and production line control panel
• Electrical cabinet and power distribution safety system
• Engineering machinery and special equipment control
• Factory workshop equipment safety protection switch
• 12–30mm mounting hole emergency button replacement

FAQ

1. What sizes are available?
12/16/19/22/25/30mm full range mounting sizes.

2. Is it professional emergency stop type?
Yes, mushroom head design dedicated for industrial emergency stop.

3. Illuminated version available?
Non-illuminated and ring LED illuminated optional, multiple colors and voltages.

4. Momentary and latching function?
Support momentary self-reset and latching emergency lock stop.

5. What shell materials can I choose?
Brass nickel, stainless steel and aluminum oxide optional.
