Key Features

• Two mounting sizes optional: 16mm / 19mm
• Multiple terminal options: 5Pin / 7Pin for circuit matching
• Rated 3A load capacity for low voltage control circuits
• Universal wide voltage: 12V / 24V compatible system
• Dual function: Momentary self-reset / Latching self-locking
• IP65 / IP66 professional waterproof and dustproof grade
• IK10 high impact resistance anti-collision and anti-vibration
• High-strength metal housing anti-rust corrosion resistant
• Low contact resistance ≤50mΩ ensures stable conduction
• Insulation resistance ≥1000MΩ, dielectric strength 1000VAC min
• Ultra wide working temperature: -30℃ ~ +80℃
• Pin optional: H65 / Silver Plated / Gold Plated
• Nickel brass mounting nut firm and easy installation
• Silver alloy contact anti-oxidation long service life
• Plug-in connection easy wiring, replacement and wholesale

Technical Specifications

Product Advantages

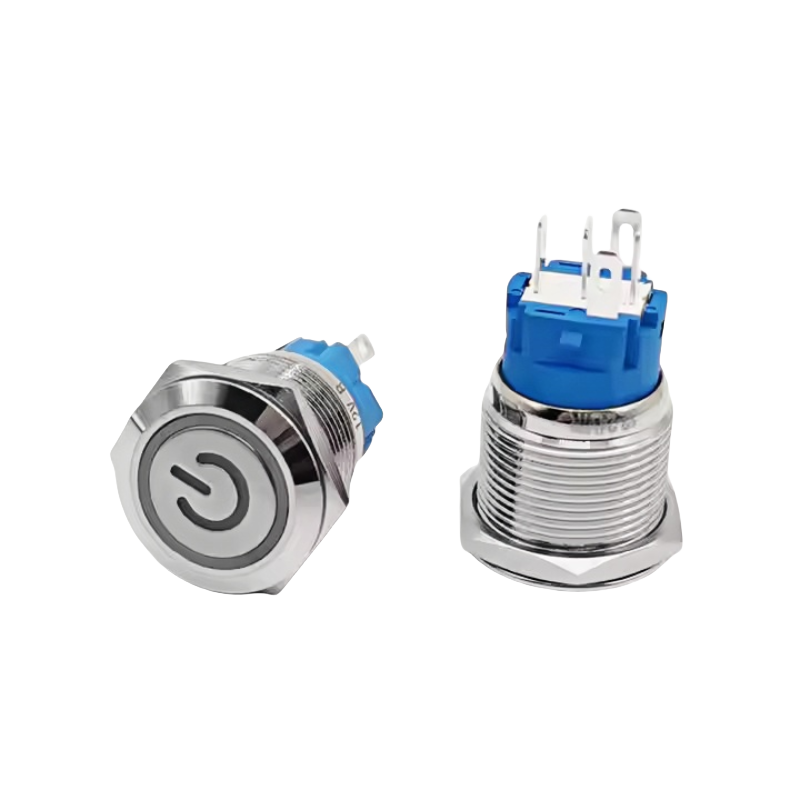

This 16mm / 19mm multi-size waterproof metal push button supports two mainstream installation apertures, compatible with more panel equipment. It provides 5Pin and 7Pin multi-pin options to meet complex circuit design requirements. Rated 3A current and 12V/24V wide voltage design, suitable for most low-voltage power control systems. Support momentary trigger and latching on-off dual working modes. IP65/IP66 waterproof and dustproof combined with IK10 impact resistance, adapting to workshop dust, humidity, vehicle vibration and outdoor harsh environments. High-quality metal material and stable electrical parameters ensure long-term reliable operation.

Applications

• 16mm/19mm industrial control panel power switch
• Automotive, motorcycle and RV modified control button
• Marine yacht waterproof equipment and power control system
• 12V/24V intelligent equipment and instrumentation button
• Electronic DIY project and personalized panel modification
• Multi-pin 5Pin/7Pin circuit dedicated replacement push button

FAQ

1. Mounting size options?
16mm and 19mm two standard mounting sizes optional.

2. Pin configuration?
5Pin and 7Pin terminals for different circuit needs.

3. Current and voltage?
Rated 3A, universal compatible with 12V and 24V systems.

4. Operation mode?
Momentary self-reset and latching self-locking two modes.

5. Waterproof grade?
IP65/IP66 waterproof dustproof, IK10 high impact resistant.
