Key Features

• Standard 16mm mounting hole for industrial panel installation
• Dual operation mode: Automatic Recovery / Self-Locking optional
• IP67 waterproof metal housing adapts to harsh outdoor & marine environment
• Built-in LED ring power indicator with customizable colors
• LED optional color: Red, Green, Yellow, Blue, White
• Wide compatible voltage range: 3V~220V DC/AC
• Rated 5A max current, max voltage up to 250V
• Switch type: 1 NO NC combination for flexible circuit control
• Premium material: Nickel Plated Brass / Stainless Steel
• Certified with CE, ROHS, UL for quality safety
• Over 1 million mechanical service cycles for long durability
• Electrical life up to 500,000 cycles
• Support bulk OEM & ODM customized order service
• Stable performance for industrial, marine and outdoor machinery

Technical Specifications

Product Advantages

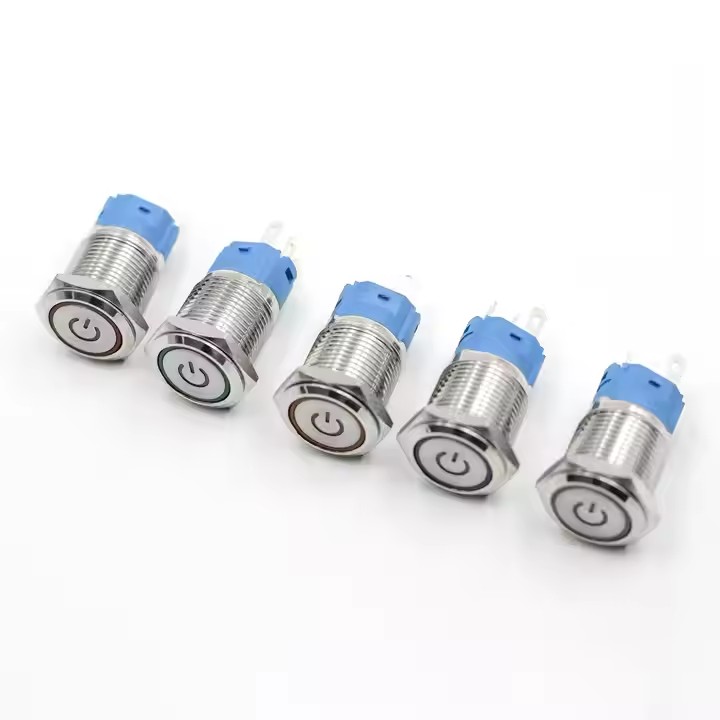

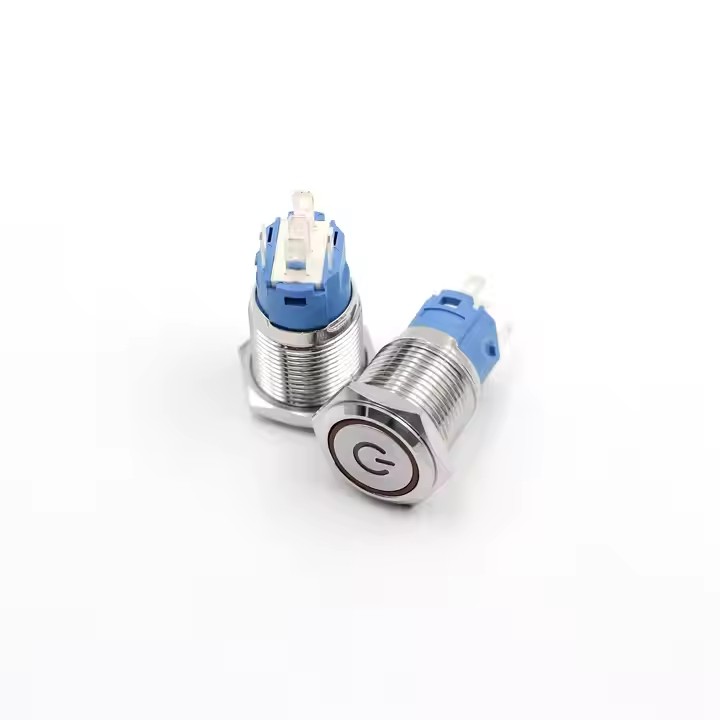

This 16mm dual-mode waterproof metal push button integrates self-recovery momentary and self-locking latching functions in one. Adopting IP67 waterproof metal structure of nickel plated brass and stainless steel, it performs well in industrial, marine and outdoor harsh environments. Equipped with ring LED power indicator in multiple colors, compatible with 3V~220V DC/AC wide voltage. Rated 5A 250V with 1NO NC contact design, certified CE/ROHS/UL, owns 1 million+ mechanical cycles and 500,000 electrical cycles, stable and durable, also supports OEM/ODM bulk customization.

Applications

• 16mm dual-mode industrial control panel LED push button
• Marine IP67 waterproof self-locking & reset control switch
• Outdoor machinery equipment 5A 250V indicator button
• Automation system 1NO NC multi-voltage metal button
• OEM ODM bulk order industrial waterproof push button

FAQ

1. Mounting size?
Standard 16mm mounting hole diameter.

2. Operation mode?
Dual mode: Automatic recovery and self-locking optional.

3. Rated parameter?
5A max current, 250V max voltage.

4. LED & voltage?
5 colors available, compatible 3V~220V DC/AC.

5. Certification & lifespan?
CE/ROHS/UL certified; 1M+ mechanical cycles, 500K electrical cycles.
