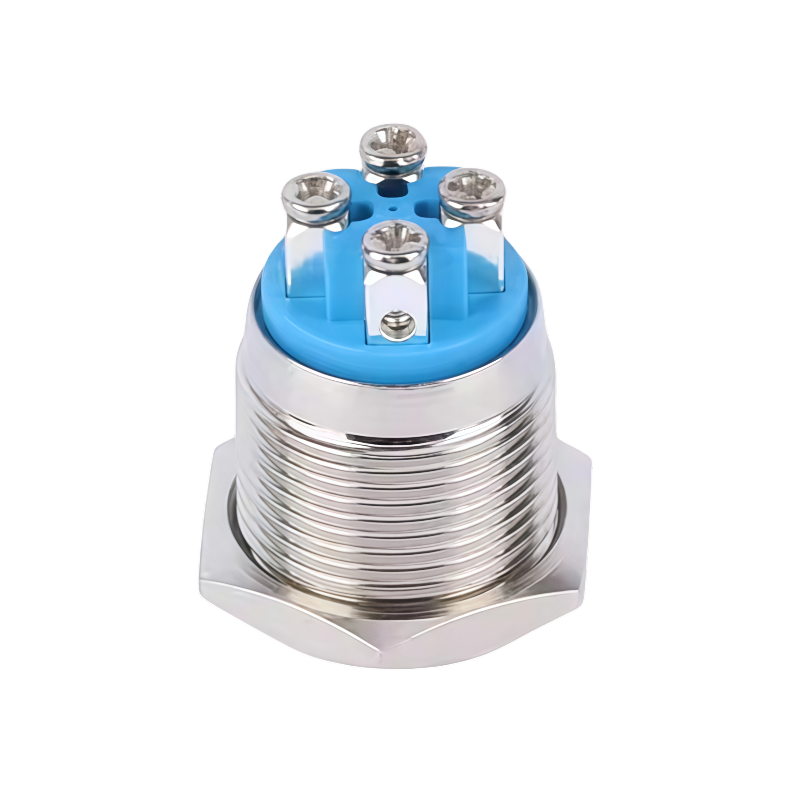

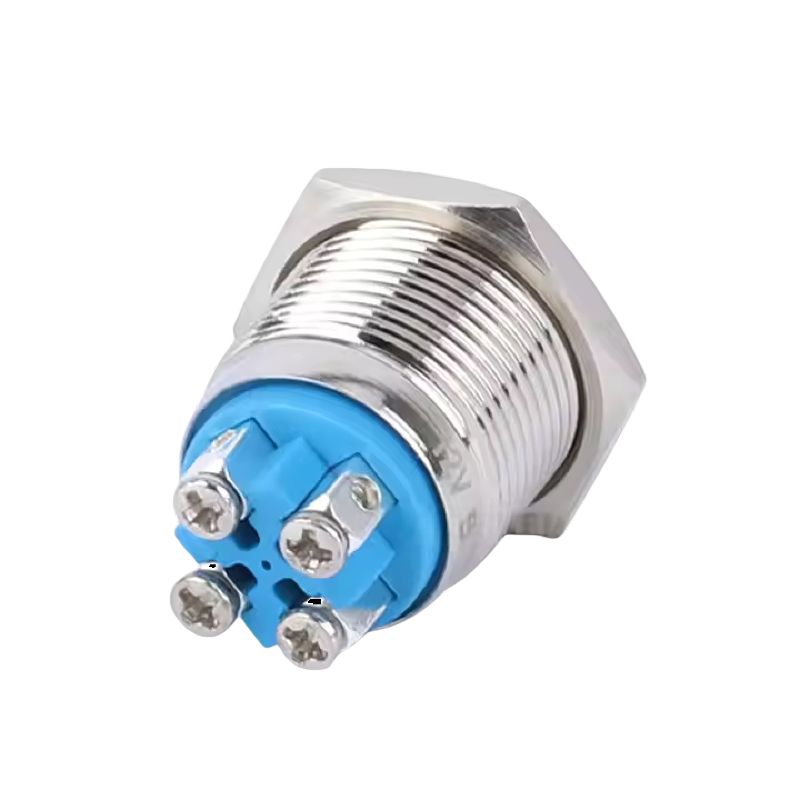

Upgrade your control systems with our 16mm Flat 1NO Momentary Push Button Switch, engineered for reliability in demanding environments. Featuring a short-body design and a sleek flat profile, this switch is ideal for applications where space efficiency and robust performance are critical. Available in nickel-plated brass, stainless steel, or aluminum, it offers corrosion resistance and long-lasting durability.
|
Mounting diameter
|
12mm 16mm 19mm 22mm 25mm 30mm
|
|
Head shape
|
Flat head
|
|
Switch Combination
|
1NO
|
|
Operation type
|
Momentary
|
|
Rated Current
|
2A 250VAC
|
|
Illuminating type
|
Non-illuminated Ring LED
|
|
Illuminating color
|
Red,green,blue,yellow,orange,white,purple
|
|
Lamp voltage
|
2V/3V/6V/12V/24V/36V/110V/220V/250V
|
|
Shell material
|
Brass nickel,Stainless steel,aluminum oxide
|
|
Contact Resistance
|
50mĪ© max
|
|
Insulation Resistance
|
2000VAC
|
|
Dielectric Intensity
|
2000VAC
|
| Connection | |
|---|---|
| Contact Material | |
| Position | |
| Operation of Contact | |
| PIN Material |
