Key Features

• 16mm standard mounting hole for universal panel installation
• Classic minimalist flat head design smooth and easy to press
• 2Pin terminal with 2 screw feet for firm wiring and mounting
• 12V low voltage universal suitable for vehicle and electronic system
• Pure momentary self-reset press-on release-off function
• IP65 / IP66 professional waterproof dustproof protection grade
• IK10 high impact resistance anti-vibration drop-proof durable
• Low contact resistance ≤50mΩ stable electrical conduction
• Insulation resistance ≥1000MΩ, dielectric strength 1000VAC min
• Ultra wide working temperature: -30℃ ~ +80℃

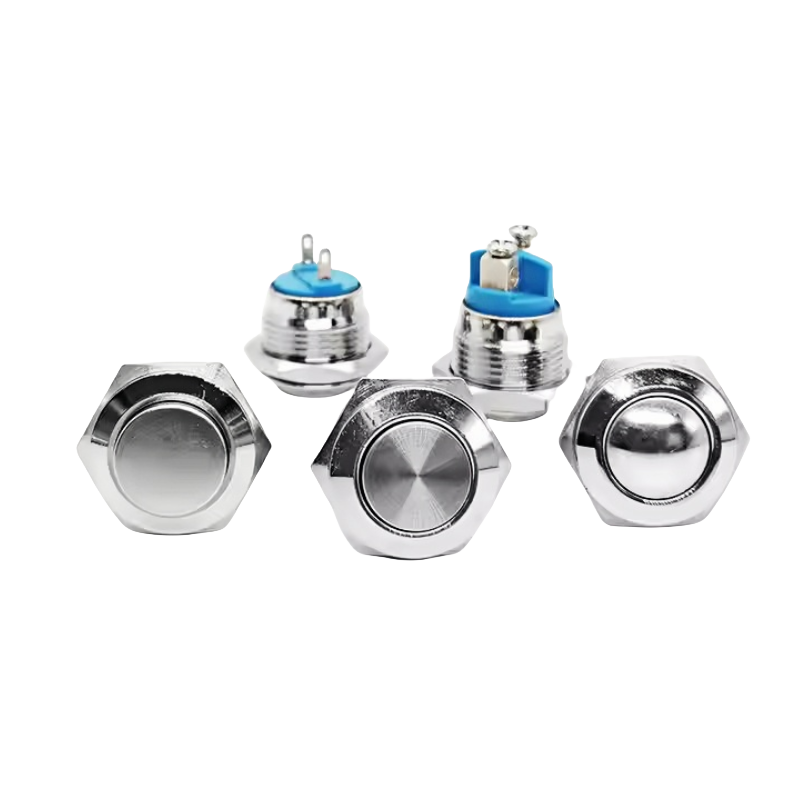

• Multiple pin options: H65 / Silver Plated / Gold Plated
• Nickel brass mounting nut stable and firm installation
• Silver alloy contact anti-oxidation long service life
• Plug-in and screw dual connection easy assembly

Product Advantages

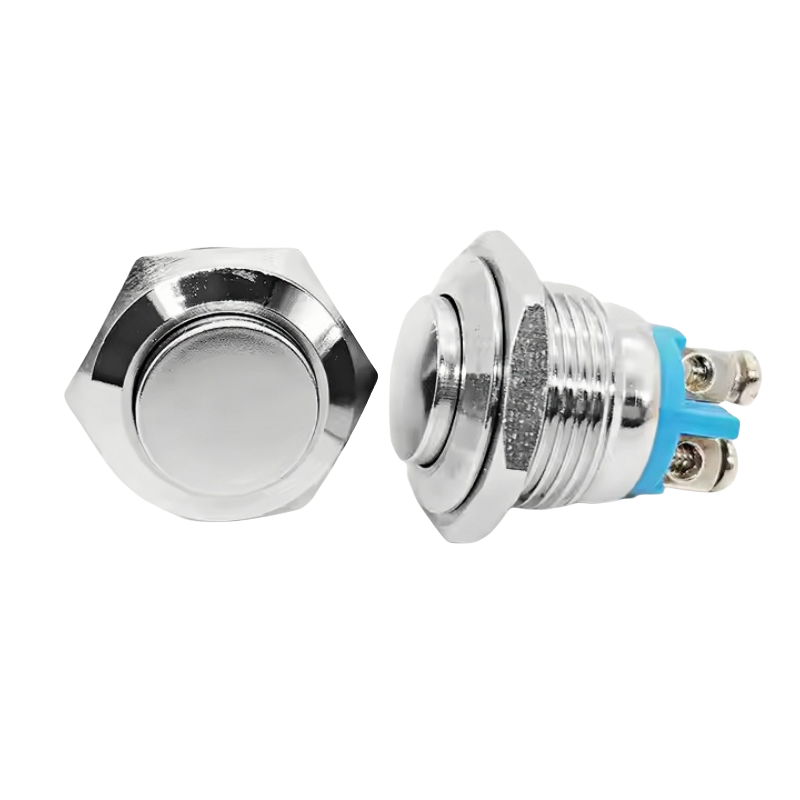

This 16mm flat head metal push button adopts simple and generous flat head appearance, suitable for various standard panel installation. Adopting 2-pin and 2 screw feet integrated design, wiring is firm and not easy to loose. 12V wide compatibility fits most vehicle, motorcycle and low-voltage equipment circuits. Momentary self-reset working mode meets one-touch trigger and start control needs. IP65/IP66 waterproof and IK10 impact resistance adapt to outdoor, workshop humid and dusty environment. High-quality metal shell and silver contact ensure stable performance and long service life.

Applications

• 16mm industrial control panel start trigger button
• Motorcycle electric vehicle handlebar function switch
• 12V vehicle modification and equipment control button
• Computer case chassis DIY power start switch
• Small household electrical and intelligent device control
• Electronic DIY project 2pin screw foot dedicated button

FAQ

1. Mounting hole size?
Standard 16mm mounting hole diameter.

2. Terminal feature?
2Pin with 2 screw feet design for stable wiring.

3. Rated voltage?
12V low voltage universal for most low-voltage systems.

4. Operation mode?
Momentary self-reset, press on and release off.

5. Waterproof level?
IP65/IP66 waterproof dustproof, IK10 high impact resistant.
