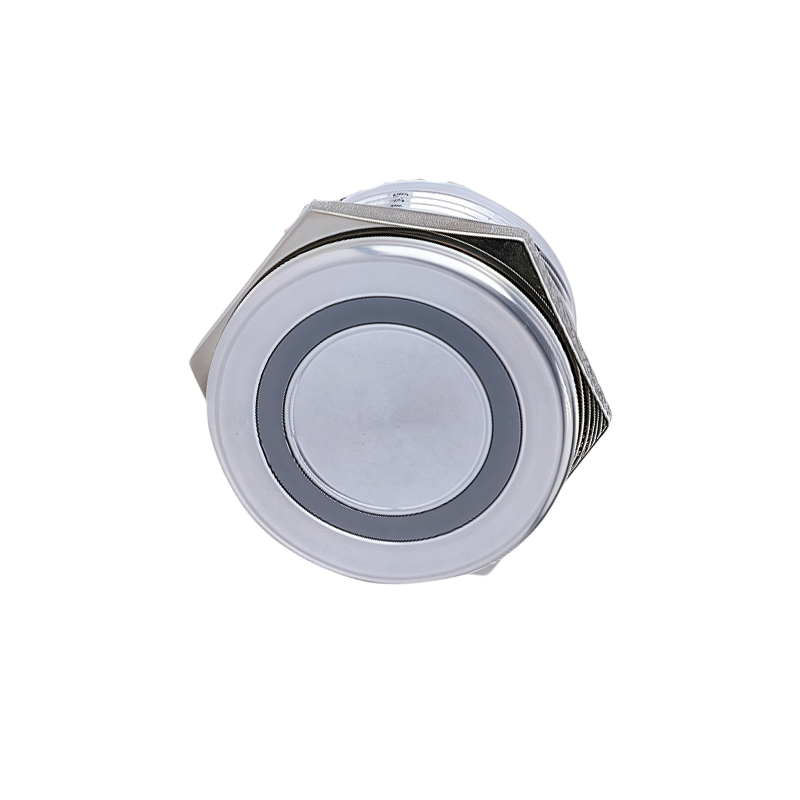

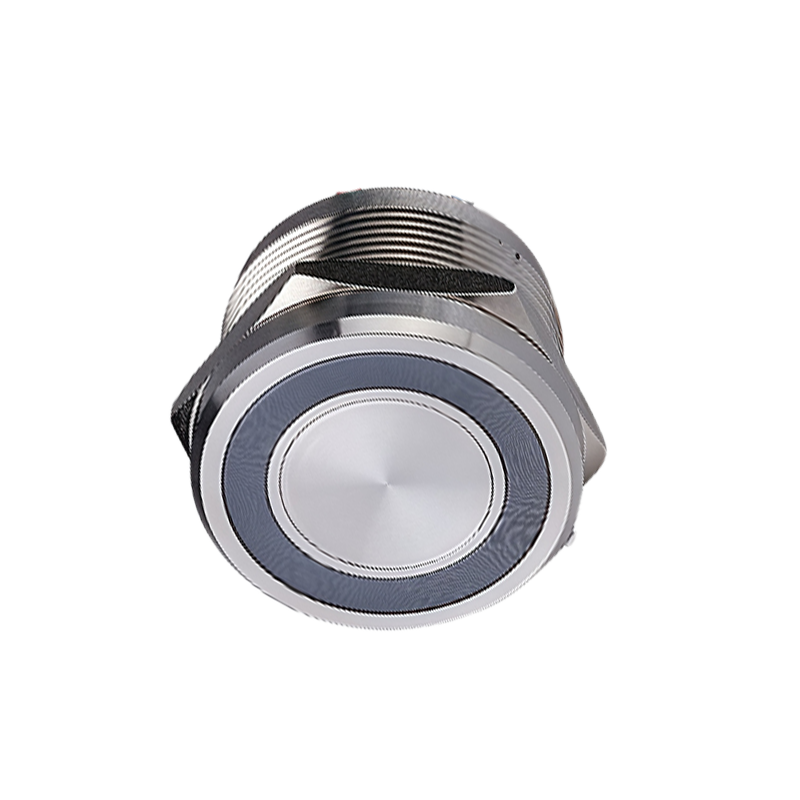

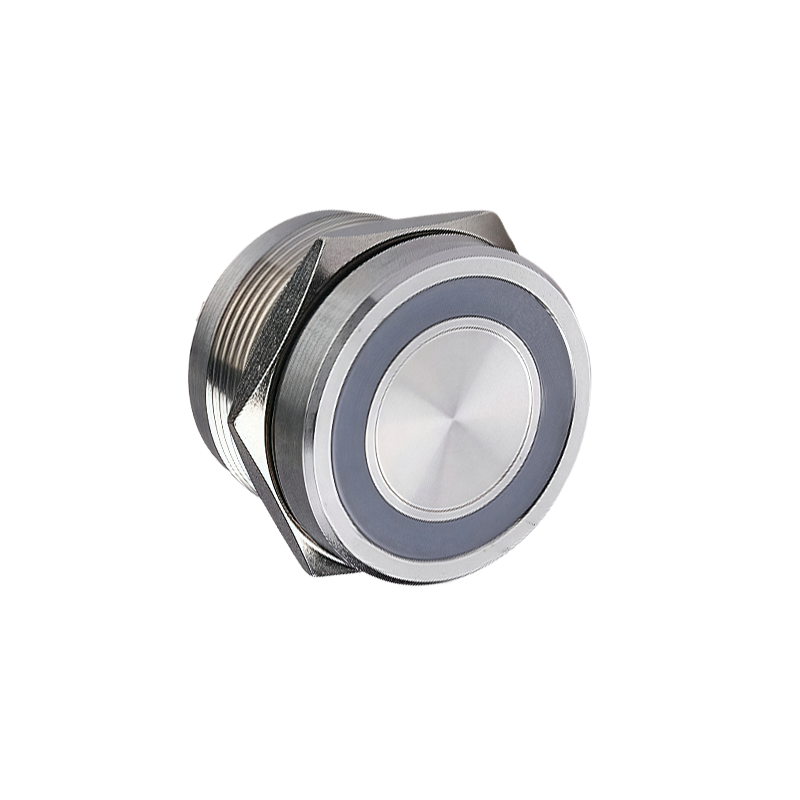

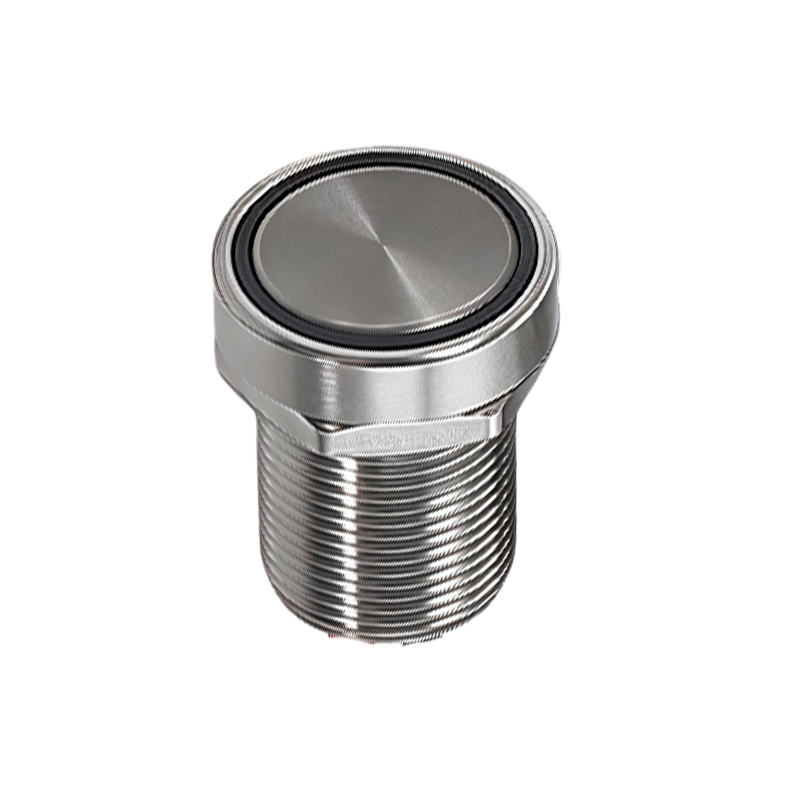

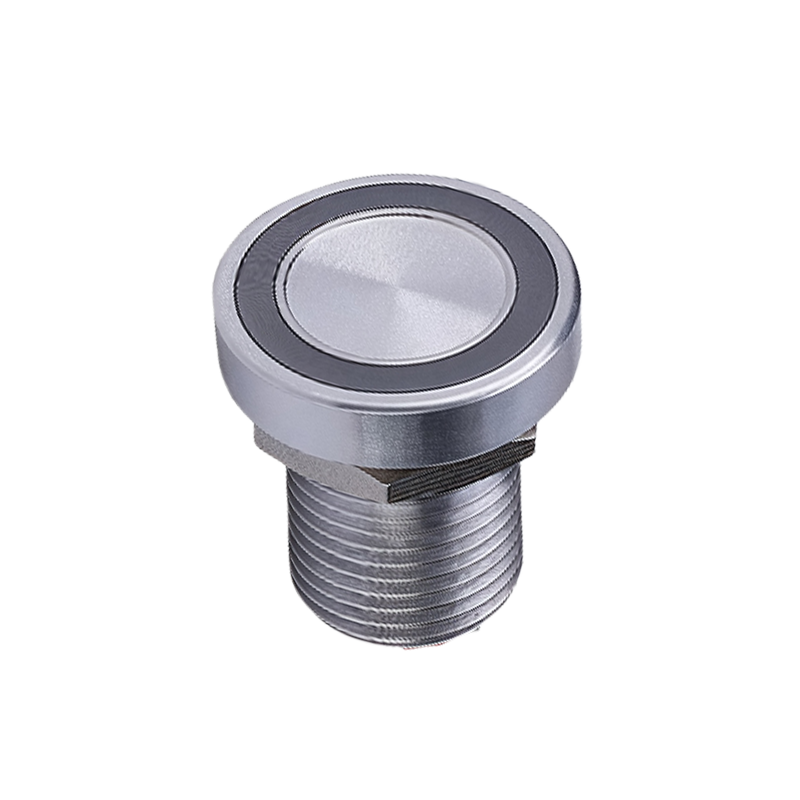

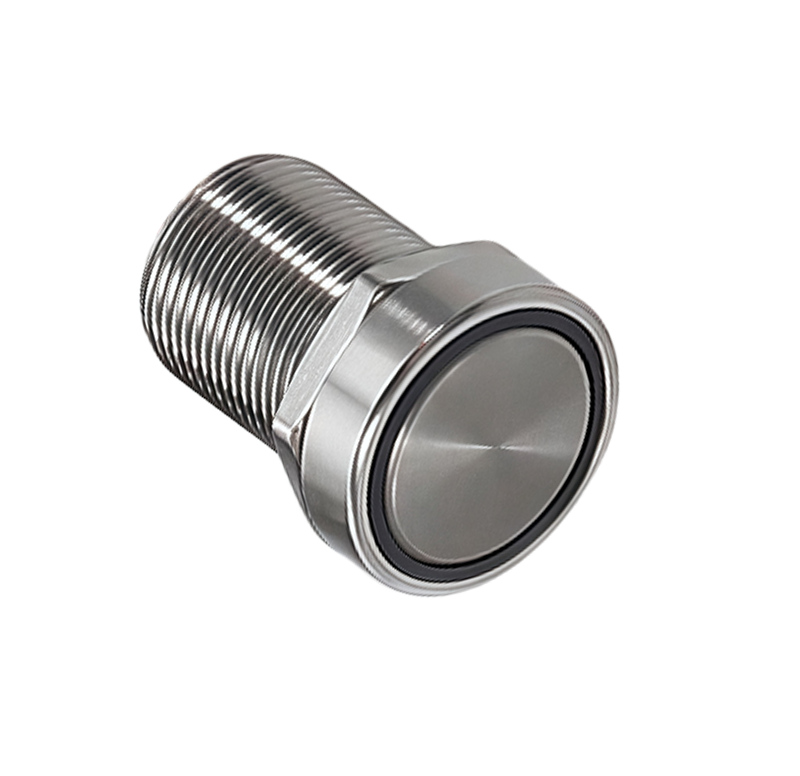

The piezoelectric switch is equipped with an infinite micro dual chip and features a high-end metal casing, which is corrosion-resistant, pressure resistant, rainproof, and waterproof. It is widely used in various smart technology scenarios, smart homes, smart living, and all industrial fields.
| Product Name | 16mm IK69 24V Stainless Steel Momentary Piezo Switch |
| Product Model | SCJ7P16FRF10+Custom Attributes |
| Category | Piezo Switches |
| Mounting Size | 16mm |
| Operation Type | Momentary |
| Core Structure | Infinite Micro Dual Chip |
| Bezel Material | Metal |
| Head Material | SUS304 Stainless Steel |
| Shell Material | Aluminum Oxide, Anodized Metal, SUS304 |
| Protection Grade | IP68, IK69 |
| Working Temperature | -20℃ ~ 55℃ / -40℃ ~ +75℃ |
| Operating Force | 4 ~ 8N |
| Rated Voltage | 3-24V (24V Special Version) |
| Working Current | Below 20mA |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC, 50HZ/60HZ |
| Contact Material | Gold, Silver |
| Contact Configuration | 01-NC, 10-NO, 11-1NO+1NC, 22-2NO+2NC, 33-3NO+3NC, Prolongated Pulse |
| Head Type | Concave, Flat, Round, Square & Custom Shapes |
| Lamp Type | Dot Lamp, Ring Lamp (Illuminated / Non-Illuminated) |
| LED Color | Blue, Green, Orange, Purple, Red, White, Yellow, Dual Color, TriColor |
| LED Voltage | 3V/5V/6V/12V/24V/36V/110V/220V (AC/DC Universal) |
| Shell Length | 8/9/10/12/13/16/17/17.5/18mm & Custom |
| Connection Type | Welding, Prewired |
| Wire Specification | 24AWG / 26AWG, 150mm / 300mm (Customizable) |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 1,000,000 Times |
| Total Lifespan | 40000 Hours |
| Execution Standard | CE: EN 60947-5-1:2017 |
| Application | Smart Home, Smart Devices, General Industrial Equipment |
This 16mm 24V piezo switch adopts infinite micro dual chip design, delivering sensitive and stable triggering performance. It is built with SUS304 stainless steel and premium metal housing, featuring corrosion resistance, pressure resistance, rainproof and waterproof capabilities. Equipped with IP68 and IK69 dual protection levels, it can operate reliably in complex indoor and outdoor environments. Optimized for 24V circuits and compatible with 3-24V wide voltage range, the switch consumes ultra-low power for long-term use. It supports welding and prewired two wiring methods to meet various installation requirements. Gold and silver contacts ensure stable electrical conduction and long service life. The product adapts to two temperature zones, suitable for both low and high temperature scenarios. A full range of customizable options including head shape, lamp style, contact mode and shell specifications are available. With 1 million mechanical and electrical cycles and 40000-hour total lifespan, it is highly durable. Complying with CE international standards, it is a universal component widely applicable to smart home systems, intelligent terminals and all kinds of industrial equipment.
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
1. What is the mounting size and internal structure of this piezo switch?
The mounting hole is 16mm, and it adopts infinite micro dual chip structure with momentary operation.
2. What protection levels and main materials does it have?
It has IP68 waterproof & dustproof and IK69 anti-impact grade; made of SUS304 stainless steel and high-grade metal shell.
3. What are the voltage and current parameters?
Rated voltage 3-24V (optimized for 24V), working current is below 20mA.
4. What temperature range and operating force?
Two temperature options: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.
5. Contact material and electrical performance?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.
6. Wiring ways and wire specifications?
Support welding and prewired; 24AWG/26AWG wire, 150mm/300mm length, customizable.
7. What customizable parts are available?
Head style, LED lamp, contact configuration and shell size can be fully customized.
8. Service life and executive standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1.
9. What main application fields?
Widely used for smart home, smart devices and various industrial equipment.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |

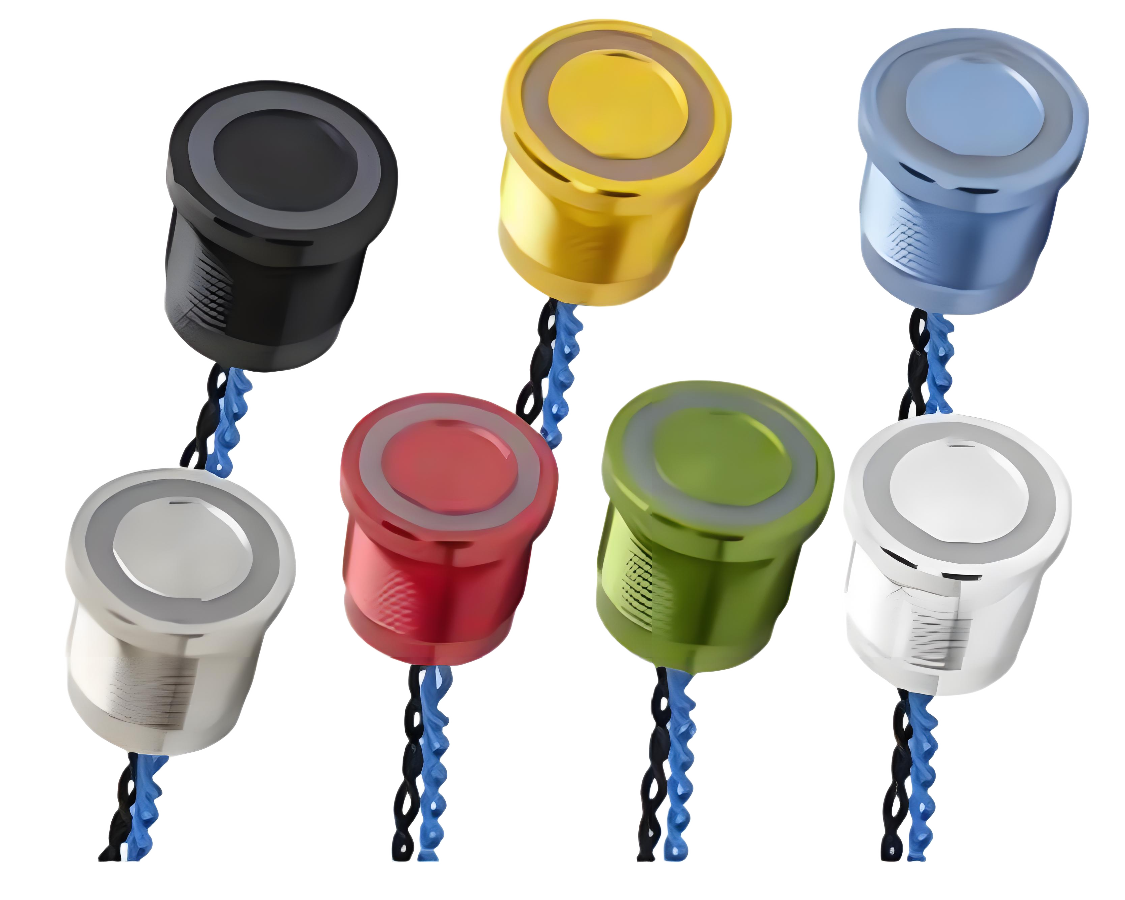

| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
