This 16mm metal push button switch delivers 10A high-current capacity with a distinctive ring LED. Offering both latching and momentary functions, its waterproof design ensures reliable performance for 5V/12V power start applications.
| Mounting Size | 16mm |
| Rated Current | 10A High Current |

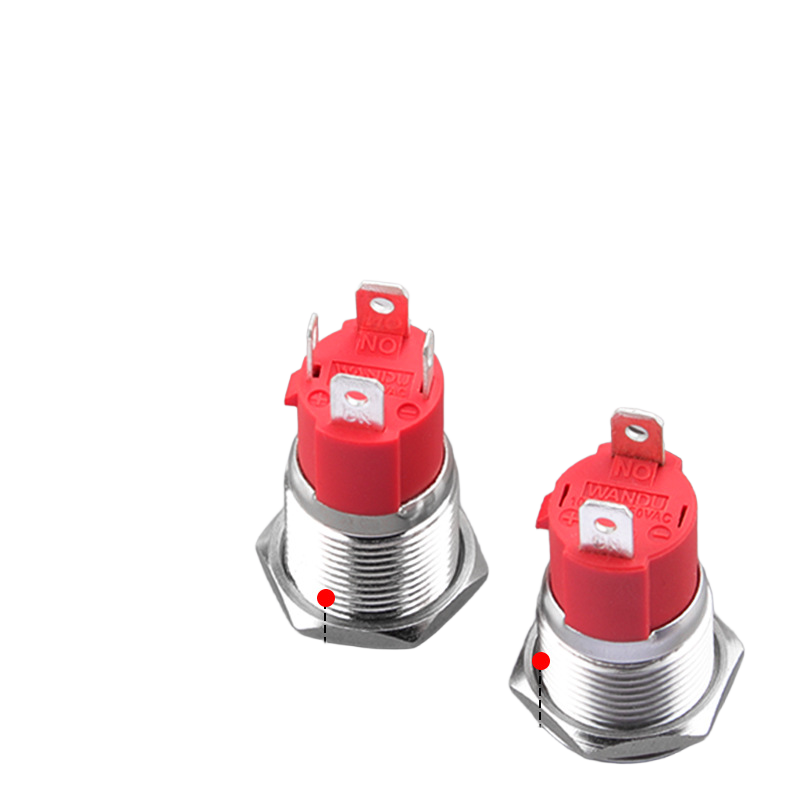

| Light Type | Ring / Ring + Power |
| LED Color | Red, Blue, Orange, White, Yellow |
| Operation Type | Latching / Momentary |
| Protection Grade | IP67 Waterproof |
| Voltage | 5V / 12V |

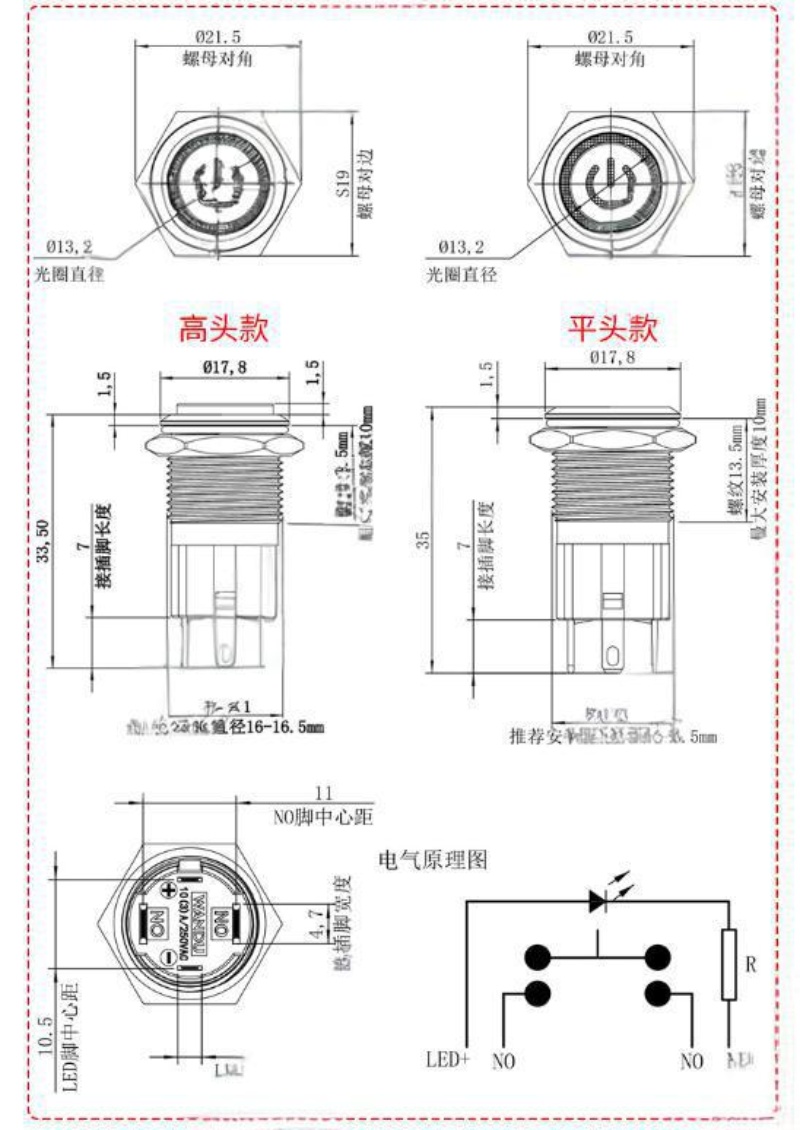

| Head Type | Flat / High Round |
| Contact Type | NO (Normally Open) |
| Contact Material | Silver Plated |
| PIN Material | Silver Plated |
| Shell Material | Stainless Steel / Nickel Plated Brass / Chromium Plated Brass |
| Bezel | Metal |
| Connection | Welding |
| Application | Power Start, Control Panel, Automotive, Equipment |
This 16mm 10A high current metal push button switch is designed for 5V/12V low-voltage power start systems. It supports 10A large current for reliable power control. Ring LED provides bright and clear status indication. IP67 waterproof rating ensures stable performance in humid, outdoor and harsh environments. It offers both latching and momentary modes with flat/high round head options for versatile installation. Silver-plated contacts ensure excellent conductivity and long service life.
1. What is the mounting size?
Standard 16mm mounting hole size.
2. What is the rated current?
It supports 10A high current for power control.
3. What voltage does it support?
It supports 5V and 12V low voltage systems.
4. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.
5. Does it support latching and momentary modes?
Yes, both latching and momentary operation are optional.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Type | |
| Lamp | |
| Lamp Type | |
| LED Color | |
| Operation of Contact | |
| PIN Material | |
| Shell Material |
