Key Features

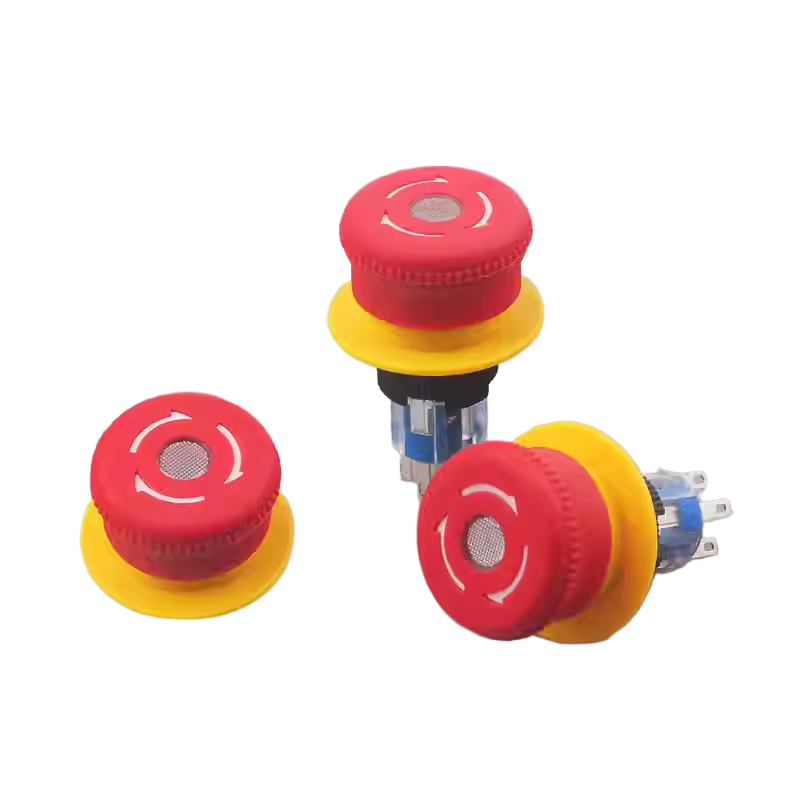

• Standard 16mm mounting diameter for panel installation
• Classic red mushroom head design for obvious emergency recognition
• IP67 high-level waterproof and dustproof protection for harsh environments

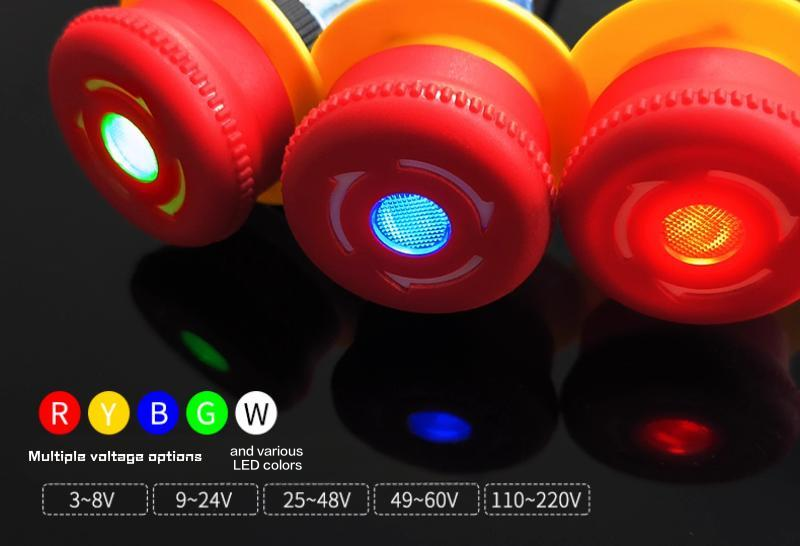

• Illuminated dot lamp type with multiple LED color options
• Optional LED color: Blue, Green, Red, White, Yellow
• Fixed 1NO+1NC contact configuration for universal safety circuit
• Full plastic bezel, head and shell material, lightweight and cost-effective
• Plug-in connection design for fast and convenient wiring
• Silver contact and silver PIN material for stable conduction
• Integrated waterproof structure prevents water and dust intrusion
• Wide application for civil, medical, marine, automotive and industrial devices

Technical Specifications

Product Attributes

• Bezel: Plastic
• Shell Material: Plastic
• Head Material: Plastic
• Head Type: Mushroom
• Head Color: Red
• Lamp: Illuminated
• Lamp Type: Dot
• LED Color: Blue, Green, Red, White, Yellow
• Contact Material: Silver
• PIN Material: Silver
• Operation of Contact: 1NO+1NC

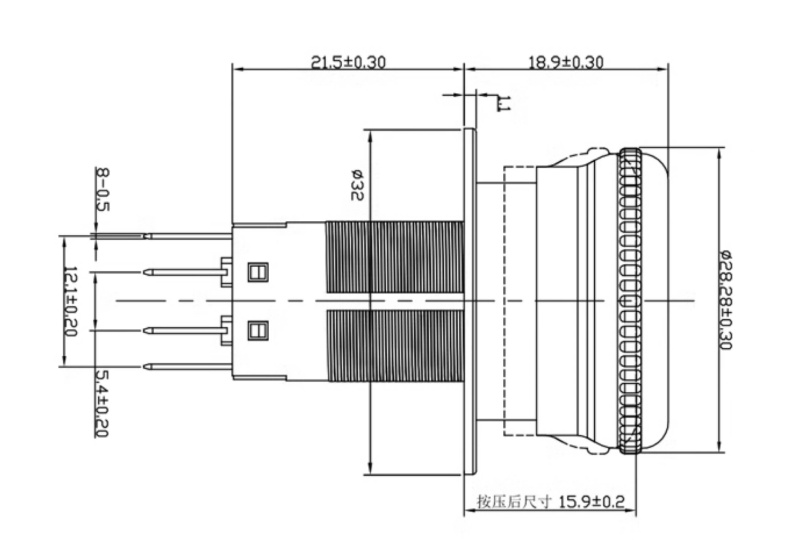

• Mounting diameter: 16mm
• Connection: Plug in

Product Advantages

This 16mm plastic illuminated mushroom head emergency stop button adopts IP67 waterproof structure and full plastic body. Built-in dot style LED supports multiple color options to indicate working status clearly. Standard 1NO1NC contact meets most safety control circuit requirements. Plug-in wiring is easy to install and replace. Silver contact and pin ensure stable electrical performance. IP67 dustproof and waterproof design adapts to wet, dusty and semi-outdoor environments, ideal for elevators, medical equipment, marine facilities, automotive devices, home appliances and PC modding safety emergency stop control.

Applications

• 16mm panel IP67 illuminated mushroom head emergency stop button
• Elevator and access control system safety emergency push button
• Medical facility and hospital equipment waterproof illuminated E-stop switch
• Marine and boat wet environment dustproof emergency control button
• Automotive, home appliance and PC modding customized LED stop switch

FAQ

1. What is the mounting size?
Standard 16mm mounting diameter, suitable for 16mm reserved panel holes.

2. What is the waterproof grade?
IP67 professional waterproof and dustproof level, suitable for wet and dusty occasions.

3. Does it have LED light?
Yes, it is illuminated type with dot lamp design.

4. What LED colors are available?
Blue, Green, Red, White and Yellow optional.

5. What is the contact configuration?
Fixed 1NO+1NC contact combination for general safety circuits.

6. Wiring method?
Plug-in connection design, easy and fast wiring installation.

7. What scenarios is it suitable for?
Widely used in elevators, access control, medical equipment, marine, automotive, home appliances and PC modding.
