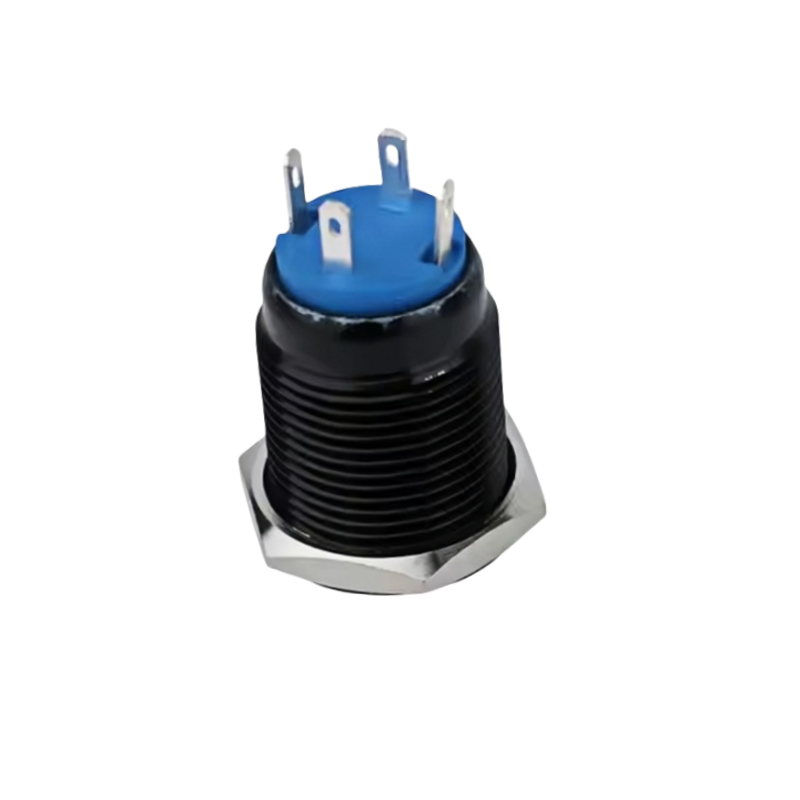

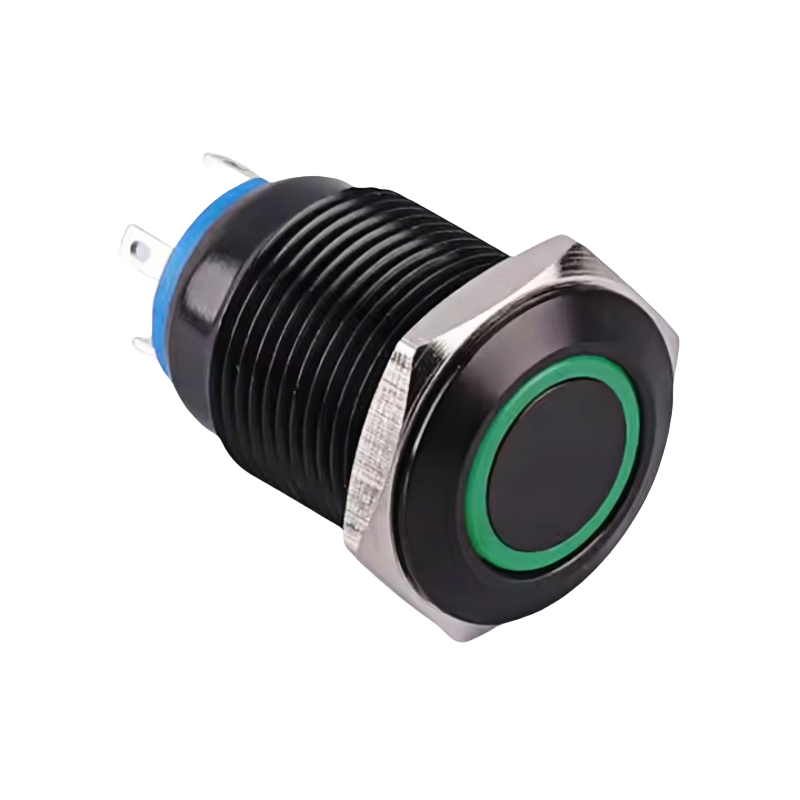

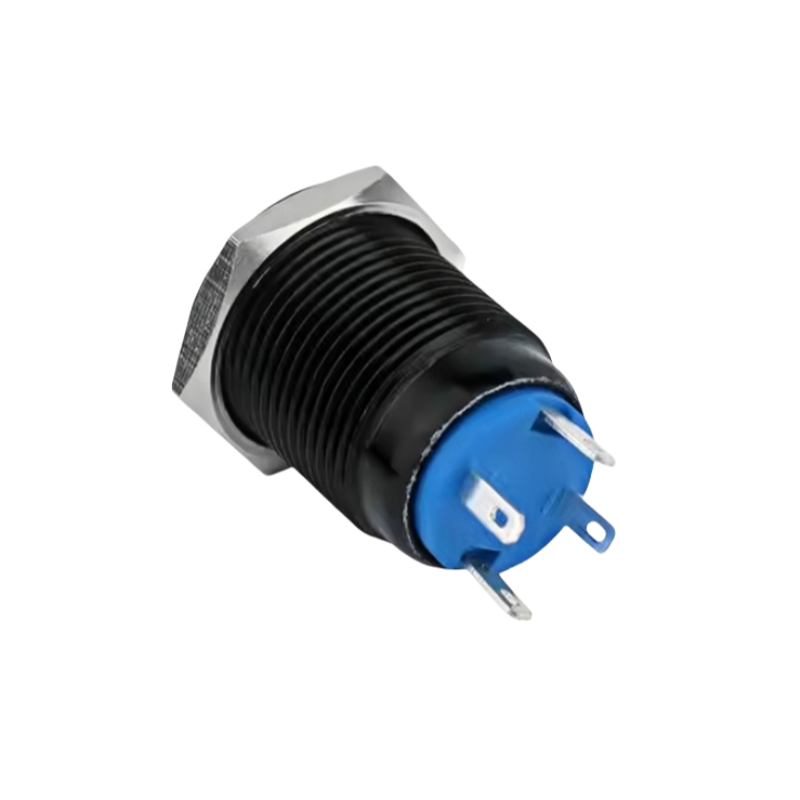

16mm RGB Ring Led Illuminated Black Momentary Metal Push Button Switches Waterproof 12v 24v Switch

This 16mm RGB Ring LED Illuminated Push Button Switch combines cutting-edge design with industrial-grade performance. Featuring a black metal housing and waterproof IP67 rating, it ensures durability in harsh environments while the RGB LED ring offers customizable color options (red, green, blue, white, or mixed hues) for user interface personalization. The momentary action provides instant on/off control, ideal for power buttons, status indicators, or temporary activation in devices like smart home systems, industrial machinery, or automotive electronics. Compatible with 12V and 24V DC, it supports versatile voltage requirements, and its 3A current capacity ensures reliable electrical performance. The short body design and 2-pin terminal simplify installation in compact spaces. CE-certified for global safety compliance, this switch merges aesthetics and functionality, making it perfect for applications demanding both visual appeal and robust operation—from robotics to consumer electronics.

Enquiry
SKU:SCJ7M16FZF2Category:
Description

Key Features

  • 16mm standard mounting hole for compact panel installation
  • Flat head minimalist black metal housing stylish appearance
  • Built-in RGB ring LED multi-color customizable lighting effect
  • Compatible 12V / 24V DC wide voltage system
  • 1NO normally open contact simple stable control circuit
  • Pure momentary self-reset press-on release-off function
  • IP67 professional waterproof dustproof protection grade
  • Short body design suitable for narrow limited space
  • 2Pin pin terminal easy plug-in wiring and soldering
  • Complete accessories: Nut, Rubber gasket, Waterproof O-ring
  • CE certified safe and reliable for global application
  • Contact resistance ≤50mΩ stable electrical conduction
  • Insulation resistance ≥1000MΩ, withstand 2000VAC
  • Working temperature -20℃ ~ +55℃ wide adaptability
  • Silver alloy contact anti-oxidation long service life
  • Fast delivery 3-7 days for retail and wholesale orders

Technical Specifications

Mounting Size16mm
Head TypeFlat Head
Light TypeRGB Ring LED
Rated Voltage12V / 24V DC Universal
Contact Type1NO Normally Open
Operation TypeMomentary Self-Reset
Waterproof GradeIP67
Body FeatureShort Body Compact Design
Terminal Type2Pin Plug-in / Solderable
Housing MaterialBlack Metal / Plastic Blue Optional
Contact Resistance≤50mΩ
Insulation Resistance≥1000MΩ
Dielectric Strength2000VAC
Operating Temperature-20℃ ~ +55℃
AccessoriesNut, Rubber Gasket, Waterproof O-Ring
CertificationCE Certified
ConnectionPlug In / Wire Soldering
ApplicationAutomotive, Industrial Machinery, Smart Home, Robot, DIY Project

Product Advantages

This 16mm RGB ring LED black metal push button adopts flat head short body structure, perfect for thin and narrow panel installation. Rich RGB multi-color lighting is customizable, beautiful and decorative with clear status indication. Compatible with 12V and 24V mainstream DC voltage systems, widely applicable. 1NO momentary self-reset design meets one-touch trigger control needs. IP67 high waterproof level adapts to dust, splash and harsh working environment. Equipped with complete installation accessories, support plug-in and welding wiring, CE certified safe and stable, ideal for automobile modification, industrial equipment, smart home and robot DIY projects.

Applications

  • 16mm RGB atmosphere light control button for car modification
  • Industrial machinery LED status momentary switch
  • Smart home and intelligent device power button
  • Robot and automation equipment control switch
  • Computer chassis personalized RGB DIY button
  • 12V/24V electronic project waterproof replacement button

16mm-rgb-ring-led-black-momentary-metal-push-button-12v-24v-ip67 16mm-rgb-ring-led-black-momentary-metal-push-button-12v-24v-ip67 16mm-rgb-ring-led-black-momentary-metal-push-button-12v-24v-ip67 16mm-rgb-ring-led-black-momentary-metal-push-button-12v-24v-ip67

FAQ

1. Mounting size?
Standard 16mm mounting hole diameter.

2. LED feature?
RGB ring LED multi-color optional customizable lighting.

3. Voltage compatibility?
Universal 12V / 24V DC suitable for most low voltage systems.

4. Operation mode?
Momentary self-reset, press on release off.

5. Waterproof level?
IP67 waterproof dustproof with matched waterproof O-ring.
