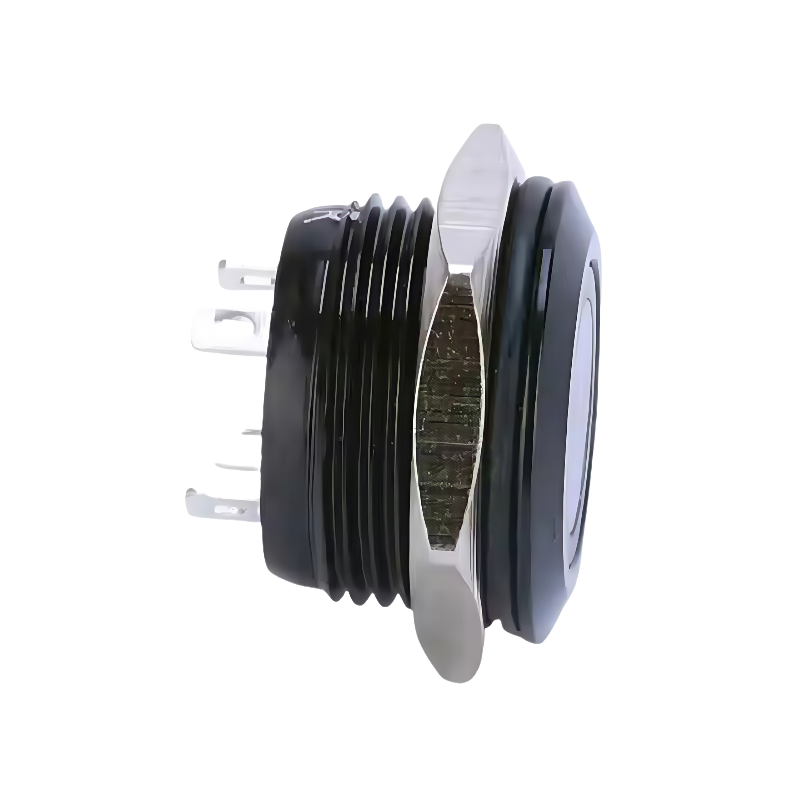

16mm Short Body Black Housing Momentary Power Touch Switch 12V 24V Blue LED Metal Push Button Switch

This 16mm Short Body Metal Push Button Switch offers a sleek, compact design with a black housing and blue LED illumination, ideal for modern electronics and control systems. The momentary action ensures instant on/off control, perfect for power buttons, reset functions, or temporary activation in devices like industrial equipment, automotive systems, or smart home gadgets. Compatible with 12V and 24V DC, it supports versatile voltage requirements while the IP65-rated metal construction resists dust and moisture for reliable performance in challenging environments. The short body design saves space without compromising durability, making it suitable for tight installations. The blue LED provides clear visual feedback, enhancing user interaction and system status visibility. With a 3A current capacity and 2-pin terminal, it simplifies wiring integration. CE-certified for global safety compliance, this switch combines aesthetics, functionality, and industrial-grade reliability for applications ranging from robotics to consumer electronics.

Enquiry
SKU:SCJ7M16ZF3Category:
Description

Key Features

  • 16mm standard mounting hole for narrow panel installation
  • Ultra short body compact design saves internal installation space
  • Flat round head minimalist touch feeling comfortable to press
  • Premium black aluminum oxidation housing wear-resistant fade-proof
  • Ring blue LED indicator multi-color customizable optional
  • Full voltage available: 3V/5V/12V/24V/110V/220V
  • 1NO normally open contact simple power control circuit
  • Pure momentary self-reset power touch switch function
  • IP67 waterproof grade + IK08 impact resistant protection
  • Rated 2A 36VDC stable load capacity for low voltage system
  • Ultra short ≤2mm operation stroke, ≤4N light operation pressure

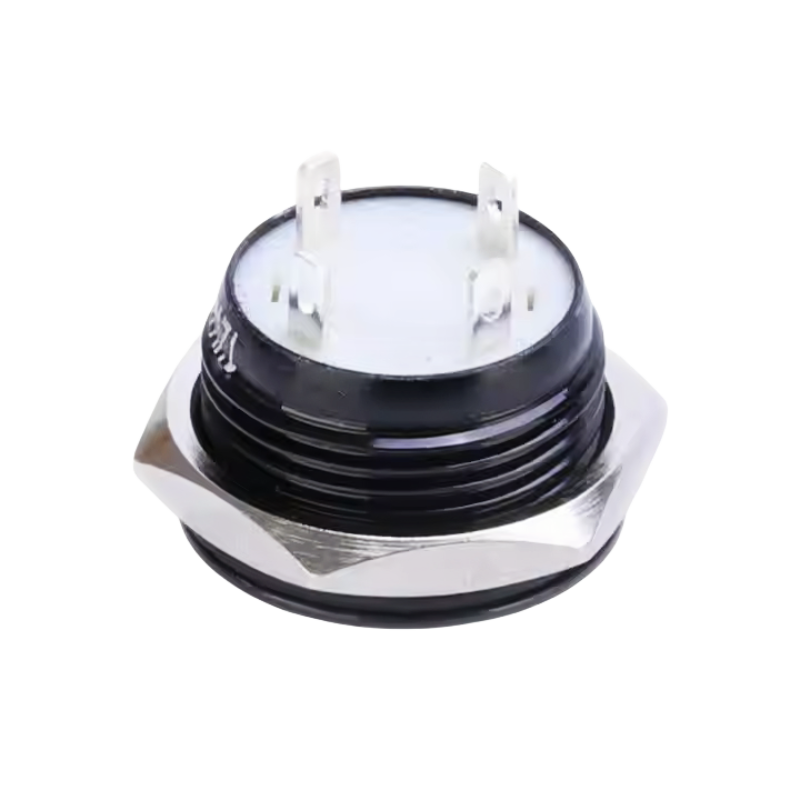

  • 4Pin plug-in terminal convenient wiring and assembly
  • High-quality nickel brass / stainless steel optional shell
  • Contact resistance ≤50mΩ stable electrical conduction
  • Insulation resistance ≥1000MΩ, dielectric strength 2000VAC
  • Mechanical life up to 1,000,000 cycles super long lifespan
  • Electrical life ≥50,000 times durable performance
  • LED service life up to 40000 hours
  • Working temperature -20℃ ~ +55℃ wide environment adaptability
  • Support custom symbol, color housing and connector
  • Complete accessories: Nut, Rubber pad, Waterproof O-ring
  • Fast delivery 1-7 days for retail and wholesale order

Technical Specifications

Mounting Size16mm
Body TypeShort Body Compact
Head TypeFlat Round Head
HousingBlack Aluminum Oxidation
Light TypeRing Blue LED / Multi Color Optional
LED Voltage3V/5V/12V/24V/110V/220V
Rated Load2A 36VDC
Contact Type1NO Normally Open
Operation TypeMomentary Self-Reset Touch Switch
ProtectionIP67 Waterproof / IK08 Impact Resistant
Operation Stroke≤2mm
Operation Pressure≤4N
Terminal4Pin Plug-in Terminal
Shell MaterialNickel Brass / Stainless Steel
Contact Resistance≤50mΩ
Insulation Resistance≥1000MΩ
Dielectric Strength2000VAC
Mechanical Life≥1,000,000 Cycles
Electrical Life≥50,000 Cycles
LED Lifespan≥40000 Hours
Operating Temperature-20℃ ~ +55℃
Custom ServiceCustom Symbol / Housing Color / Connector
ApplicationAutomotive, Industrial Panel, Smart Home, DIY Electronics

Product Advantages

This 16mm short body black metal push button adopts ultra-thin short body design, specially developed for narrow and thin panel installation space. Black aluminum oxidation surface is high-grade, scratch-resistant and non-fading. Equipped with ring blue LED, multiple colors and full voltage optional, clear working status display. Light 4N pressing force and 2mm short stroke bring sensitive touch experience. 1NO normally open configuration matches most 12V/24V low-voltage power control circuits. IP67 waterproof and IK08 impact resistance adapt to dust, splash and daily harsh environment. Super long mechanical and electrical service life, support custom logo and shell color, complete accessories easy to install, ideal for automobile modification, industrial equipment and smart home products.

Applications

  • 16mm ultra-thin panel short body power touch button
  • Automotive 12V/24V blue LED modification switch
  • Industrial control panel compact momentary button
  • Smart home and embedded intelligent equipment switch
  • Computer chassis DIY short body decorative button
  • Electronic DIY project IP67 waterproof replacement switch

16mm short body black housing blue led momentary metal push button 12v 24v 16mm short body black housing blue led momentary metal push button 12v 24v 16mm short body black housing blue led momentary metal push button 12v 24v 16mm short body black housing blue led momentary metal push button 12v 24v

FAQ

1. Mounting size?
Standard 16mm mounting hole diameter.

2. Body feature?
Ultra short body design for limited thin installation space.

3. LED option?
Ring blue LED, multiple colors and full voltage customizable.

4. Press feeling?
≤4N light pressure, ≤2mm short stroke sensitive touch.

5. Protection level?
IP67 waterproof + IK08 impact resistant grade.
