Key Features

• 16mm standard mounting hole for universal panel installation
• High round head actuator shape, classic and durable appearance
• Momentary reset operation type for on-off control
• IP67 full dustproof and waterproof grade for harsh environment

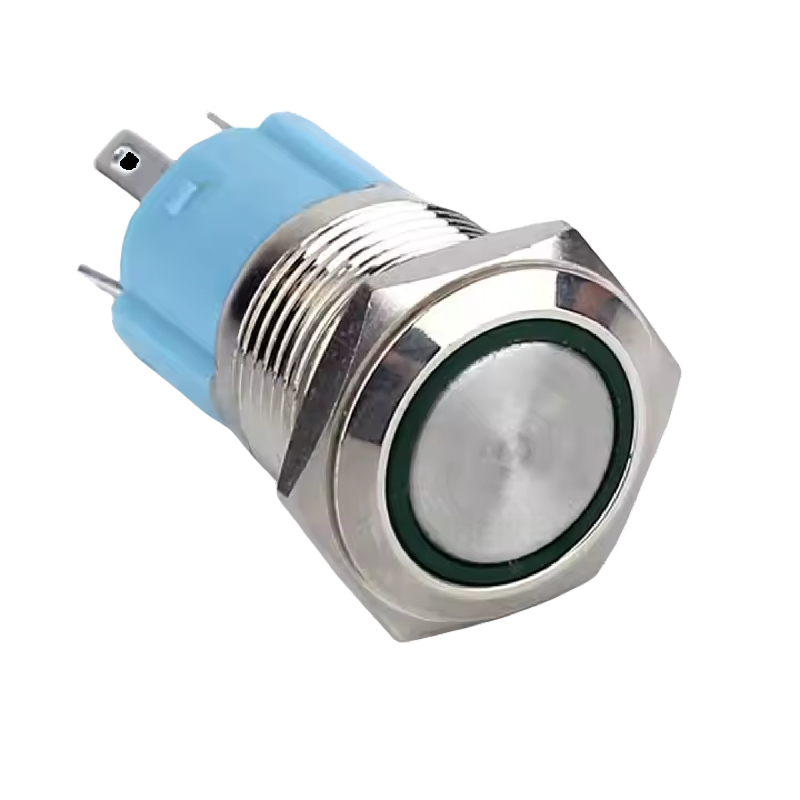

• Built-in ring LED illuminated design for low-light visibility
• Multiple LED color: Blue, Red, Green, Yellow, White, Orange
• Rich LED voltage options: 3V/5V/12V/24V/110V/220V customizable
• 1NO1NC switch combination meets dual signal control needs

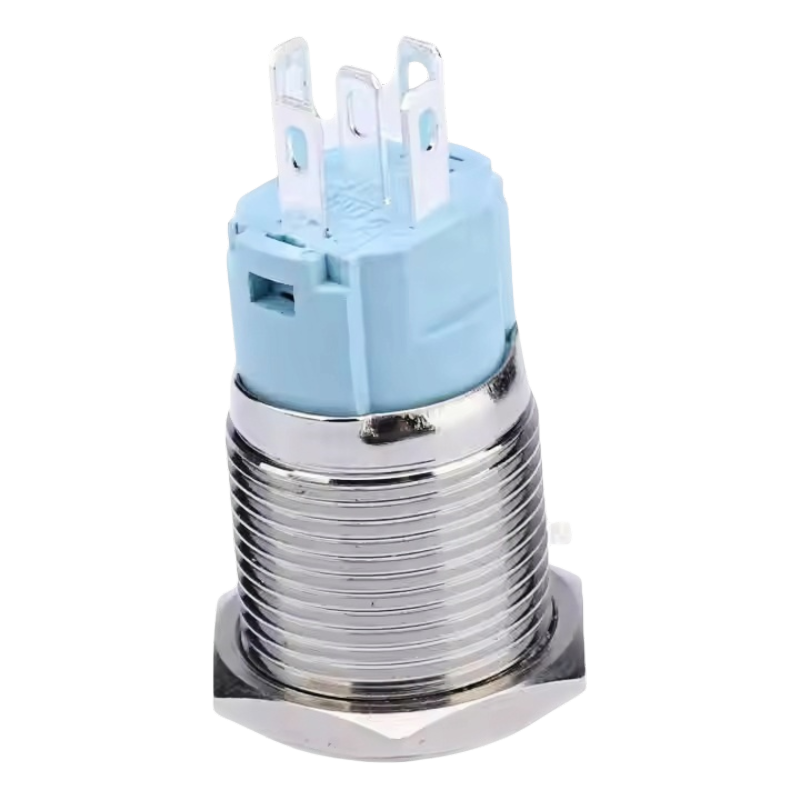

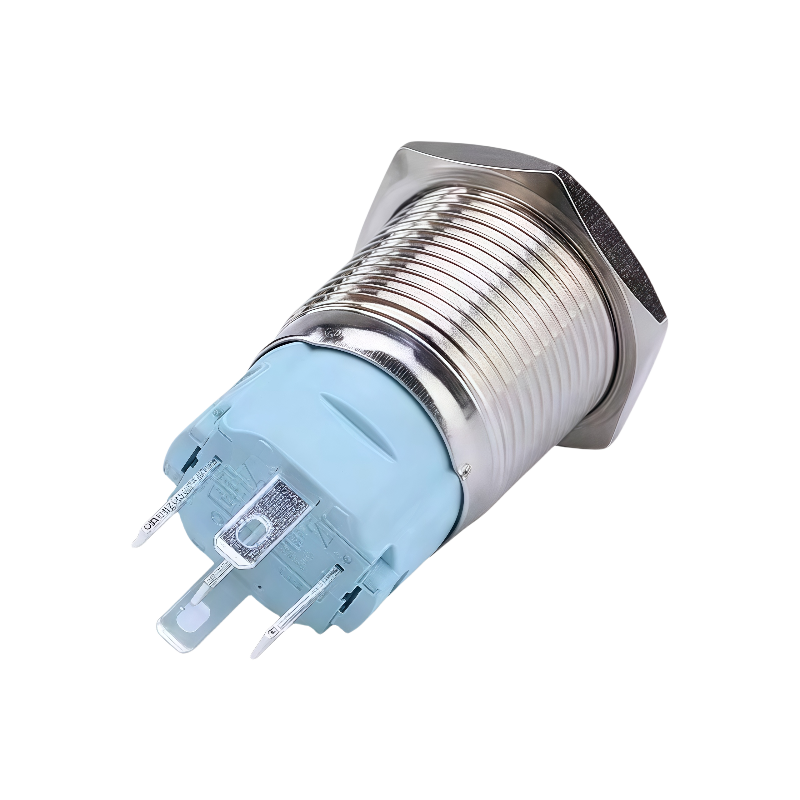

• 5 pin terminals with plug-in connection for easy wiring
• Premium nickel plated brass enclosure, anti-rust anti-corrosion
• Max contact resistance 50mΩ, stable conductive performance
• Insulation resistance ≥1000MΩ, safe electrical isolation
• Dielectric intensity up to 2000VAC high voltage resistance
• Wide working temperature -20°C ~ +55°C adapt to complex conditions
• Silver contact and PIN material, anti-oxidation long service life
• Fast delivery 1-7 days after payment

Technical Specifications

Product Attributes

• Connection Mode: Plug in
• Contact Material: Silver
• PIN Material: Silver
• Contact Operation: 1NO + 1NC , 2NO + 2NC Optional
• Position Mode: Two Position Maintained , Two Position Momentary

Product Advantages

This 16mm IP67 waterproof illuminated push button adopts high round head metal structure with nickel plated brass housing, reaching IP67 dustproof and waterproof level, perfectly suitable for industrial, automotive, marine and outdoor wet environments. It adopts ring LED lighting design with multiple colors and wide voltage optional, clear working status display even in low light. Momentary reset with 1NO1NC contact and 5-pin plug-in terminal, stable conduction, high insulation and high voltage resistance, works reliably in wide temperature range.

Applications

• IP67 waterproof industrial control panel 16mm momentary button
• Automotive and marine ring LED illuminated control switch
• Outdoor low-light environment on-off reset push button
• Mechanical equipment 1NO1NC signal control switch
• 16mm panel plug-in type waterproof LED replacement button

FAQ

1. Mounting size?
Standard 16mm mounting hole size.

2. LED type?
Ring LED illuminated, multiple colors and voltages optional.

3. Protection level?
IP67 professional dustproof and waterproof grade.

4. Contact configuration?
1NO1NC with 5 pin plug-in terminal.

5. Operation mode?
Momentary reset type for on-off connection control.
