Key Features

• 19mm standard mounting size for heavy-duty panel installation
• High current 15A 250V large load capacity for heavy circuit
• Ultra durable metal structure for long-term frequent operation
• Waterproof design adapts to marine, outdoor and harsh environment
• Dual operation mode: Automatic Reset / Self-locking optional
• 1NO switch combination meets mainstream control circuit demand
• Multi LED color: Red, Green, Yellow, Blue, White optional
• Wide optional voltage range: 3V ~ 220V customizable
• Premium housing material: Nickel Plated Brass / Stainless Steel
• Long electrical life up to 500,000 cycles
• Heavy-duty performance for industrial, marine and automotive applications

Technical Specifications

Product Advantages

This 19mm high current 15A waterproof metal button adopts ultra durable heavy-duty construction, supporting 15A 250V large current load. It provides automatic reset and self-locking two operation modes, with 1NO standard contact configuration. Multiple LED colors and 3-220V wide voltage options are available. Made of nickel plated brass and stainless steel, it features waterproof, corrosion-resistant and long service life up to 500,000 cycles, perfectly suitable for industrial equipment, marine facilities and automotive heavy-duty control systems.

Applications

• 19mm 15A high current industrial control panel button
• Marine waterproof heavy duty LED metal push button
• Automotive high load self-locking / reset control switch
• Large mechanical equipment high current start stop button
• Commercial heavy electrical equipment waterproof replacement switch

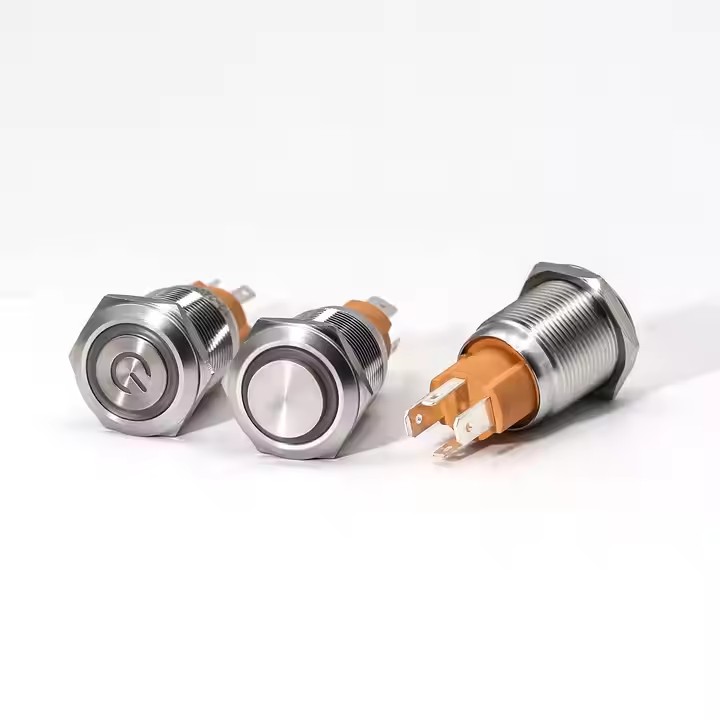

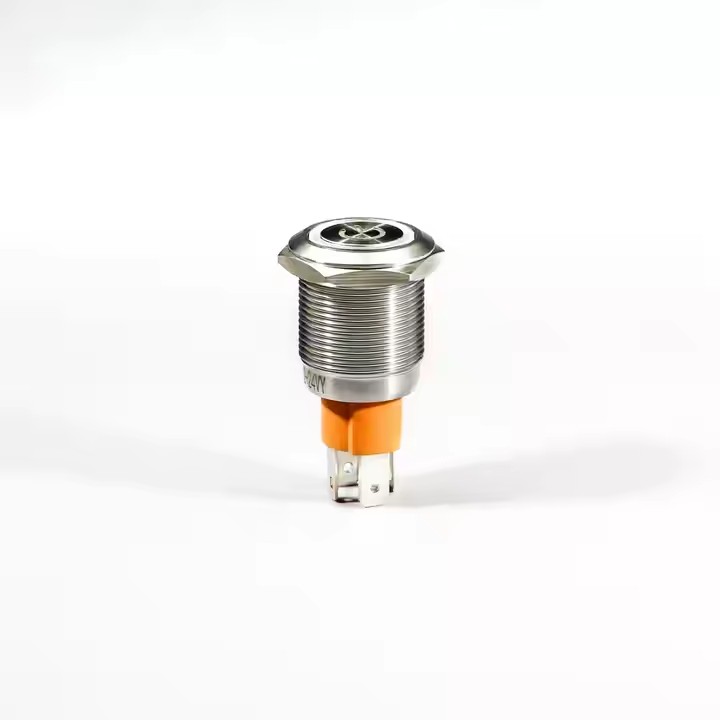

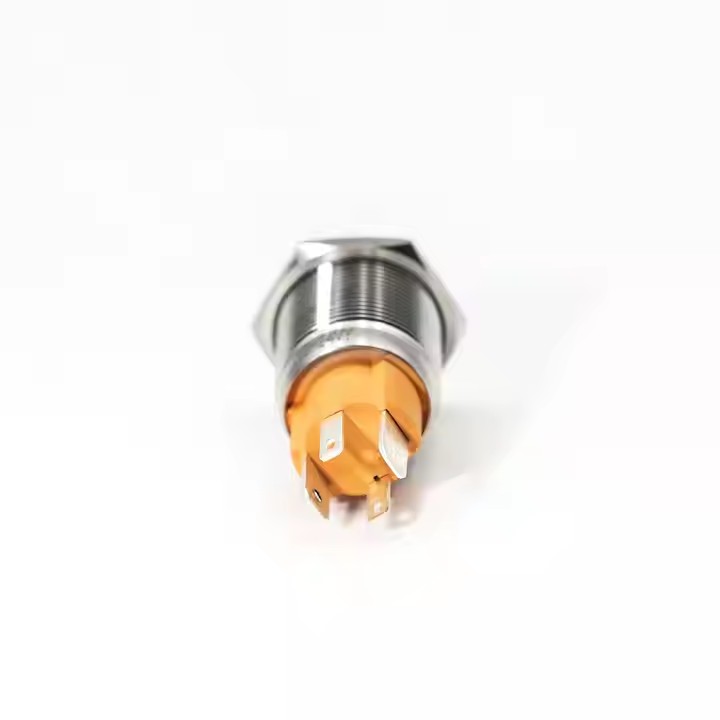

Product images:

FAQ

1. Mounting hole size?
Standard 19mm mounting diameter.

2. Rated current & voltage?
15A max current, 250V max voltage.

3. Operation mode?
Automatic reset and self-locking optional.

4. LED & voltage?
5 colors available, customizable 3V~220V.

5. Main application?
Industrial, marine and automotive heavy duty scenarios.
