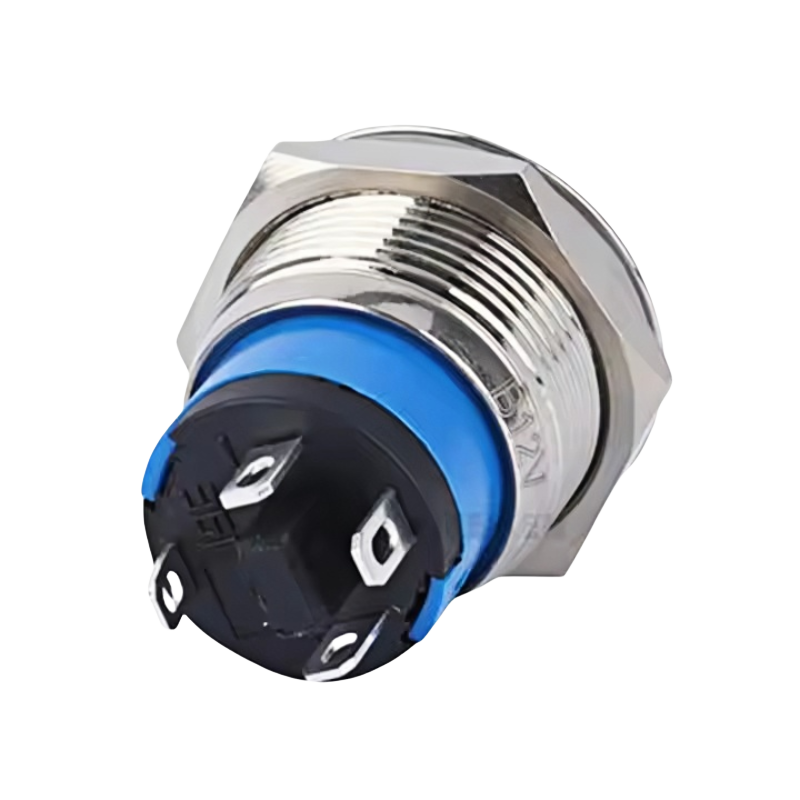

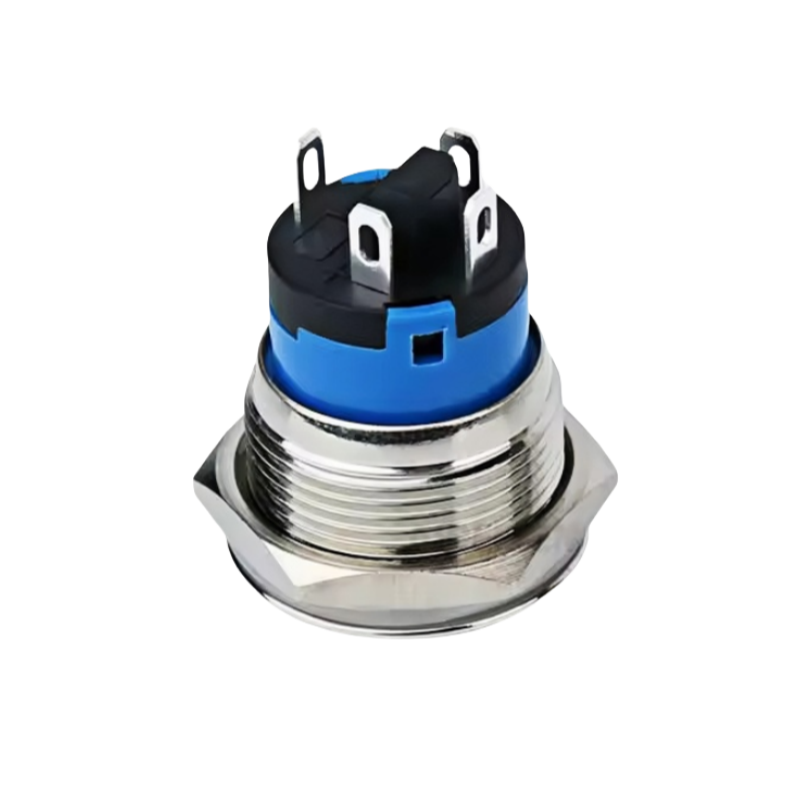

Durable 19mm metal push button switch with 12V dot LED illumination for clear visibility. Supports both momentary and self-locking (latching) operation, ideal for industrial controls, machinery, and automotive applications. Sturdy design with reliable performance and enhanced user feedback.
Mounting Hole | 19mm |
Operation Type | Momentary / Latching |
Switch Combination | 1NO |
Head Type | High round head /Flat head / Domed head |
Terminal type | Solder terminal |
Enclosure Material | Brass nickel plated(or stainless steel,aluminum oxided) |
Delivery Days | 3-7 days after payment received |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
| Connection | |
|---|---|
| Contact Material | |
| PIN Material | |
| Operation of Contact | |
| Position |
