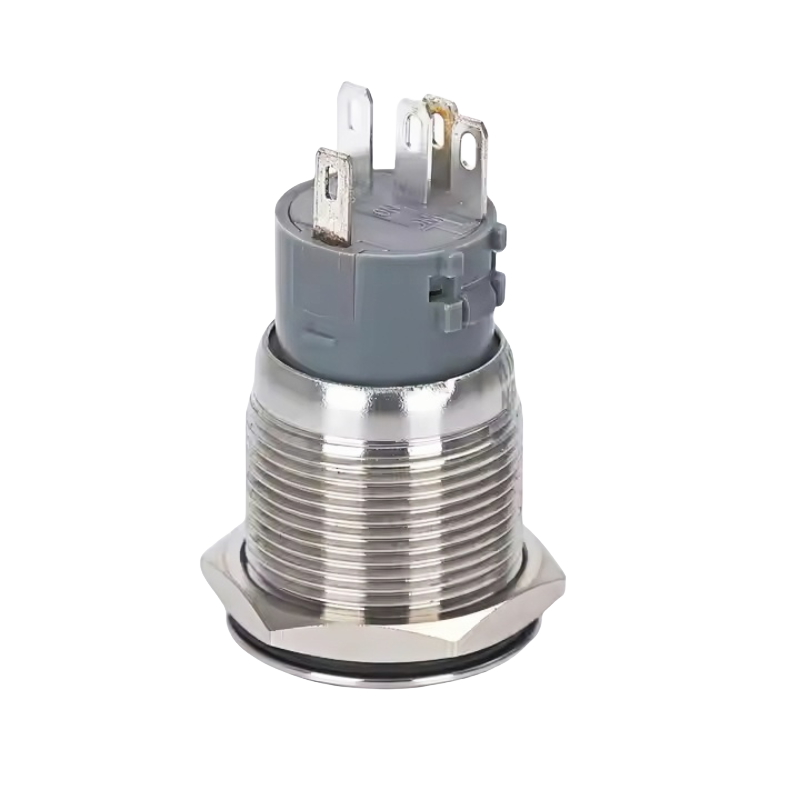

A durable, high-current switch with integrated LED indicator, designed for use in new energy electric vehicles (NEVs) and other demanding power control applications. Features a sleek metal housing, excellent resistance to wear and vibration, and clear visual feedback for safe, reliable operation.
Mounting Hole | 19mm |
Operation Type | Momentary (Reset) |
Switch Combination | 1NO1NC |
Actuator Shape | Flat Round Head |
Terminal type | 5 Pin Terminals |
Illuminated or not | Yes |
Led Voltage | 12V (or 3V/5V/24V/110V/220V/others) |
Led Color | Blue (Red, Green, Yellow,White,Orange available) |
Illuminated Type | Ring and power logo illuminated |
Enclosure Material | Nickel Plated Brass |
Delivery Days | 1-7 days |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
