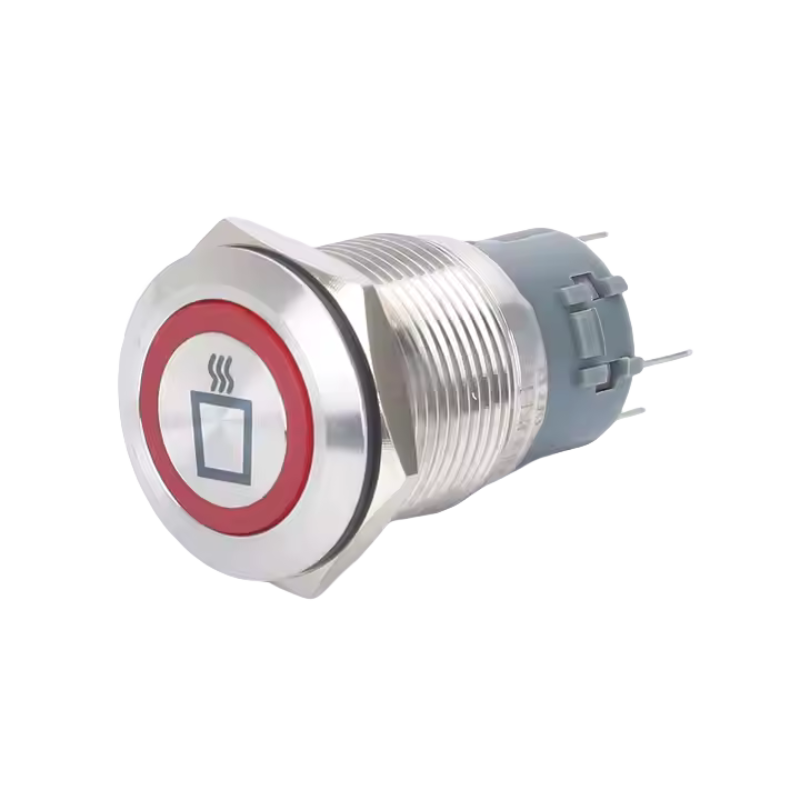

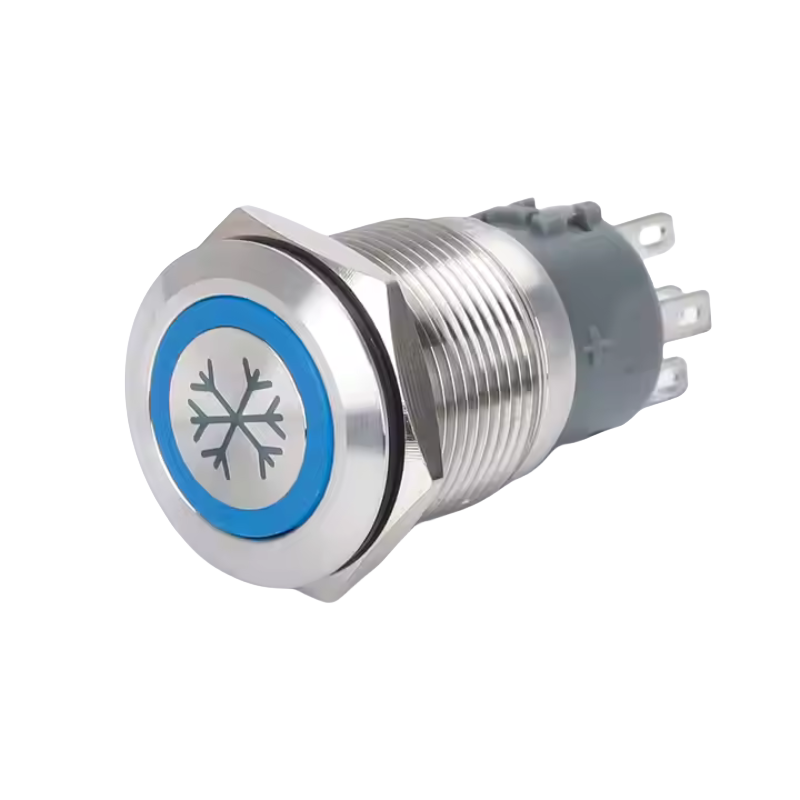

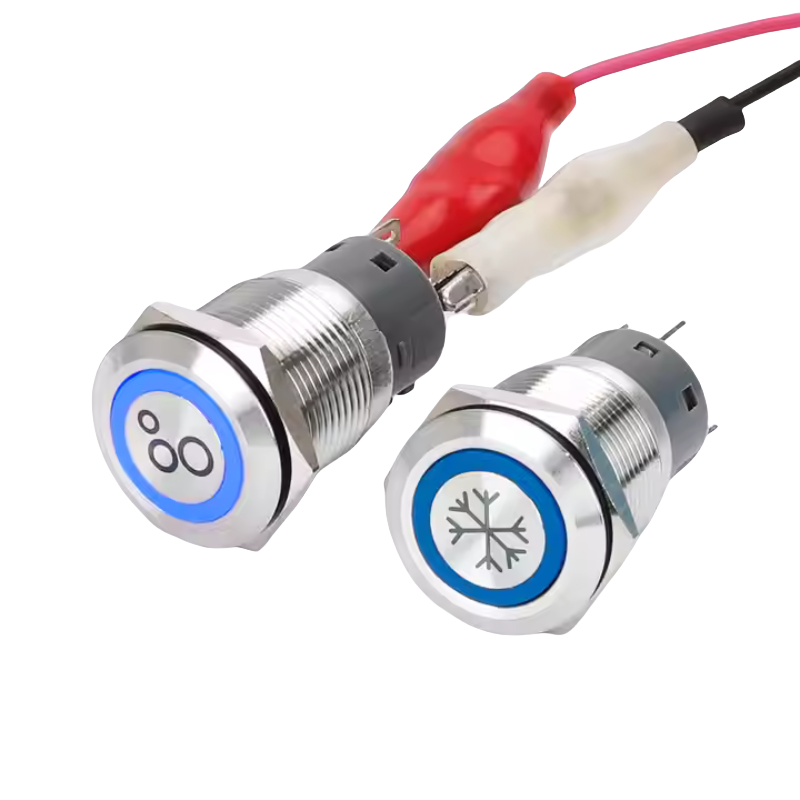

Durable 19mm flat metal push button switch designed for high reliability and performance. Suitable for high-current applications, this metal push button features an integrated LED indicator, making it ideal for use in new energy electric vehicles. Its robust construction ensures long-lasting operation in demanding environments.
| Mounting Hole | 19mm |
| Operation Type | Momentary (Reset) |
| Switch Combination | 1NO1NC |
| Actuator Shape | Flat Round Head |
| Terminal Type | 5 Pin Terminals |
| Illuminated | Yes |
| LED Voltage | 12V / 3V/5V/24V/110V/220V Custom |
| LED Color | Blue, Red, Green, Yellow, White, Orange |
| Illuminated Type | Ring and Power Logo Illuminated |
| Enclosure Material | Nickel Plated Brass |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~ +55°C |
| Delivery Days | 1-7 Days |

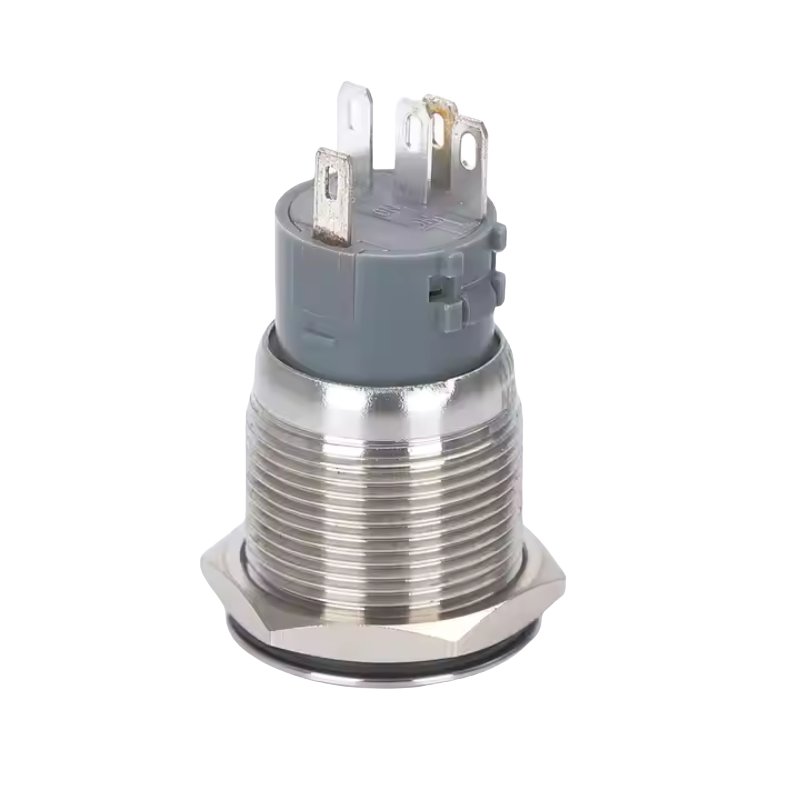

This 19mm flat round head metal push button adopts premium nickel plated brass housing with high reliability and high current bearing capacity. Adopt 1NO1NC contact structure and 5-pin plug-in terminal, easy to install and wire. Support ring and power logo dual LED lighting, multiple colors and wide voltage optional. With low contact resistance, high insulation and high voltage resistance, it works stably from -20°C to +55°C, perfectly designed for new energy electric vehicle and high-current industrial equipment applications.
1. What is the mounting size?
Standard 19mm mounting hole for direct panel installation.
2. Does it have LED light?
Yes, ring and power logo dual illuminated, multi-color optional.
3. LED voltage customizable?
Support 3V/5V/12V/24V/110V/220V and other custom voltage.
4. Contact configuration?
1NO1NC with 5 pin plug-in terminal.
5. Application scenario?
Mainly for new energy electric vehicle and high current industrial control.
| Connection | |
|---|---|
| Contact Material | |
| PIN Material | |
| Operation of Contact |
