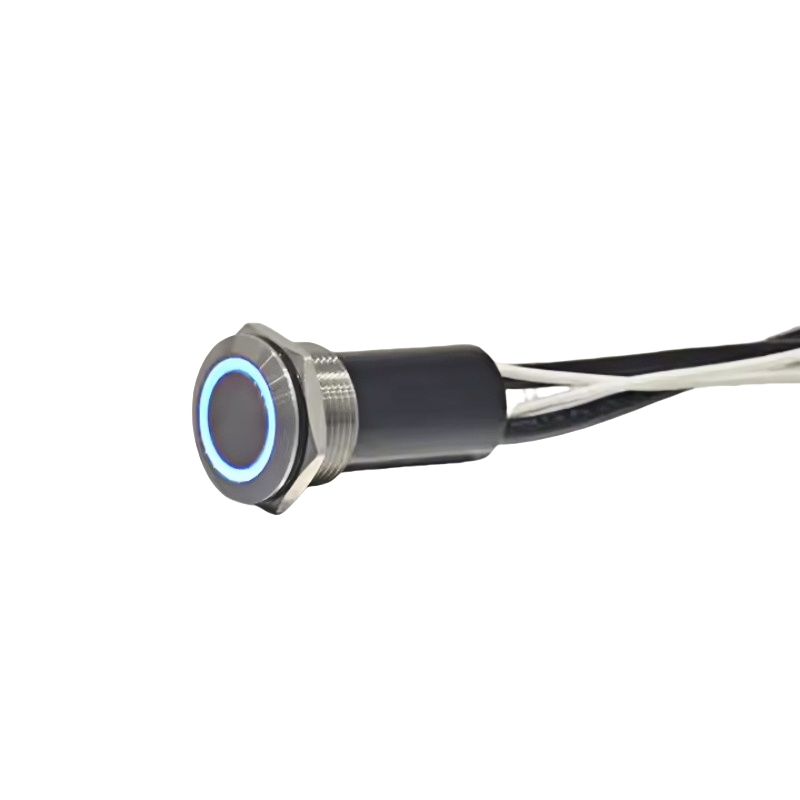

Durable 19mm high-current push button switch with an IP68 waterproof rating and sealed cable design, built for extreme environments. Rated for up to 20A, it’s ideal for marine, boat, RV, and outdoor applications. Features a bright 12V blue LED indicator for clear visibility and reliable operation in wet or dusty conditions.
| Mounting Size | 19mm |
| Rated Current | 20A High Current |
| Waterproof Grade | IP68 Full Sealed Waterproof |
| Cable Design | 150mm Integrated Sealed Cable |
| Head Type | Flat Head |
| LED Light | 12V Blue LED |
| Contact Type | 1NO Normally Open |
| Operation Type | Momentary Self-Reset |
| Shell Material | Stainless Steel |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000VAC |
| Operating Temperature | -20℃ ~ +55℃ |
| Connection | Sealed Cable Outlet |
| Application | Marine, Boat, Yacht, RV, High Power Outdoor Equipment |
This 19mm 20A high-current IP68 waterproof metal push button adopts full sealed waterproof structure, reaching IP68 deep waterproof level, suitable for marine wet splash and immersion environment. Rated 20A large current, can bear high-power equipment load, far exceeding ordinary small current buttons. Integrally formed 150mm sealed cable avoids wiring gaps and enhances overall waterproof performance. Flat head appearance is simple and easy to operate, built-in 12V blue LED clearly displays working state. Stainless steel body is anti-rust and anti-seawater corrosion, momentary 1NO configuration meets various high-power trigger control needs, ideal for yacht, boat, RV and outdoor high-power equipment matching.
1. Mounting size?
Standard 19mm mounting hole diameter.
2. Current rating?
20A high current for high power circuit control.
3. Waterproof level?
IP68 full sealed waterproof, dustproof and immersion resistant.
4. Cable feature?
Comes with 150mm integrated sealed waterproof cable.
5. LED specification?
Built-in 12V blue LED for working status indication.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material |
