Our company’s piezoelectric switch housing is made of carefully selected aluminum oxide material, with bright and durable colors, anti-corrosion, rust proof, anti-collision and pressure resistant, flame retardant and high temperature resistant, precision manufacturing, high quality, and customizable.

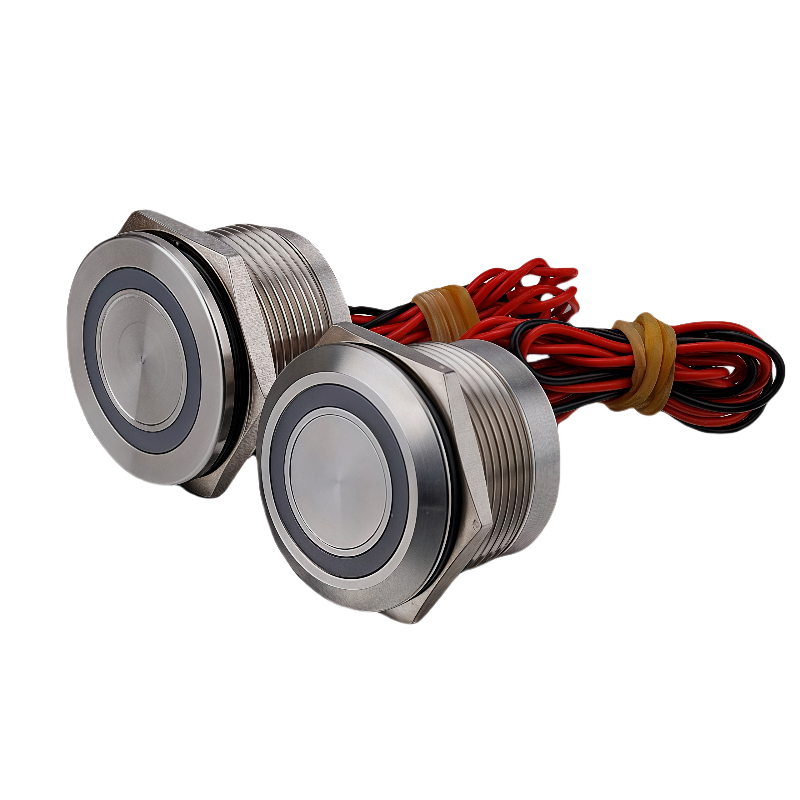

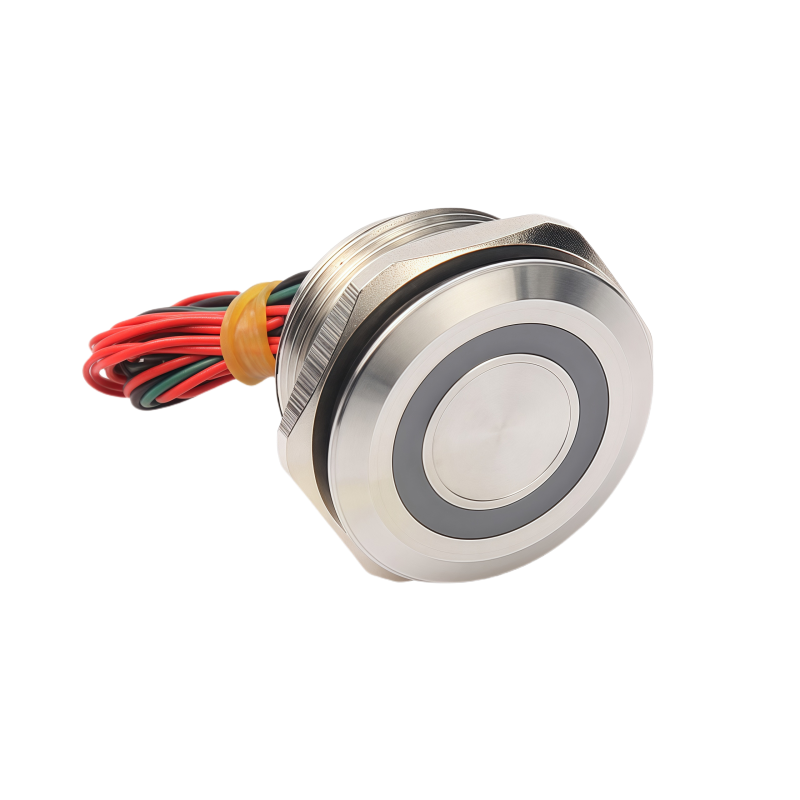

| Product Name | 19mm IK69 12V Stainless Steel Momentary Piezo Touch Button |
| Product Model | SCJ7P19FCF10+Custom Attributes |
| Category | Piezo Switches |
| Mounting Size | 19mm |
| Operation Type | Momentary (Touch Type) |
| Bezel Material | Metal |
| Head Material | SUS304 Stainless Steel |
| Shell Material | Aluminum Oxide, Anodized Metal, SUS304 |
| Protection Grade | IP68, IK69 |
| Working Temperature | -20℃ ~ 55℃ / -40℃ ~ +75℃ |
| Operating Force | 4 ~ 8N |
| Rated Voltage | 3-24V (12V Special Version) |
| Working Current | Below 20mA |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC, 50HZ/60HZ |
| Contact Material | Gold, Silver |
| Contact Configuration | 01-NC, 10-NO, 11-1NO+1NC, 22-2NO+2NC, 33-3NO+3NC, Prolongated Pulse |
| Head Type | Concave, Flat, Round, Square & Custom Shapes |
| Lamp Type | Dot Lamp, Ring Lamp (Illuminated / Non-Illuminated) |
| LED Color | Blue, Green, Orange, Purple, Red, White, Yellow, Dual Color, TriColor |
| LED Voltage | 3V/5V/6V/12V/24V/36V/110V/220V (AC/DC Universal) |
| Shell Length | 8/9/10/12/13/16/17/17.5/18mm & Custom |

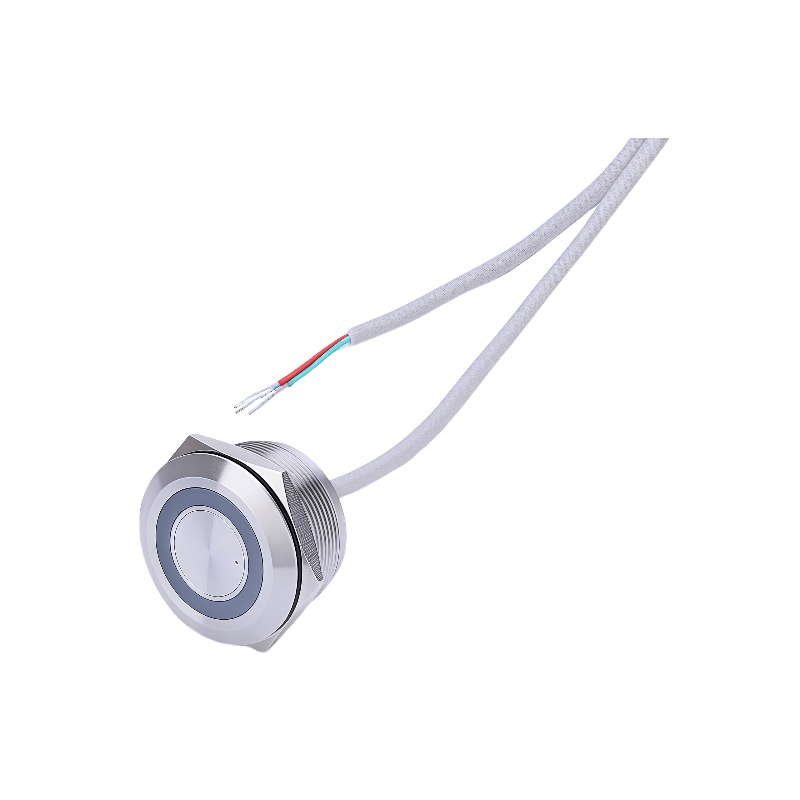

| Connection Type | Welding, Prewired |
| Wire Specification | 24AWG / 26AWG, 150mm / 300mm (Customizable) |
| Mechanical Life | 1,000,000 Times |
| Electrical Life | 1,000,000 Times |
| Total Lifespan | 40000 Hours |
| Execution Standard | CE: EN 60947-5-1:2017 |
| Application | 12V Industrial Equipment, Smart Devices, Outdoor & Wet Environment Control |
This 19mm piezo touch button is specially customized for 12V systems, equipped with IP68 waterproof, dustproof and IK69 anti-impact dual protection, fully adapting to complex industrial and outdoor environments. It adopts SUS304 stainless steel and high-quality aluminum oxide material, featuring rust prevention, corrosion resistance, flame retardancy and high temperature resistance. The momentary touch structure responds quickly, which is suitable for instantaneous signal triggering. The product has 3-24V wide voltage compatibility and ultra-low operating current, realizing energy-saving operation. Welding and prewired dual wiring methods meet different on-site installation requirements. Gold and silver contacts ensure stable electrical conduction and long service life. Two temperature adaptation ranges enable normal operation in ultra-low and ultra-high temperature scenes. It supports full customization including head shape, lamp style, LED parameters, contact modes and shell specifications to meet personalized project needs. With 1 million mechanical and electrical cycles and 40000-hour total lifespan, the product is durable and reliable. Complying with CE international standards, it is an ideal control component for 12V industrial equipment, smart terminals and wet environment devices.
| Technical Parameter: | ||
| Working Temperature: | -20° – 55° | |
| Operating Temperature: | -40°C ~+75°C | |
| Terminal Type: | Wired with 150/300mm long 24AWG/26AWG or Customized | |
| Operating Force: | 4 to 8N | |
| Current: | below 20mA | |
| Rating: | 3- 24V, | |
| Contact Resistance: | 50mΩ max | |
| Insulation Resistance: | 1000MΩ Min | |
| Dielectric Intensity: | 2000VAC, 50HZ/60HZ | |
| Material: | SUS304 | |
| Life expectancy : | 40000hours | |
| Mechanical Life: | 1000000 times | |
| Electrical Life: | 1000000 times | |
| Protection Grade: | IP68 ，IK69 or Higher levels needs confirmation | |
| Compliant With Standards： | CE: EN 60947-5-1:2017 | |
1. What is the installation size and operation type?
The mounting hole is 19mm, and it is momentary touch piezo switch.
2. What protection levels and main materials?
It has IP68 waterproof & dustproof and IK69 anti-impact grades; head is SUS304 stainless steel, shell is aluminum oxide.
3. What are the voltage and current parameters?
Rated voltage 3-24V (optimized for 12V systems), working current below 20mA.
4. Temperature range and operating force?
Two ranges: -20℃~55℃ and -40℃~+75℃; operating force is 4 to 8N.
5. Contact material and electrical performance?
Contacts are gold and silver; max contact resistance 50mΩ, min insulation resistance 1000MΩ, withstand 2000VAC.
6. Wiring methods and wire specifications?
Support welding and prewired; 24AWG/26AWG wire, 150mm/300mm length, customizable.
7. What customizable parts are available?
Head style, lamp type, LED color & voltage, contact configuration and shell size can be customized.
8. Service life and executive standard?
Mechanical and electrical life reach 1 million times, total lifespan 40000 hours; comply with CE EN 60947-5-1.
9. What main equipment is it suitable for?
Mainly used for 12V industrial equipment, smart devices, outdoor and wet environment control systems.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | Concave with Chamfer, Concave With Round, Flat, Flat With Chamfer, Flat with Round, High Round, Square |
| Lamp | |
| Lamp Type | |
| LED Color | Blue, Double Color, Green, Orange, other, Purple, Red, TriColor, White, Yellow |
| LED Pressure | 12V, 24, 24V, 250V, 3V, 5V, 6V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 3V, AC 6V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 3V, DC 6V, other |
| Length of Shell | |
| Operation of Contact | 01-NC, 10-NO, 11 -1NO + 1NC, 22 -2NO + 2NC, 33 -3NO + 3NC, other, Prolongated Pulse |

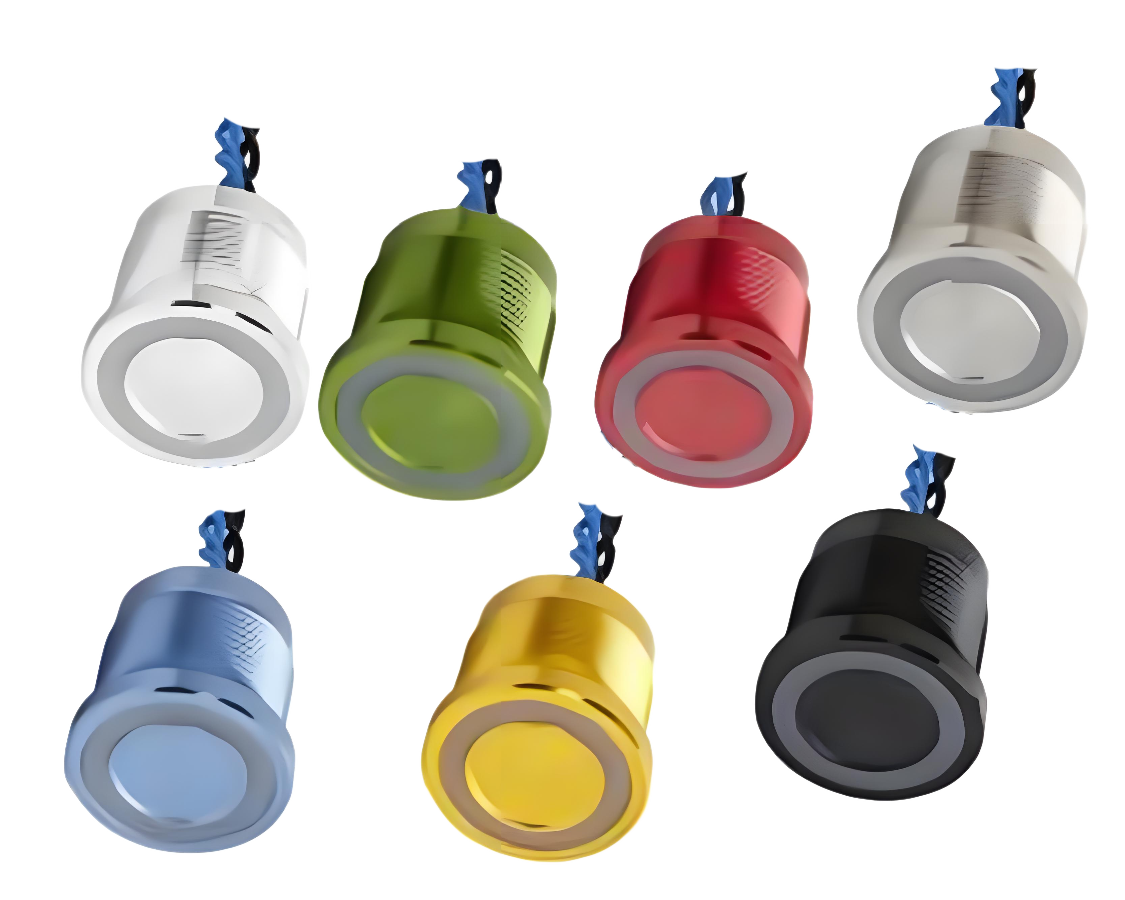

| Shell Material | Aluminum Oxide(Black), Blue Anodized, Gold Anodized, Green Anodized, other, Purple Anodized, Red Anodized, Silver Anodized, SUS304 |
