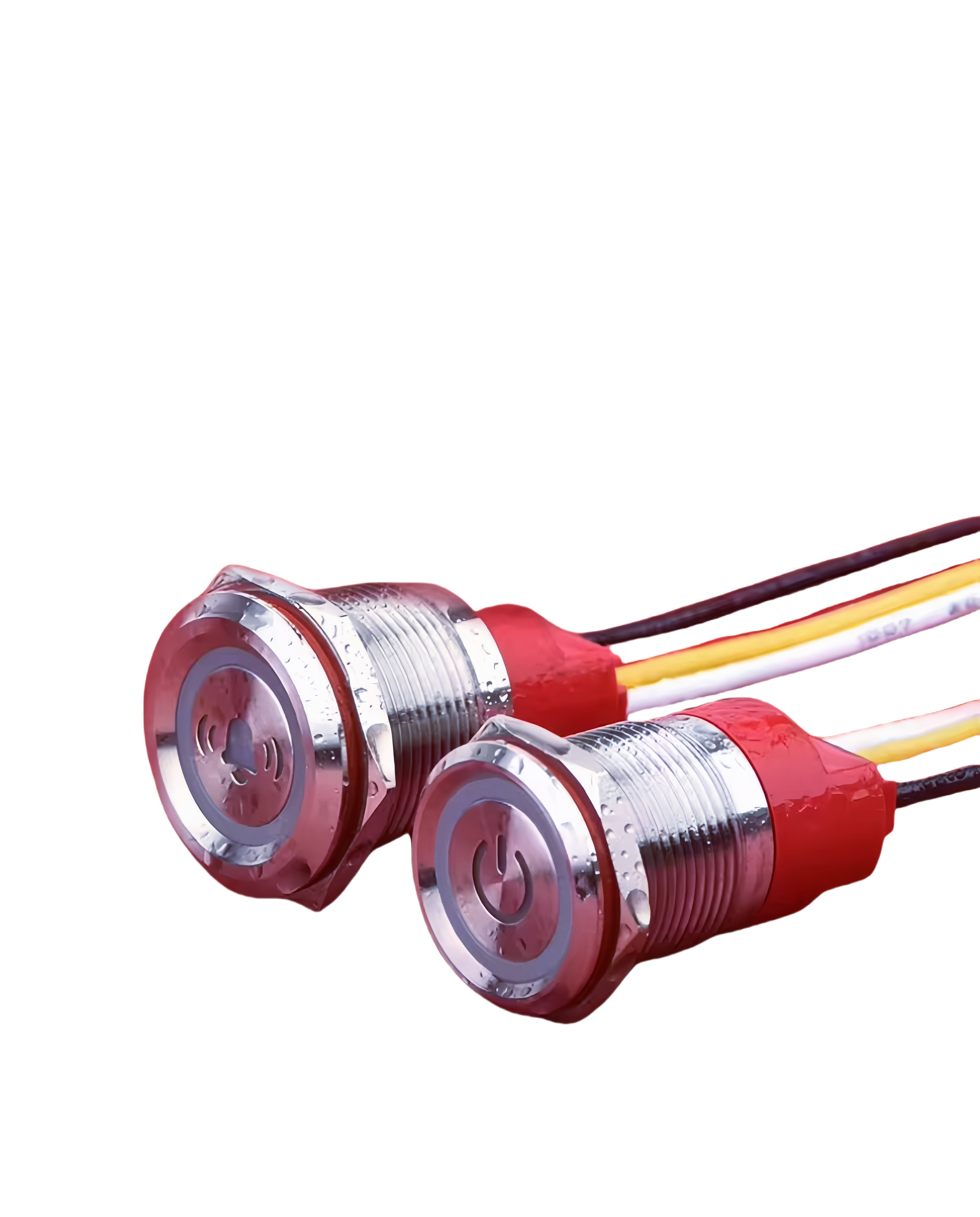

This 19mm touch dimmer switch features a durable metal push button with momentary or latching function. Equipped with red and green LED indicators for clear status visibility, it allows easy control of lighting systems. The included 150mm wiring harness ensures quick and secure installation. Ideal for automotive, marine, and industrial applications requiring compact, reliable switching solutions.
| Max. Current | 5A |
| Max. Voltage | 250vac |
| Place of Origin | China |
| LED | Yes |
| Application | Home appliance |
| Material | Metal |
| Structure | Electronic |
| Head Type | Round Head |
| Terminal Type | Ring terminal |
| Whether the smart | NO |
| illuminated Type | Ring illuminated |
| IP level | Ip67 |
| Switch Combination | 1NO1NC |
This 19mm touch dimmer metal push button switch is designed for lighting and dimmer control systems. It supports touch dimming and dual operation modes: momentary and latching. Red and green LED provides clear status indication. IP67 waterproof rating ensures stable performance in humid, outdoor and harsh environments. The 150mm wiring harness supports quick and easy installation with customizable length options. It is widely used in automotive, marine, home appliance and industrial light control.
1. What is the mounting size?
Standard 19mm mounting hole size.
2. Does it support touch dimmer function?
Yes, it is a touch dimmer switch for lighting control.
3. What LED colors does it have?
Red and green dual LED for status indication.
4. Is it IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.
5. How long is the wiring harness?
Standard 150mm, length can be customized.
| Connection | |
|---|---|
| Contact Material | |
| Operation of Contact | |
| PIN Material | |
| Position |
