Key Features

• High-power 50W load design for heavy-duty industrial working conditions
• 210mm compact body, optional stainless steel and PP dual materials
• Built-in alarm function for liquid level monitoring and over-limit protection
• Multi-voltage compatibility: 12V, 24V, 100V for diverse circuits
• Max 220VDC voltage and 1.5A current load capacity
• Three contact modes: NO / NC / Change Over optional
• IP67 waterproof grade for wet and humid environments
• Wide working temperature: -10℃ ~ +85℃ for general industry
• Standard 350mm cable length, support customized wire length
• Rugged float type structure, stable and long service life
• 1-year factory warranty for reliable after-sales service
• Full OEM, ODM, OBM personalized customization support
• Perfect for tank, reservoir and fluid management systems

Technical Specifications

Product Attributes

• Type: Float Level Sensor with Alarm
• Material: SS / PP
• Body Size: 210mm
• IP Rating: IP67
• Temperature Range: -10℃ ~ 85℃
• Adaptable Voltage: 12V / 24V / 100V
• Rated Parameter: 220VDC / 1.5A / 50W
• Contact: NO / NC / Change Over
• Cable: 350mm Customizable
• Custom: OEM / ODM / OBM Available

Product Advantages

This 50W high-power float switch adopts heavy-duty industrial design, with stainless steel and PP two material options to meet different anti-corrosion demands. The 210mm compact body is easy to install, and it supports 12V, 24V and 100V multi-voltage matching. With 220VDC, 1.5A and 50W load capacity, as well as three optional contact modes, it is compatible with most industrial control circuits. Equipped with liquid level alarm function and IP67 waterproof performance, it works stably at -10℃~85℃. The standard cable can be customized, 1-year warranty and full customization services ensure it fits various industrial fluid control projects.

Applications

• Industrial water tank real-time monitoring and liquid level alarm system
• Water storage tank and reservoir high-power level control equipment
• 12V/24V/100V circuit matching mechanical level sensor
• Fluid management equipment automatic protection and alarm device
• General industrial equipment submerged float level switch

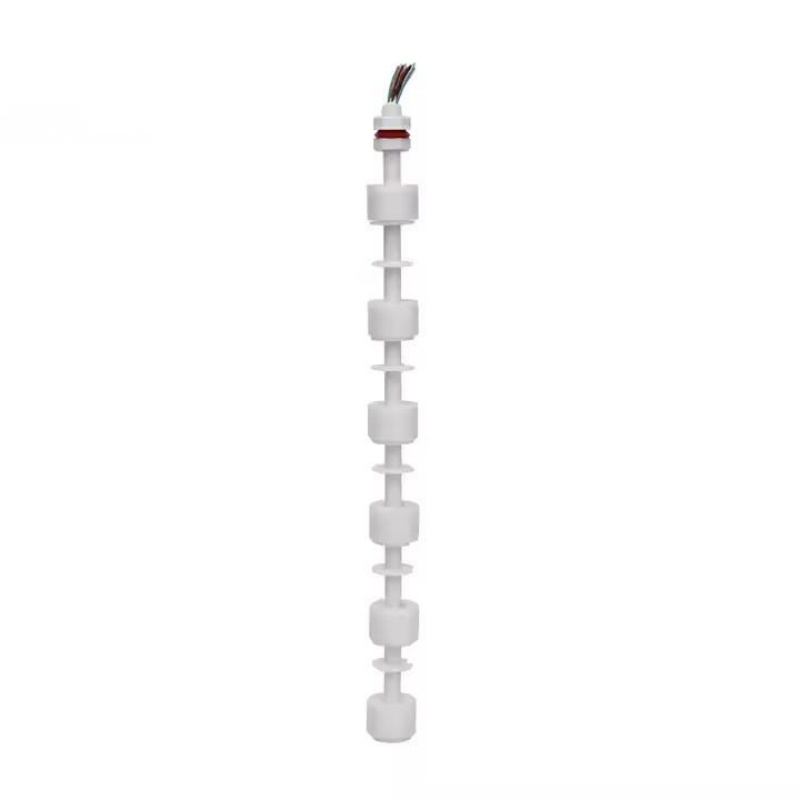

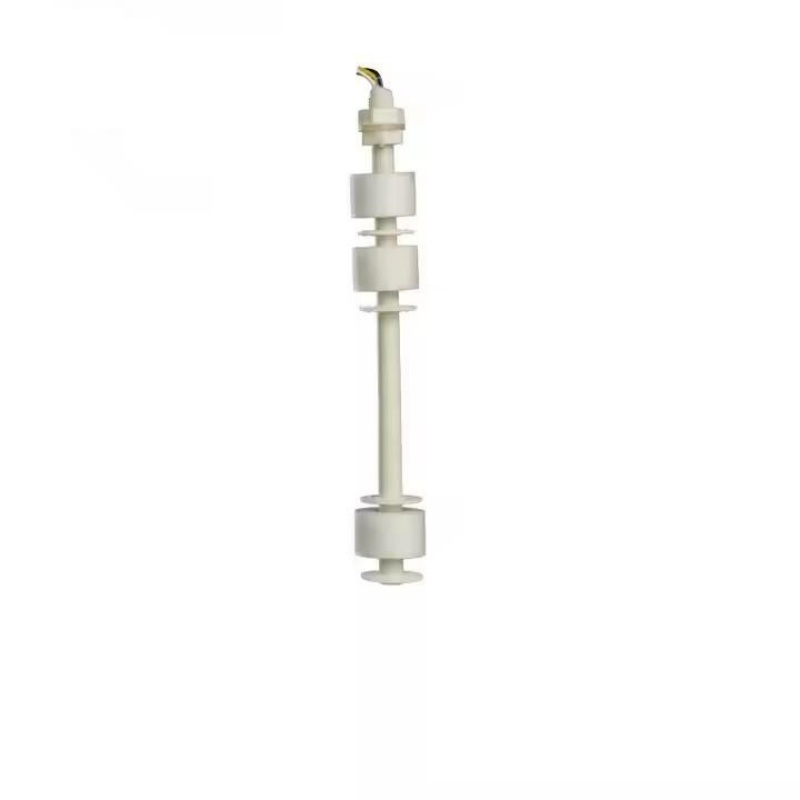

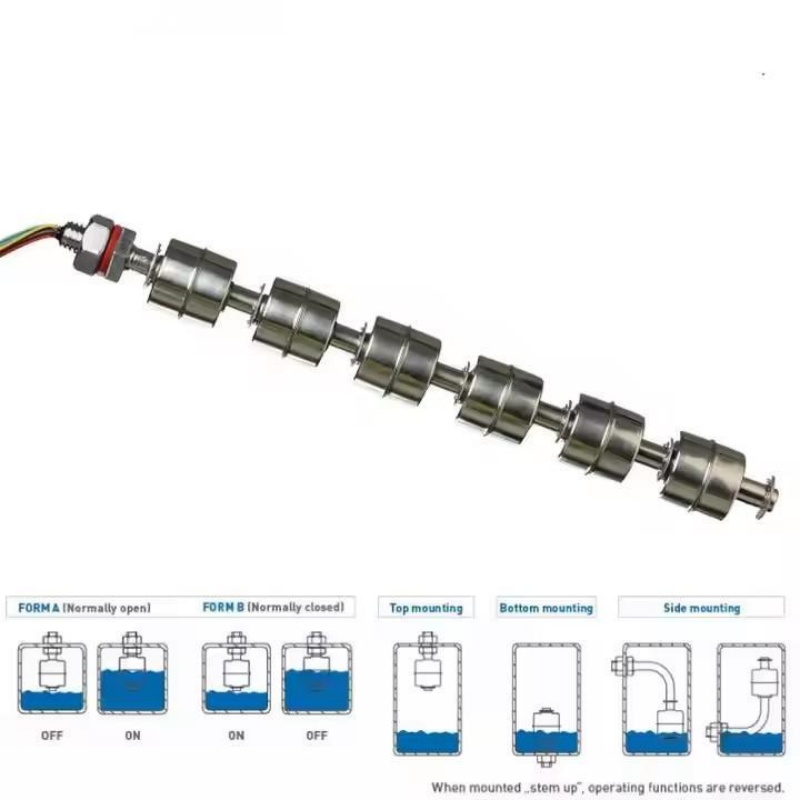

Product images

FAQ

1. What materials can be selected for this float switch?
Two optional materials: stainless steel (SS) and PP plastic for different working media.

2. What is the overall size of the sensor?
The standard body length is 210mm, compact for regular installation space.

3. What voltage systems does it support?
It is compatible with 12V, 24V and 100V circuits, and the maximum voltage is 220VDC.

4. What is the maximum load power and current?
The max current is 1.5A and the max contact power reaches 50W.

5. How many contact modes are available?
Three modes: Normally Open, Normally Closed and Change Over for selection.

6. Does it have waterproof and alarm functions?
It features IP67 waterproof grade and built-in liquid level alarm function.

7. What are the main application scenarios?
Mainly used for industrial water tanks, reservoirs and fluid equipment level monitoring and alarm.
