Key Features

• 22mm standard mounting hole for universal panel installation
• Classic flat round head ergonomic design easy to press
• Black premium aluminum oxidation shell anti-scratch & fade-proof
• Dual color RB red blue LED ring light with power logo
• 12V standard LED voltage compatible 12V 24V 220V system
• 1NO normally open contact simple and stable circuit control
• Dual function: Momentary reset / Self-locking latching optional
• IP68 high-level waterproof dustproof, fully sealed protection
• IK10 high impact resistance anti-collision anti-vibration

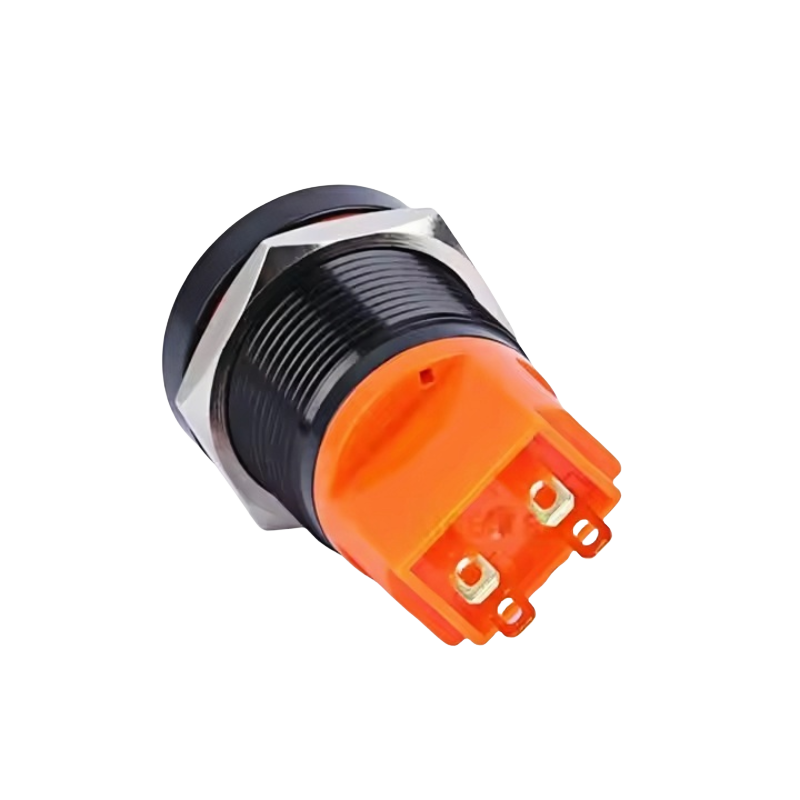

• 4Pin standard terminal plug-in type easy wiring installation
• Max contact resistance ≤50mΩ stable electrical conduction
• Insulation resistance ≥1000MΩ, dielectric strength up to 2000VAC
• LED service life up to 40000 hours long lifespan
• Electrical life up to 50000 times durable performance
• Working temperature: -20℃ ~ +55℃ adapt to various environment
• High-quality 304 stainless steel & PC composite material
• Silver alloy contact anti-oxidation safe and reliable
• Fast delivery 1-7 days for retail and wholesale order

Technical Specifications

Product Advantages

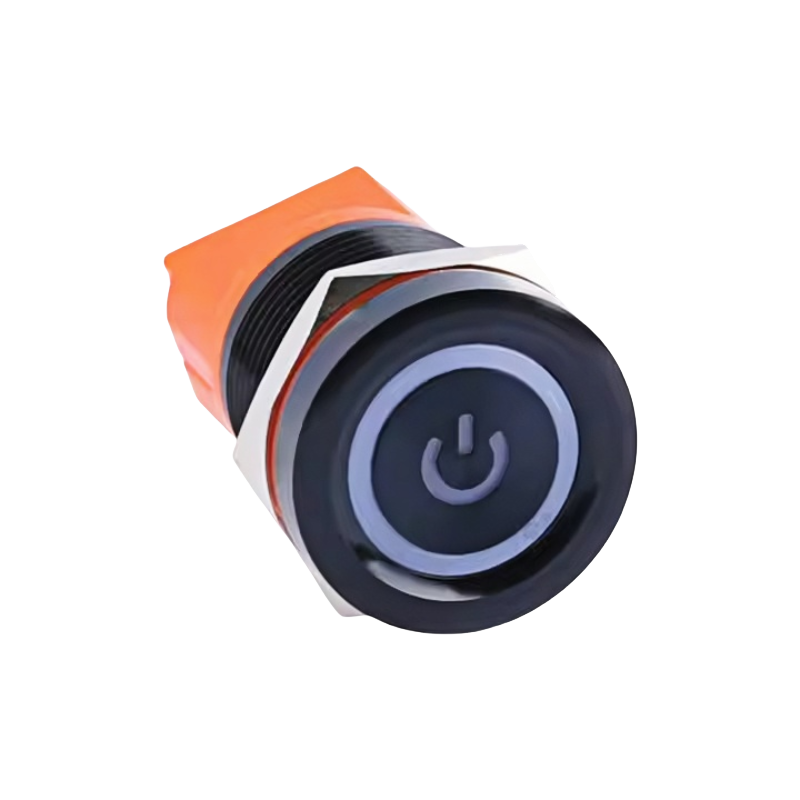

This 22mm flat head 1NO metal push button adopts high-grade black aluminum oxidation surface, matte texture wear-resistant and not easy to fade. Built-in red and blue dual-color ring LED with power symbol logo, different colors display different working status, clear and intuitive. Support 12V, 24V DC and 220V AC multi-voltage universal use. Optional momentary self-reset and self-locking two working modes to meet different control logic. Upgraded IP68 fully sealed waterproof plus IK10 impact resistance, suitable for outdoor, humid, dusty and harsh industrial environment. 4Pin plug-in terminal is convenient for quick wiring and replacement, long LED and electrical service life, cost-effective for equipment matching and wholesale.

Applications

• 22mm industrial control panel dual-color LED indicator button
• Mechanical equipment and automation power control switch
• 12V/24V vehicle RV modified status display button
• 220V household electrical and intelligent equipment control
• Outdoor waterproof machinery and humid environment panel
• 22mm hole IP68 high waterproof dual-color LED button replacement

FAQ

1. Mounting size?
Standard 22mm mounting hole diameter.

2. LED feature?
Red and blue dual color, ring light plus power logo dual display.

3. Waterproof level?
IP68 full sealed high waterproof grade, IK10 impact resistant.

4. Voltage compatibility?
12V LED, compatible with 12V 24V DC and 220V AC systems.

5. Function mode?
Support momentary reset and self-locking latching two modes.
