Key Features

• Standard 22mm mounting hole for universal panel installation
• Minimalist flat head black appearance with smooth touch
• Ring & power logo dual illuminated design
• Red and blue bi-color LED, power off blue / power on red
• Multi voltage optional:12V/24V/36V/110V/220V/250VAC
• Multiple current spec:3A/5A/6A optional for different loads
• 1NO normally open simple and practical circuit design
• Momentary / Latching dual operation mode optional
• IP68 full waterproof + IK10 high impact resistance
• Premium 316 stainless steel & aluminum oxidation housing

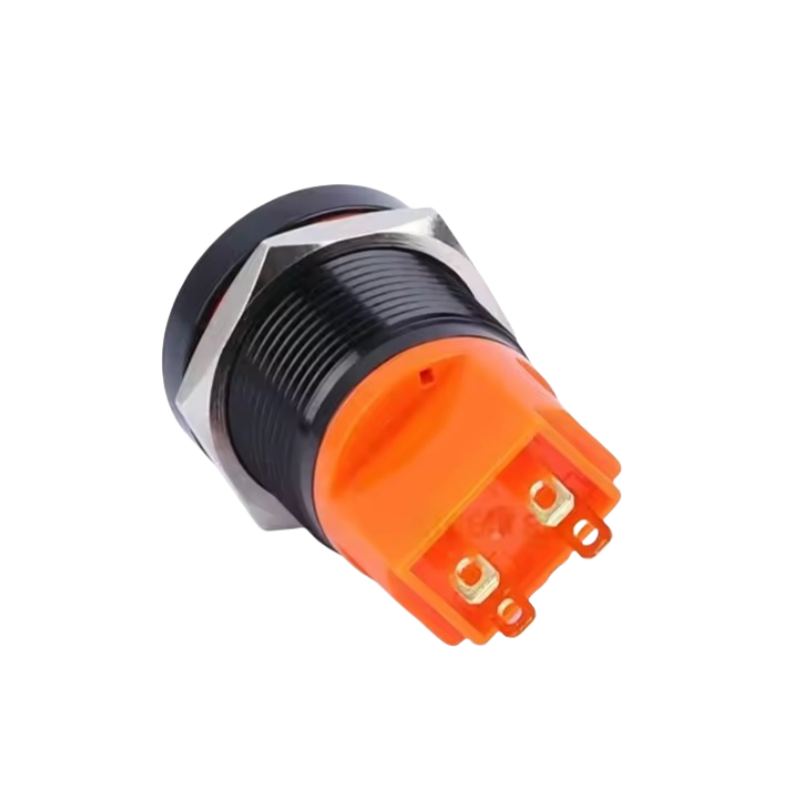

• 4Pin standard plug-in terminal easy wiring assembly
• Gold-plated pin terminal anti-oxidation stable connection
• Working temperature -25℃ ~ +55℃ wide environment adaptability
• Contact resistance ≤50mΩ stable electrical conduction
• Insulation resistance ≥50MΩ, dielectric strength ≥1000V
• LED lifespan up to 40000 hours long service life
• Electrical life over 50,000 cycles durable performance
• Nut torque 5~14Nm firm and stable installation
• CE RoHS certified safe and environmental friendly
• Custom color & voltage & logo support available

Technical Specifications

Product Advantages

This 22mm flat head bi-color ring LED push button adopts red-blue dual color design, blue light for power off, red light for power on, clear working status distinction. IP68 deep waterproof together with IK10 anti-collision grade, adapts to wet, dust and harsh industrial and marine environment. Support 12V to 220V full voltage and 3A/5A/6A multi-current options, compatible with low and high voltage systems. 316 stainless steel and aluminum alloy material are anti-rust and corrosion resistant. 4Pin gold-plated terminal ensures stable plug-in connection, momentary and latching optional mode meets different control needs, CE RoHS certified, perfect for household appliances, industrial equipment and marine panel matching.

Applications

• 22mm industrial control panel bi-color LED button
• Marine yacht IP68 waterproof power switch
• Home appliance and smart equipment function button
• Engineering machinery 12V/24V indicator switch
• Automation equipment embedded control button
• 22mm hole old equipment waterproof replacement switch

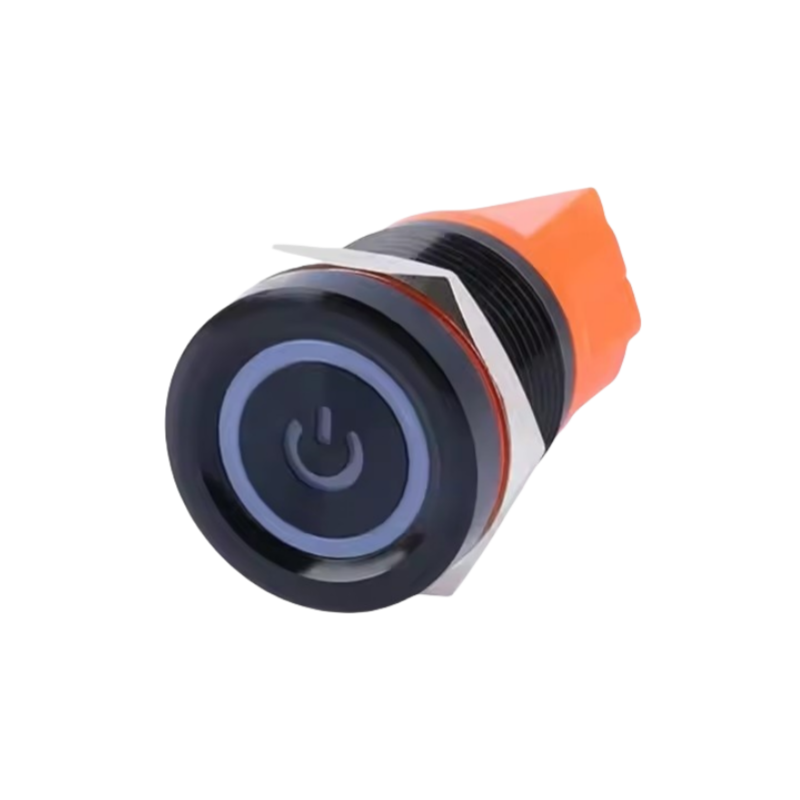

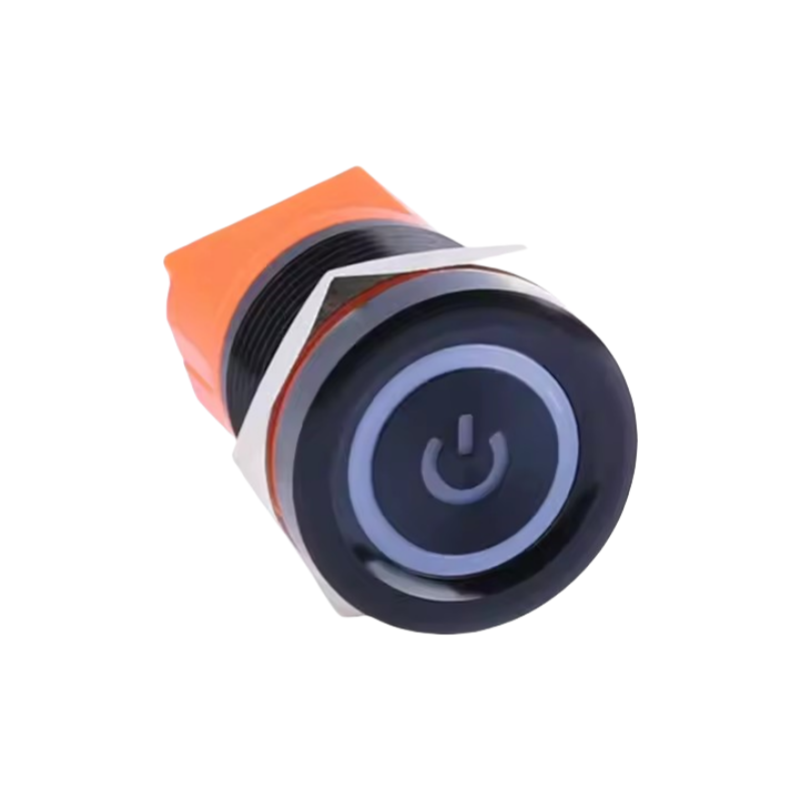

Product images

FAQ

1. Mounting size?
Standard 22mm mounting hole diameter.

2. LED feature?
Ring and power logo dual light, red blue bi-color display.

3. Voltage & current?
12V~220V multi voltage, 3A/5A/6A optional.

4. Protection level?
IP68 full waterproof and IK10 impact resistant.

5. Terminal type?
4Pin gold-plated plug-in terminal for stable wiring.
