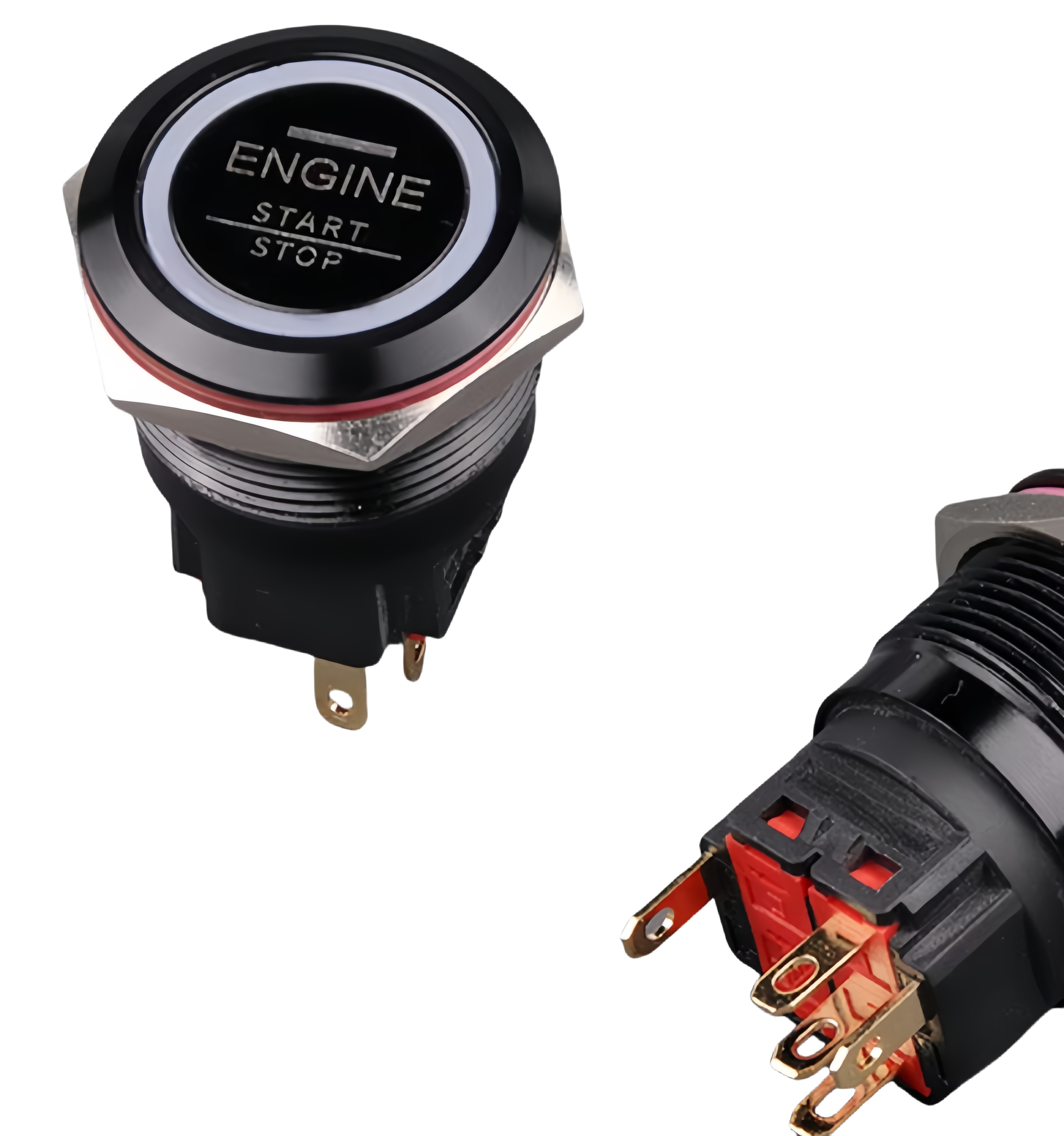

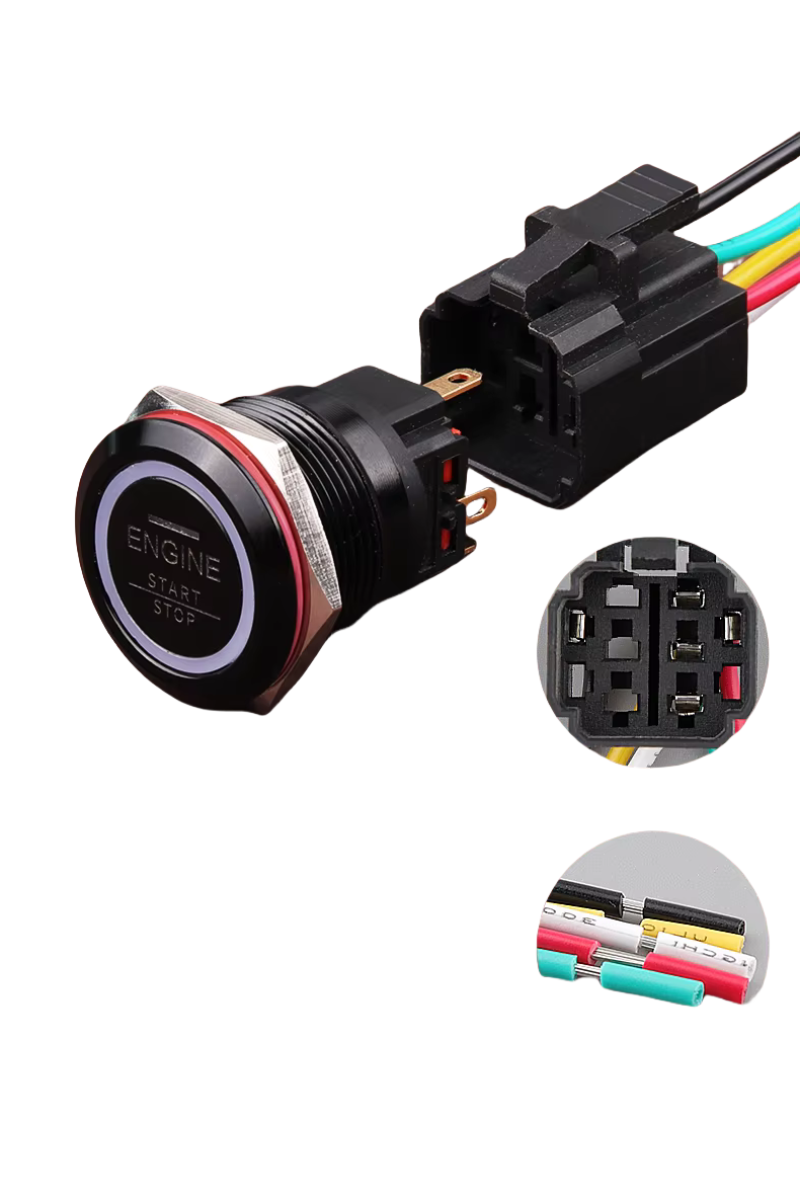

This 22mm black metal push button switch offers a durable, industrial-grade design with a 5A current rating. Featuring LED illumination for clear visibility, it supports both self-locking and momentary functions. The 1NO1NC contact configuration and one-click start marking make it ideal for machinery, automation systems, and control panels where reliability and ease of use are essential.
| Max. Current | 5a. |
| Max. Voltage | 250vac |
| Place of Origin | China |
| LED | Yes |
| Application | General purpose |
| Material | Plastic |
| Structure | Electronic |
| Head Type | Flat |
| Terminal Type | Screw Terminal |
| Whether the smart | NO |
| illuminated Type | Ring illuminated |
| IP level | Ip67 – dust tight waterproof |
| Switch Combination | 1no1nc |
This 22mm 5A black metal push button switch is specially designed for engine start and equipment power control. Black metal appearance provides stylish look and corrosion resistance. IP67 waterproof rating ensures stable performance in wet and harsh environments. 5A current supports reliable power control. Start marking and LED indication make operation intuitive. It supports both self-locking and momentary modes with 1NO1NC contacts for versatile control systems.
1. What is the mounting size?
Standard 22mm mounting hole size.
2. What is the rated current?
5A for stable power control.
3. Is this switch IP67 waterproof?
Yes, it has IP67 waterproof and dustproof protection.
4. Does it support self-locking and momentary?
Yes, both self-locking and momentary are optional.
5. Is it with start mark and LED?
Yes, it has engine start marking and ring LED illumination.
| Connection | |
|---|---|
| Contact Material | |
| PIN Material | |
| Operation of Contact | |
| Position |
