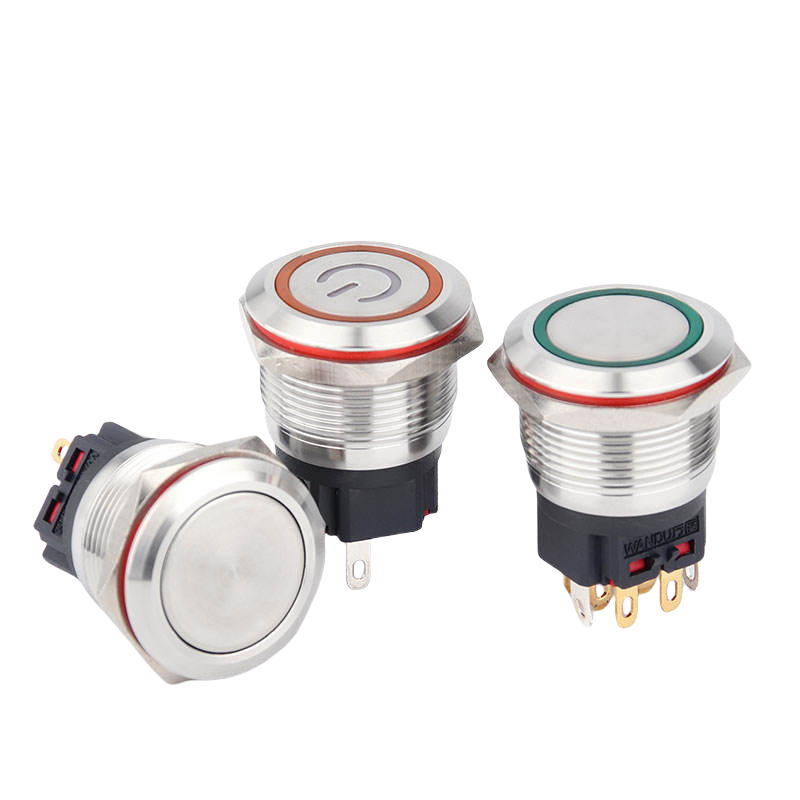

22MM 5A Current LED Light Switch IP67 Waterproof Latching Metal Push Button Switch

This ‌22mm metal push button switch‌ delivers robust performance with a ‌5A current rating‌ and ‌IP67 waterproof certification‌, making it ideal for marine, industrial, and outdoor applications. The ‌latching mechanism‌ maintains set positions securely, while the integrated ‌LED indicator‌ (multi-color options available) provides clear operational status. Featuring a ‌stainless steel housing‌ with corrosion-resistant plating, it withstands harsh environments (-30°C to +80°C). Pre-wired terminals enable quick installation in control panels, machinery, and transportation equipment.

Enquiry
SKU:SCJ10M22FZCategory:
Description
Max. Current5AMax. Voltage250VAC
LEDYesWhether the smartNO
Mounting hole diameter22mmHead shapeFlat head/Ball head/ High head
Crust materialStainless Steel/Nickel plated brass/Aluminum oxideContact configuration1NO1NC/2NO2NC
Operation typeMomentary or LatchingLED TypeRing LED/Symbol LED/Dot LED
LED ColorRed,Green, Yellow, Blue, White ,Orange, Purple, PinkLED Voltage3V/6V/12V/24V/36V/110V/220V/250V
Switch Rating5A / 250VACAmbient Temperature-30℃~+85℃
