This emergency switch is suitable for use in electrical control signal interlocking of CNC machine tools, machinery, current, telecommunications, automation equipment, banking institutions, instruments, and other electrical appliances.
| Technical Parameter: | |
| Working Temperature: | -5° – 40° |
| Wiring Ability: | Spiral embedded terminal, minimum wiring 1 * 0.5 square meters, maximum 2 * 1.5 square meters or 1 * 2.5 square millimeters |
| Rated Insulation Voltage: | Voltage 690V |
| Convientional Freeair Thermal Current: | 1th 10A, 6A (boxed) |
| Rating: | AC-15 ：220V/6A ；380V/4A ；500v/2A |
| DC-13 ： 24V/6A ；48V/3A； 110V/1A | |
| 220V/0.5A ；440V/0.25A | |
| Mechanical Life: | flat head and mushroom head and lamp head —–1 million times |
| other head— 500000 times | |
| Electrical Life: | flat head and mushroom head AC 500000 times; DC 200000 times, the remaining 50000 times |
| Protection Grade: | IP40 (IP65 waterproof button) |
| Compliant With Standards： | IEC60947-5-1 GB/T 14048.522mm Red Maintained Flat Emergency Stop Switch With LED Lamp |

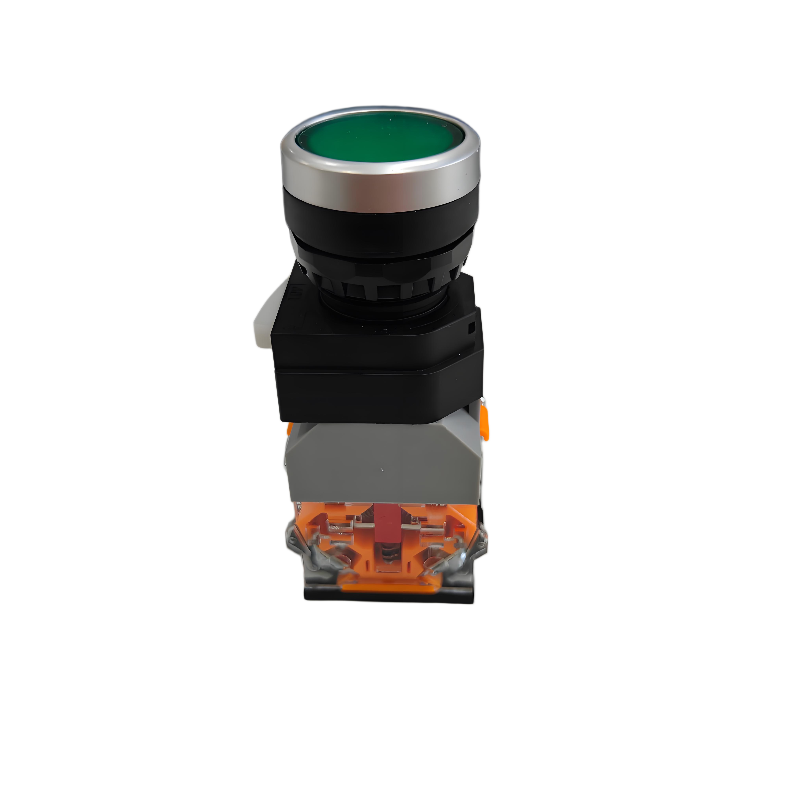

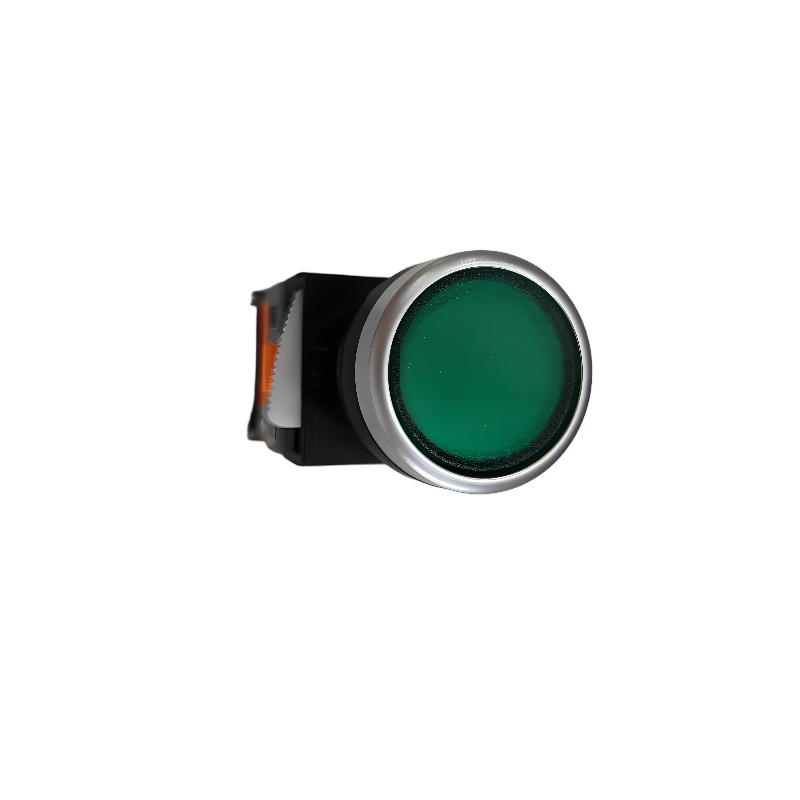

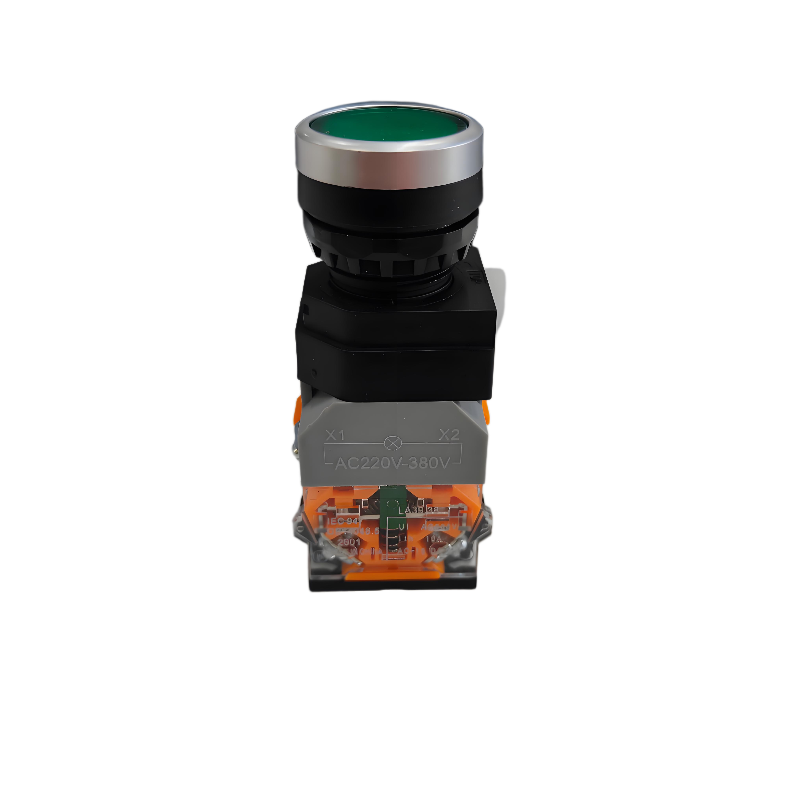

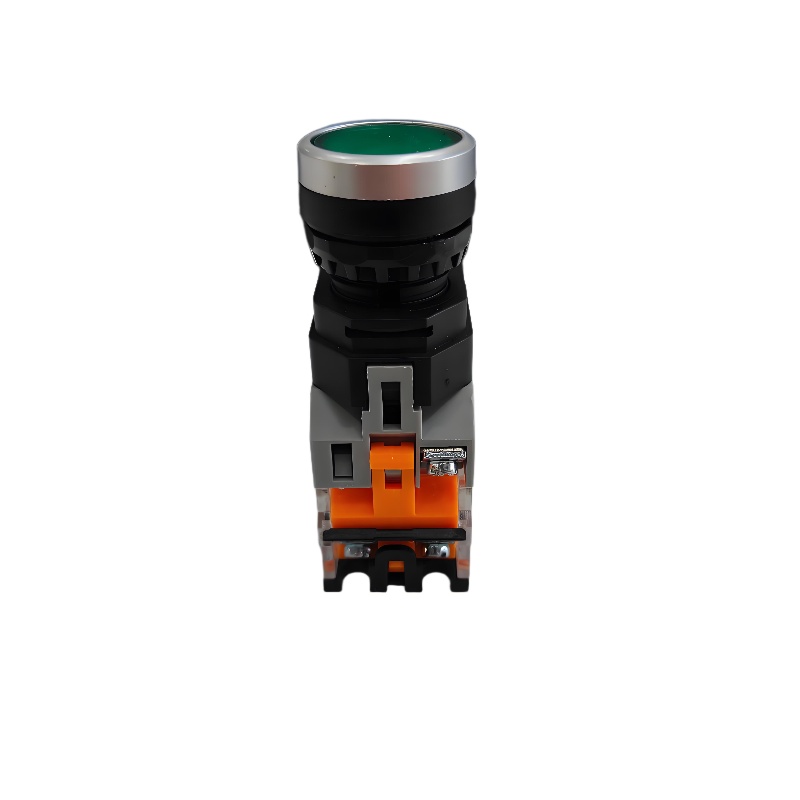

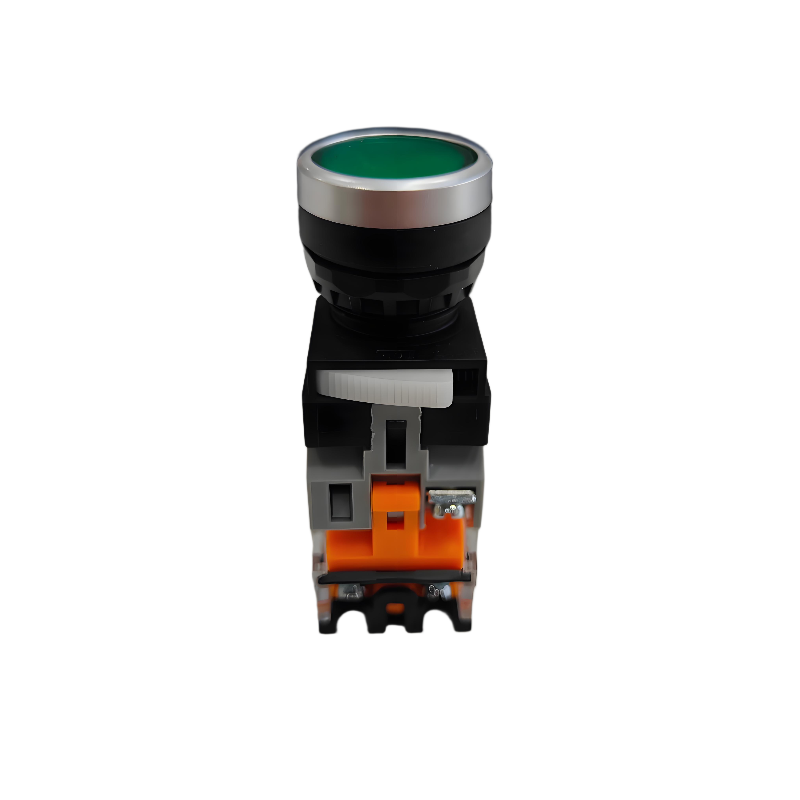

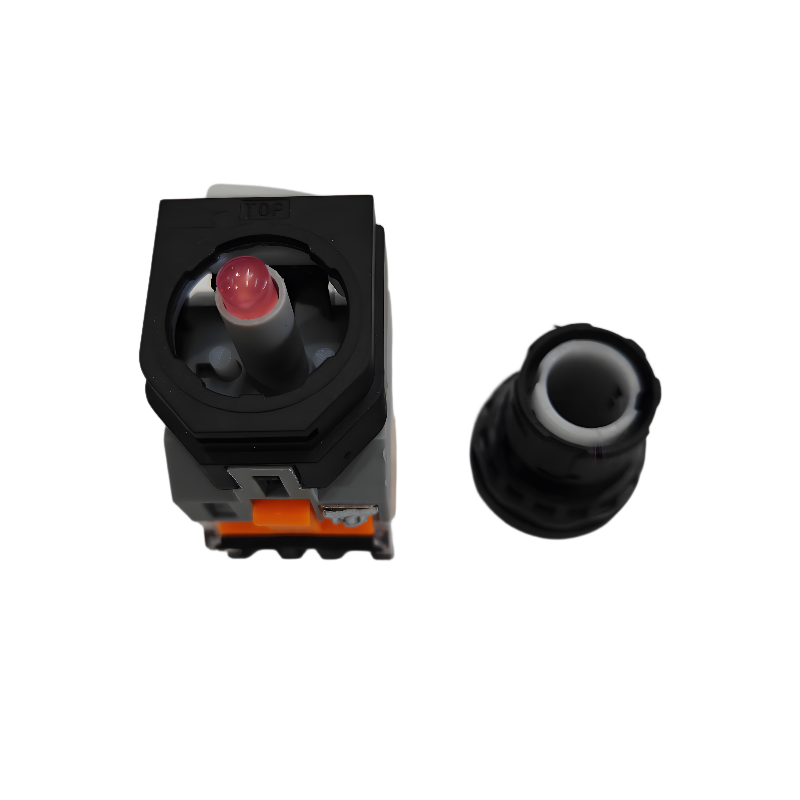

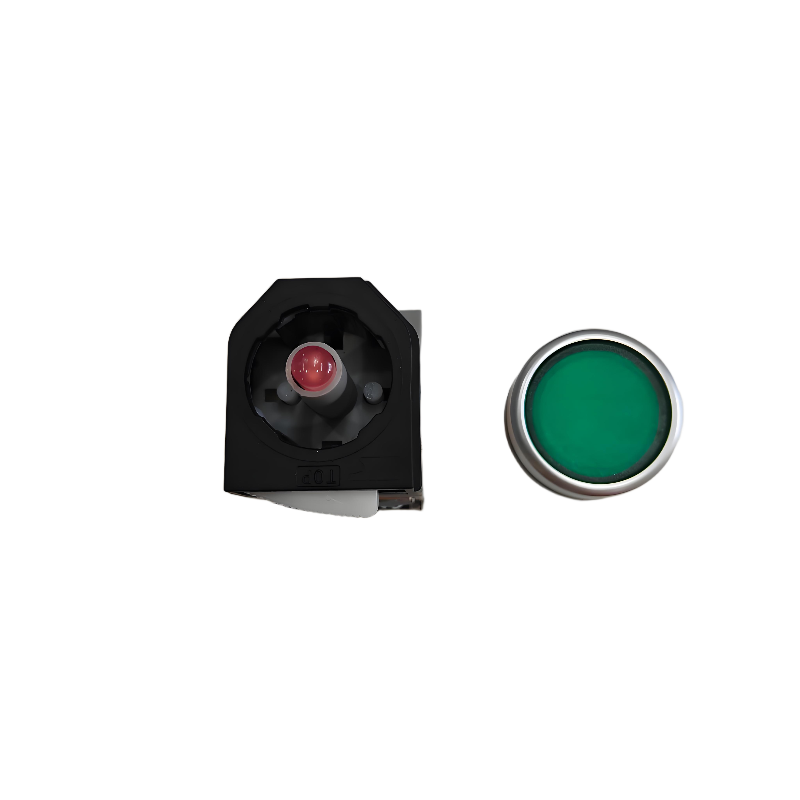

This 22mm green LED illuminated flat maintained emergency stop switch adopts flat maintained structure with rich red and green LED color options and full AC/DC voltage range. Standard 1NO+1NC contact meets most electrical interlock requirements, gold and silver pin optional for better conductivity. Fixed 9mm shell length fits standard panel installation, IP40 default protection and optional IP65 waterproof for humid environment. It reaches 1 million mechanical life and complies with international safety standards, stable for long-term use in various electrical control and signal interlocking occasions.
1. What is the mounting size?
Standard 22mm mounting hole, fits most industrial control panels.
2. Is it with LED lamp?
Yes, it is illuminated type with green and red LED optional.
3. Does it have multiple LED voltages?
Yes, full range AC and DC voltage from 1.8V to 380V for selection.
4. What contact configuration?
Fixed 1NO+1NC contact combination for safety interlock circuit.
5. What PIN material options?
Gold and silver two kinds of PIN material to choose.
6. What is the shell length?
Fixed 9mm shell length for standard panel installation.
7. What main scenarios is it suitable for?
Widely used in CNC machine tools, machinery, automation, telecommunications, instruments and banking electrical signal interlocking control.
| Operation of Contact | |
|---|---|
| LED Color | |
| LED Pressure | AC 1.8V, AC 110V, AC 12V, AC 220V, AC 24V, AC 2V, AC 36V, AC 380V, AC 3V, AC 48V, AC 6V, DC 1.8V, DC 110V, DC 12V, DC 220V, DC 24V, DC 2V, DC 36V, DC 380V, DC 3V, DC 48V, DC 6V |
| PIN Material | |
| Length of Shell |
