This 22mm illuminated push button switch offers both momentary and selectable maintained operation with reliable silver alloy contacts. Available in high or flat head styles and rated IP65 for dust and water resistance, its 1NO1NC configuration ensures versatile switching performance.

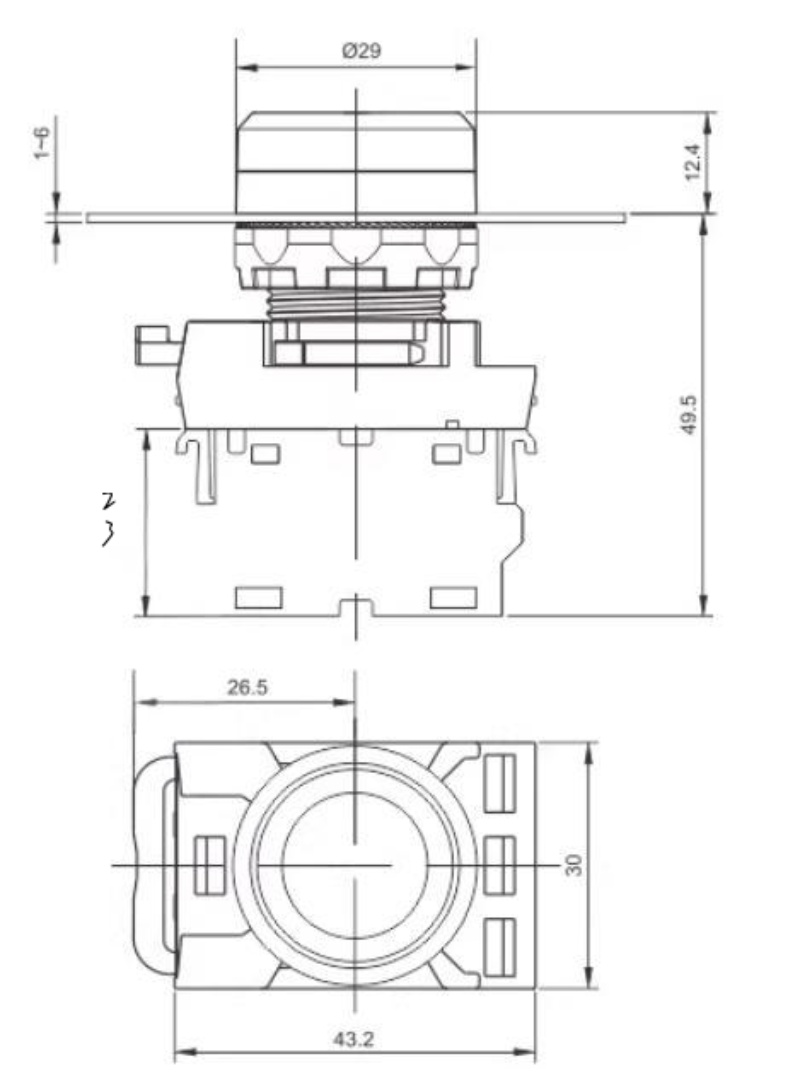

| Mounting Size | 22mm |
| Head Type | High Round / Flat |
| Light Option | Illuminated |
| LED Color | Red, Green, Blue, White, Yellow |
| Operation Type | Maintained / Momentary |
| Protection Grade | IP65 Waterproof |
| Contact Type | 1NO+1NC / NO / NC / 2NO |
| Contact Material | Silver Alloy |
| Bezel Material | Plastic |
| Shell Material | Plastic |
| Application | Industrial Control, Equipment Panel, Machinery |
This 22mm illuminated push button switch provides reliable and economical control for industrial equipment and panels. It supports both high round head and flat head styles, with maintained and momentary functions to meet different operation needs. IP65 protection ensures stable performance in dusty and damp environments. Silver alloy contacts deliver good conductivity and long service life. The 1NO+1NC contact configuration enables versatile circuit control. Illuminated design offers clear working status indication for safe operation.
1. What is the mounting size?
Standard 22mm mounting hole size.
1. Is this switch illuminated?
Yes, it is illuminated with LED for clear status indication.
3. Does it support high head and flat head?
Yes, both high round head and flat head are optional.
4. Does it support maintained and momentary modes?
Yes, both maintained and momentary operation are selectable.
5. What contact configuration does it use?
It supports 1NO+1NC, NO, NC and 2NO contact types.
| Bezel | |
|---|---|
| Contact Material | |
| Head Color | |
| Head Type | |
| Lamp | |
| LED Color | |
| Operation of Contact | |
| Shell Material |
