Key Features

• Standard 22mm mounting hole for industrial panel universal installation

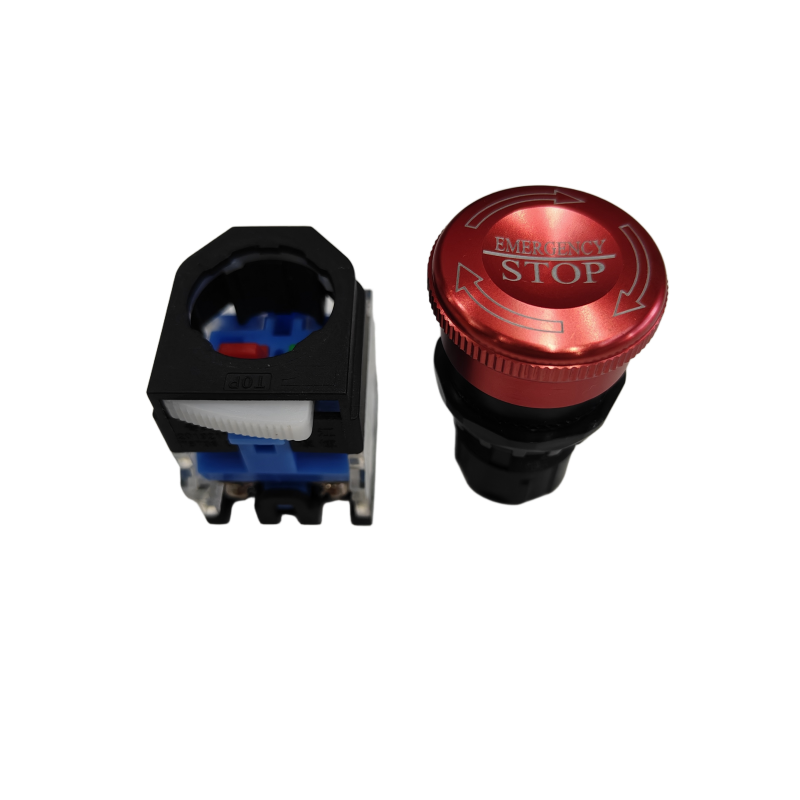

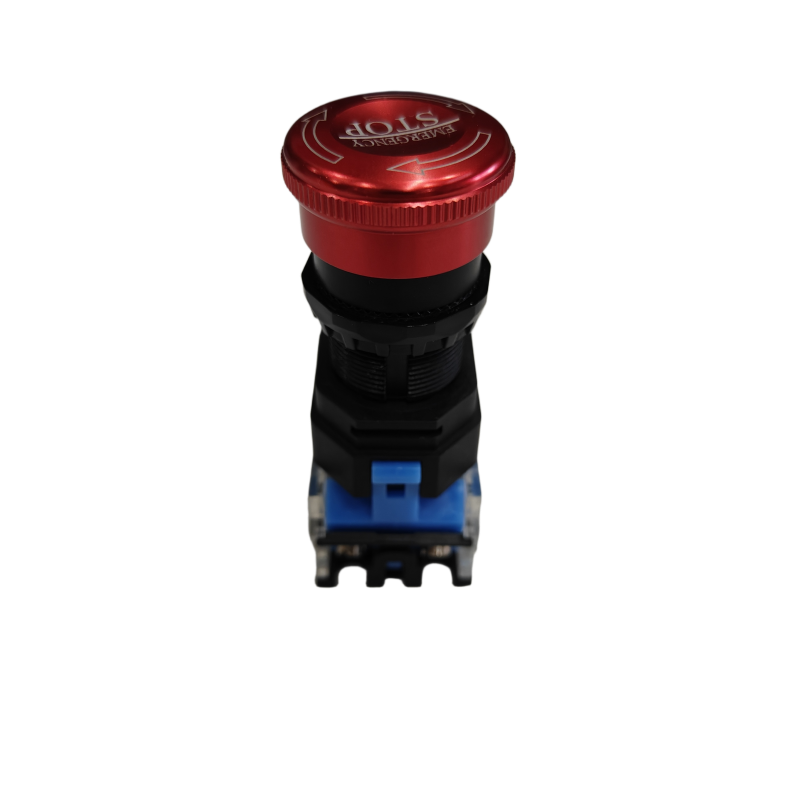

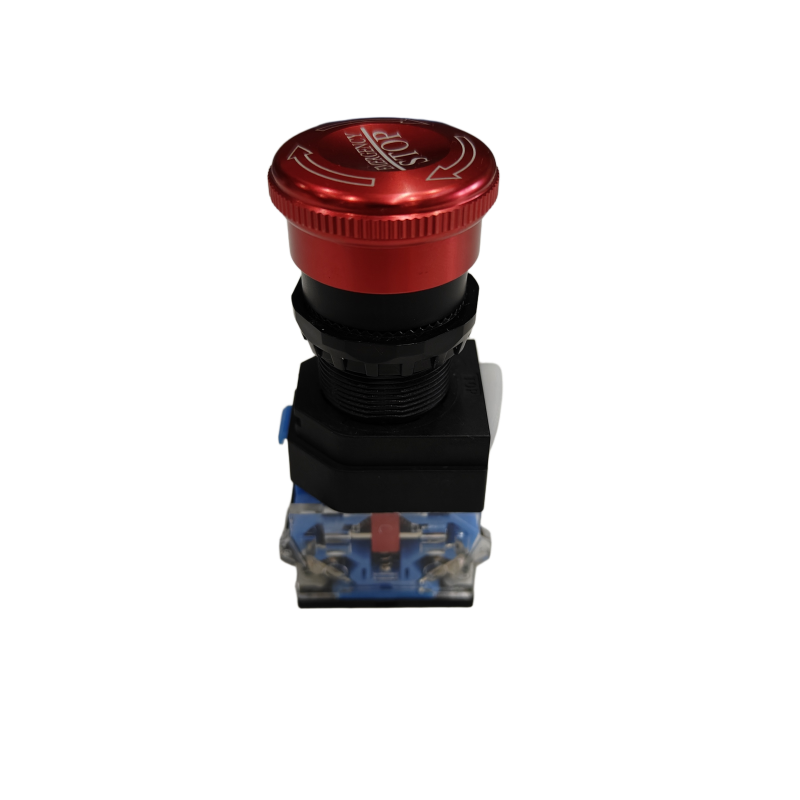

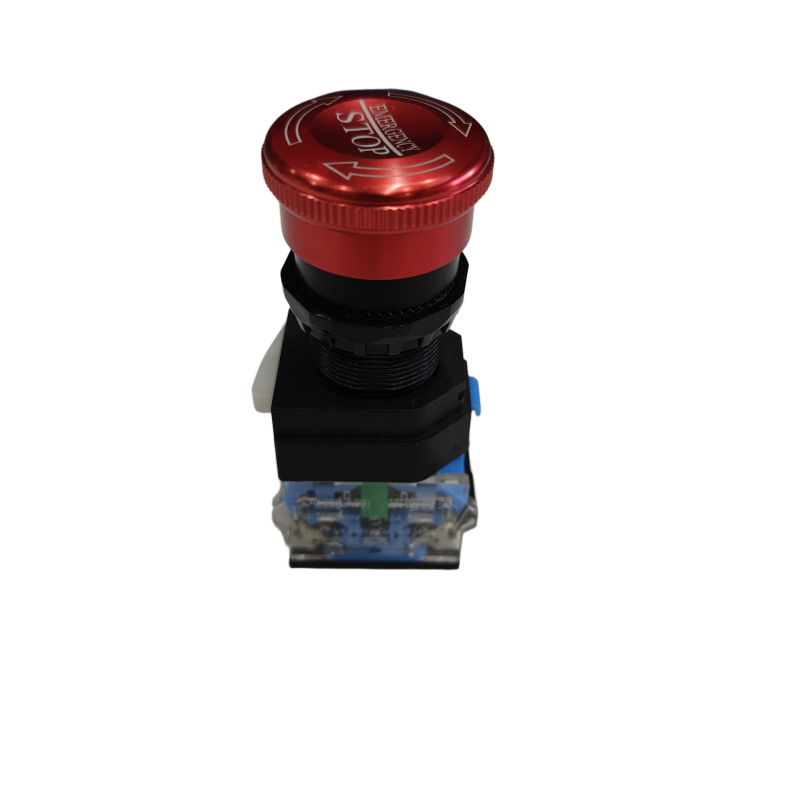

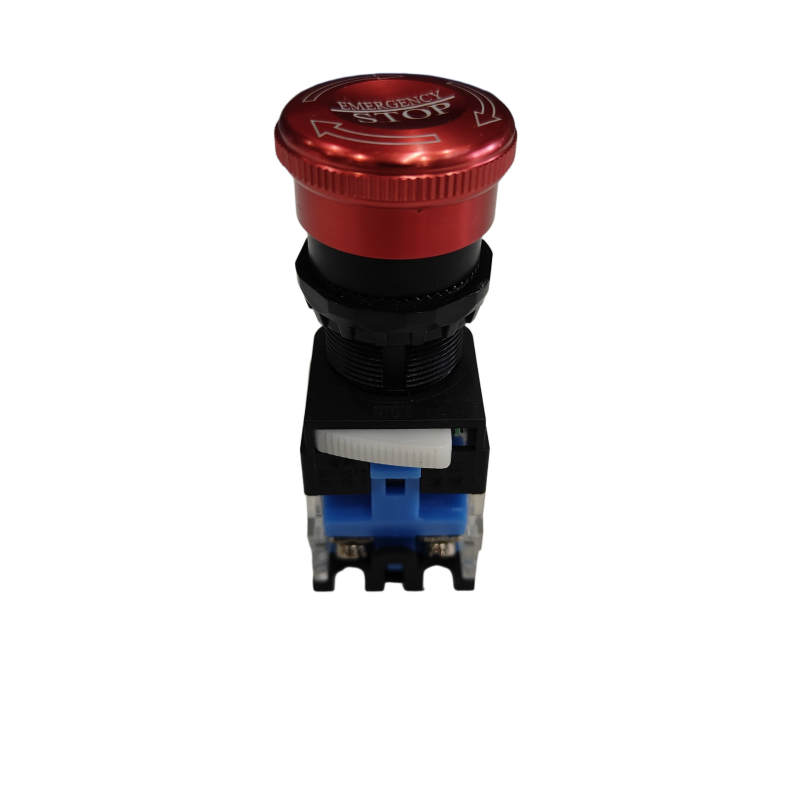

• Metal mushroom head design with obvious STOP identification for emergency operation
• Metal and plastic dual bezel optional for different installation environments
• Fast acting flat jump contact structure, compact body with short action stroke
• Quick response performance, specially designed for high-frequency working scenarios
• Multiple position modes: 2-position / 3-position maintained & momentary optional
• Default IP40 protection grade, IP65 waterproof version can be customized
• High 690V rated insulation voltage for reliable electrical isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 & DC-13 load specifications adapt to multiple voltage systems
• Contact material optional: Brass, Gold, Silver
• Mushroom head mechanical life up to 1 million times
• Electrical life: AC 500,000 times / DC 200,000 times
• Spiral embedded terminal, wiring range 0.5mm² ~ 2.5mm²
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Non-illuminated type, stable and durable for long-term industrial use

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

This 22mm metal mushroom maintained emergency stop switch adopts fast flat jump contact design, compact structure with short stroke and fast response, perfectly suitable for high-frequency industrial occasions. It supports metal and plastic bezel selection, standard IP40 protection and customizable IP65 waterproof version for humid workshops. 690V high insulation voltage and complete AC/DC load parameters meet various industrial power demands. Multiple contact materials optional, mushroom head reaches 1 million mechanical life, long electrical service life. Spiral embedded terminal is easy for wiring, fully compliant with international industrial safety standards, stable and reliable for long-term safety protection.

Applications

• 22mm metal mushroom head maintained emergency stop for industrial control panel
• High-frequency automation production line safety emergency cutoff switch
• CNC machine tools and mechanical equipment dedicated protection button
• Indoor workshop IP40 conventional environment safety control switch
• IP65 customized version for wet and dusty industrial sites

FAQ

1. What is the mounting diameter?
Standard 22mm mounting hole, compatible with most industrial control panel reserved holes.

2. Is waterproof version available?
Standard IP40, support customized IP65 waterproof model for humid environments.

3. What operation modes are supported?
Two-position and three-position, maintained and momentary multiple optional modes.

4. What is the service life?
Mushroom head mechanical life up to 1 million times, AC 500,000 / DC 200,000 times electrical life.

5. What contact materials can I choose?
Optional brass, gold and silver to meet different conductivity requirements.

6. What wire gauge is suitable?
Spiral embedded terminal fits 0.5mm² to 2.5mm² wires.

7. What are the common application scenarios?
Widely used in high-frequency production lines, machine tools, automation equipment, indoor workshops and customized waterproof industrial sites.
