Key Features

• Standard 22mm mounting aperture for industrial control panel universal installation
• Red flat maintained latching design with built-in LED indicator lamp
• Red and Green dual LED color optional for different status identification
• Complete AC & DC voltage range from 1.8V to 380V for wide compatibility
• Gold and silver PIN material optional for anti-oxidation and stable conduction
• Fixed 9mm shell length, perfect for standard panel thickness installation
• Spiral embedded terminal, supports 0.5mm² ~ 2.5mm multi-spec wiring
• Working temperature: -5℃ ~ 40℃, adapt to conventional indoor environment
• Rated insulation voltage up to 690V for high voltage safety isolation
• 10A conventional thermal current, boxed type rated 6A
• Complete AC-15 / DC-13 load parameters match various power systems
• Flat & lamp head mechanical life up to 1 million times
• Electrical life: AC 500,000 times; DC 200,000 times
• Default IP40 protection grade, IP65 waterproof version customizable
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Suitable for electrical interlock, signal control and emergency cutoff

Product Attributes

• LED Color: Red , Green
• LED Pressure: AC 1.8V~380V / DC 1.8V~380V
• PIN Material: Gold, Silver
• Length of Shell: 9mm

Product Advantages

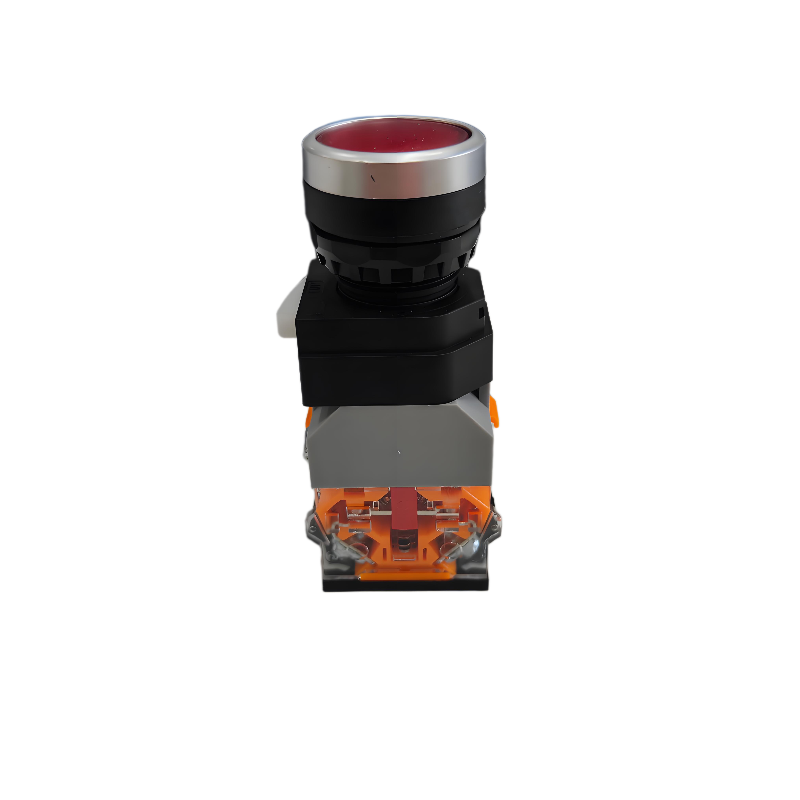

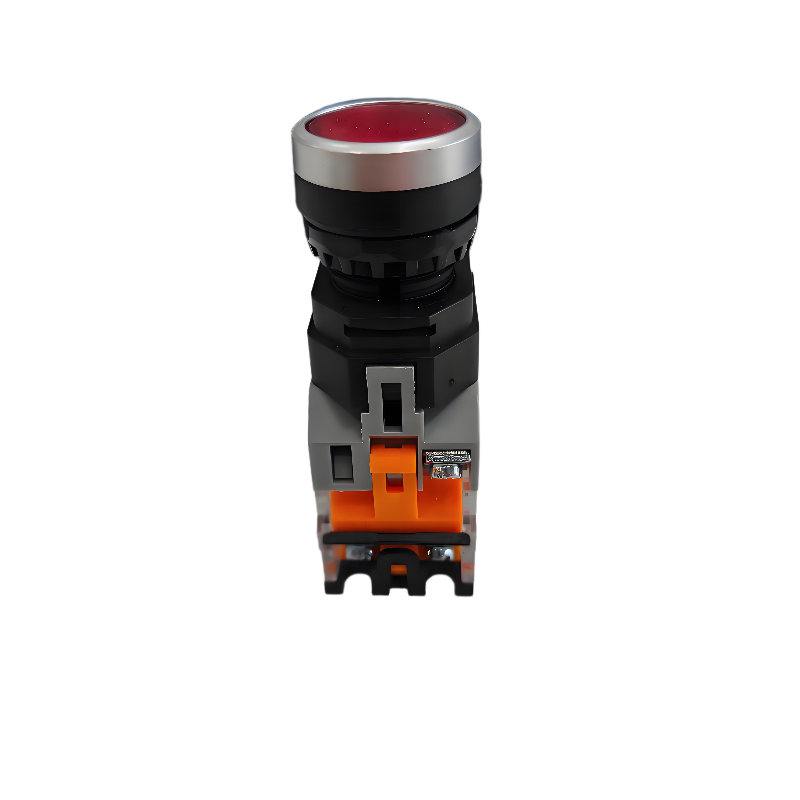

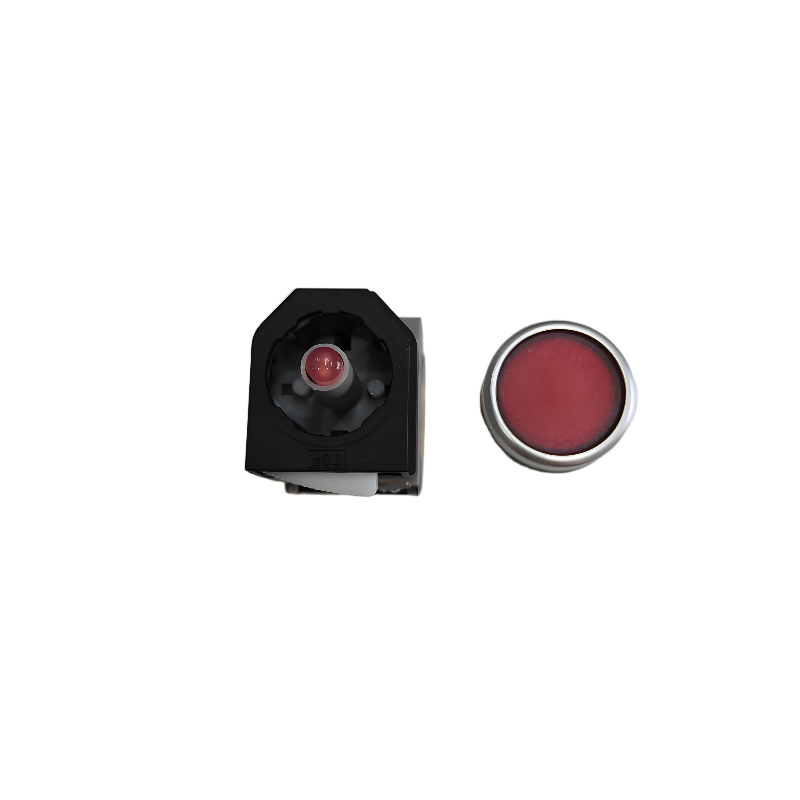

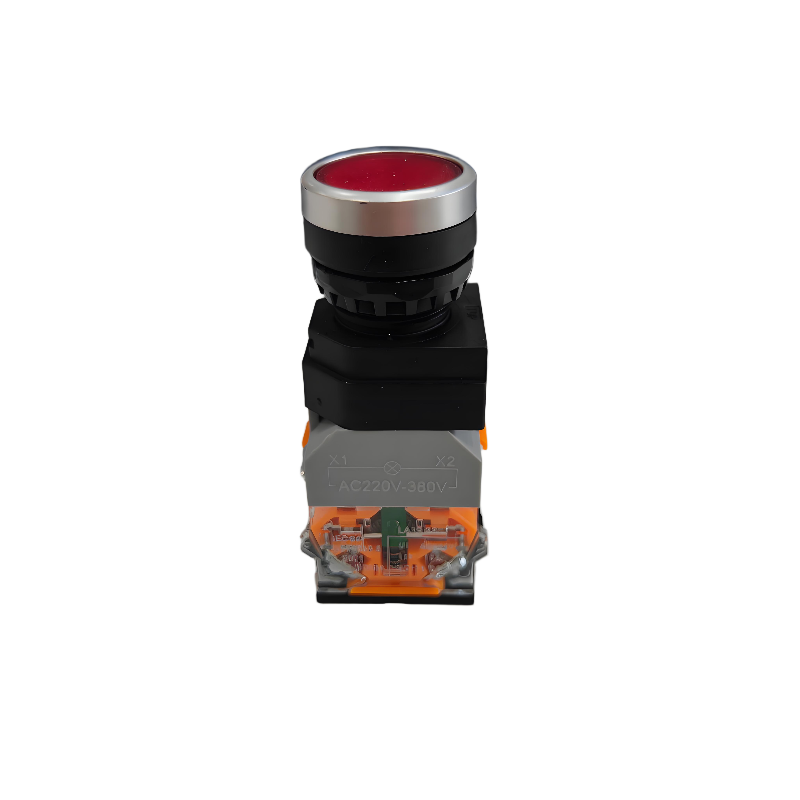

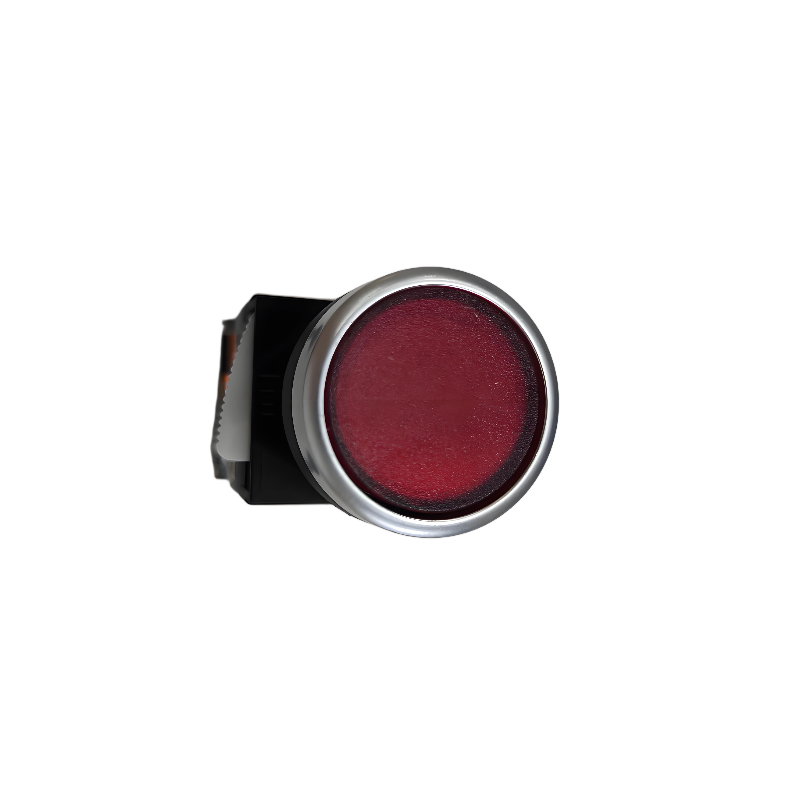

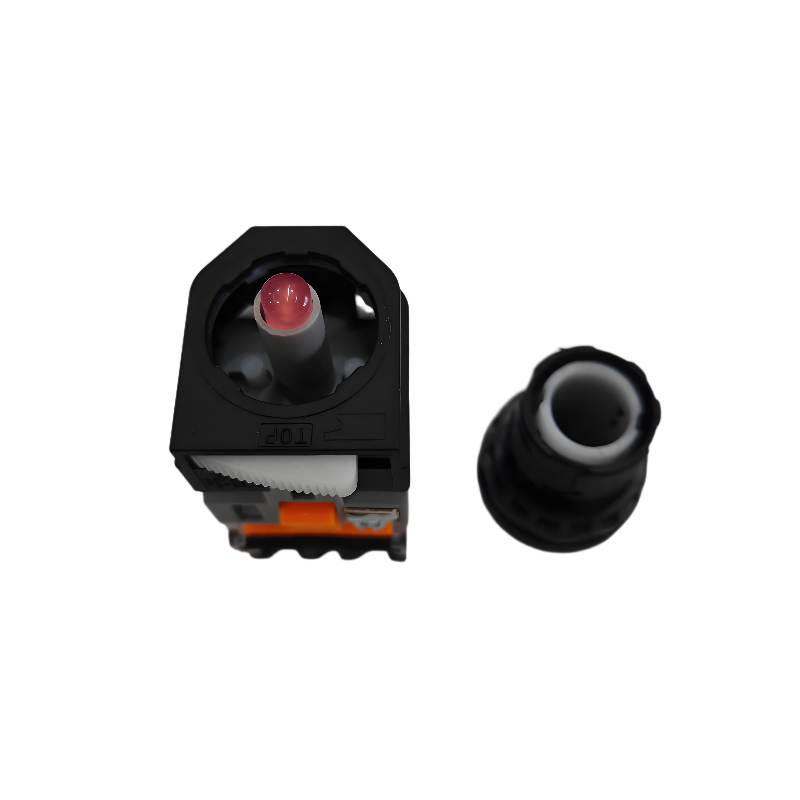

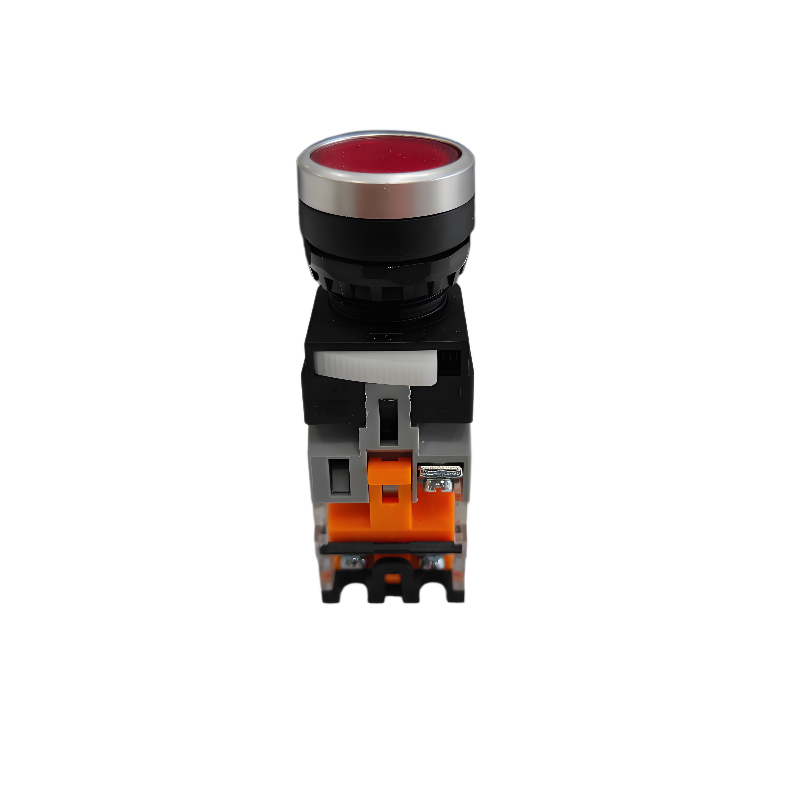

This 22mm red LED maintained flat emergency stop switch adopts classic red flat maintained design, with red and green LED optional. It supports full AC/DC 1.8V~380V voltage adaptation, gold and silver pin improves conductivity and oxidation resistance. Fixed 9mm shell fits most control panels, spiral terminal is easy for wiring. IP40 standard protection and optional IP65 waterproof meet dusty and humid workshop needs. With 1 million mechanical life and complete industrial load parameters, it is stable and durable for long-term electrical signal interlock and emergency protection.

Applications

• CNC machine tools electrical control signal interlock system
• Mechanical automation equipment LED maintained emergency stop button
• Telecommunication equipment and laboratory instrument control panel
• Banking institutions and commercial electrical appliances safety switch
• IP65 customized version for humid factory and dust workshop occasions

FAQ

1. What is the mounting size?
Standard 22mm mounting hole, compatible with all mainstream industrial control panels.

2. Is this switch with LED light?
Yes, it is LED illuminated type with red and green color optional.

3. What voltage can the LED support?
Covers full AC and DC range from 1.8V to 380V for optional selection.

4. What pin materials are available?
Gold and silver two materials optional, anti-oxidation and stable conduction.

5. What is the shell length?
Fixed 9mm shell length, suitable for standard panel installation.

6. Does it support waterproof customization?
Standard IP40, IP65 waterproof version can be customized for harsh environments.

7. What are the main application scenarios?
Widely used in CNC machine tools, machinery, automation, telecommunications, instruments and banking electrical signal interlock and emergency stop control.
