This selector switch is transparent base with clear and visible details, made of high-strength PBT material, which is both stable, sturdy, and cost-effective.
| Technical Parameter: | |
| Working Temperature: | -5° – 40° |
| Wiring Ability: | Spiral embedded terminal, minimum wiring 1 * 0.5 square meters, maximum 2 * 1.5 square meters or 1 * 2.5 square millimeters |
| Rated Insulation Voltage: | Voltage 690V |
| Convientional Freeair Thermal Current: | 1th 10A, 6A (boxed) |
| Rating: | AC-15 ：220V/6A ；380V/4A ；500v/2A |
| DC-13 ： 24V/6A ；48V/3A； 110V/1A | |
| 220V/0.5A ；440V/0.25A | |
| Mechanical Life: | flat head and mushroom head and lamp head —–1 million times |
| other head— 500000 times | |
| Electrical Life: | flat head and mushroom head AC 500000 times; DC 200000 times, the remaining 50000 times |
| Protection Grade: | IP40 (IP65 waterproof button) |
| Compliant With Standards： | IEC60947-5-1 GB/T 14048.522mm Red Maintained Flat Emergency Stop Switch With LED Lamp |
Short Handle Short Handle with LED Long Handle

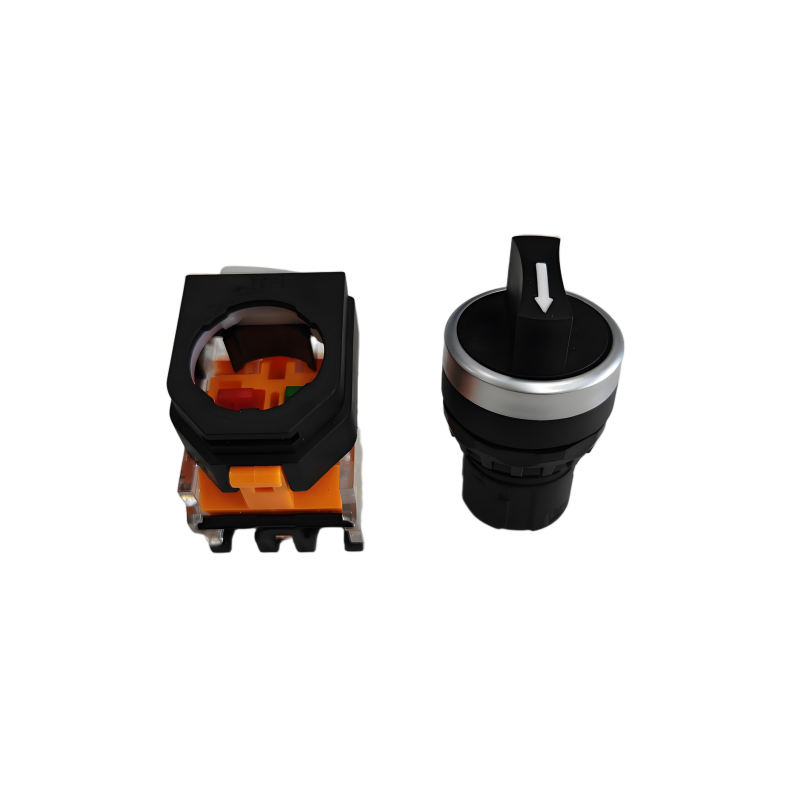

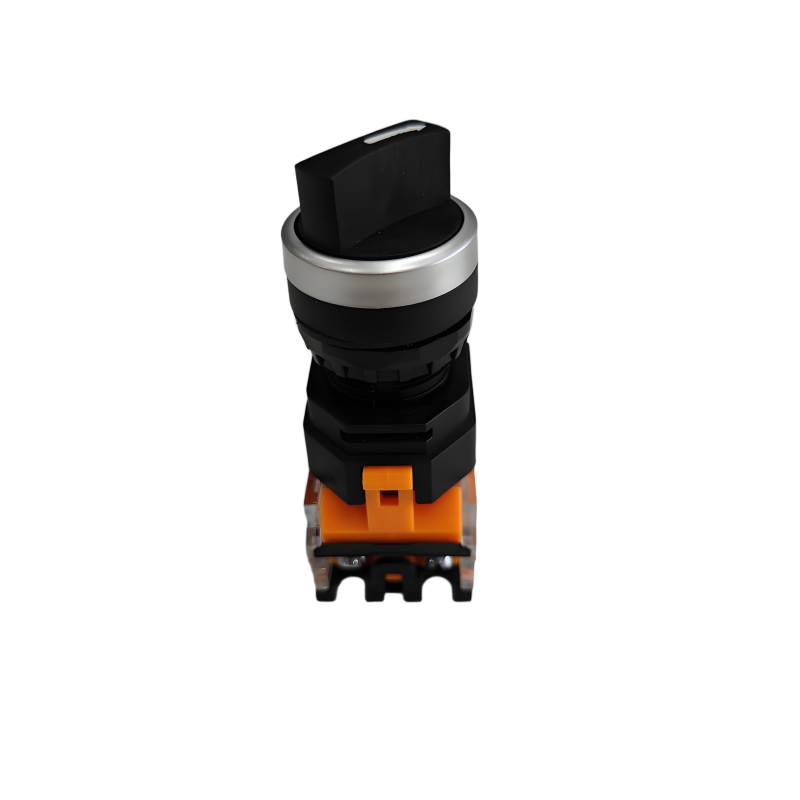

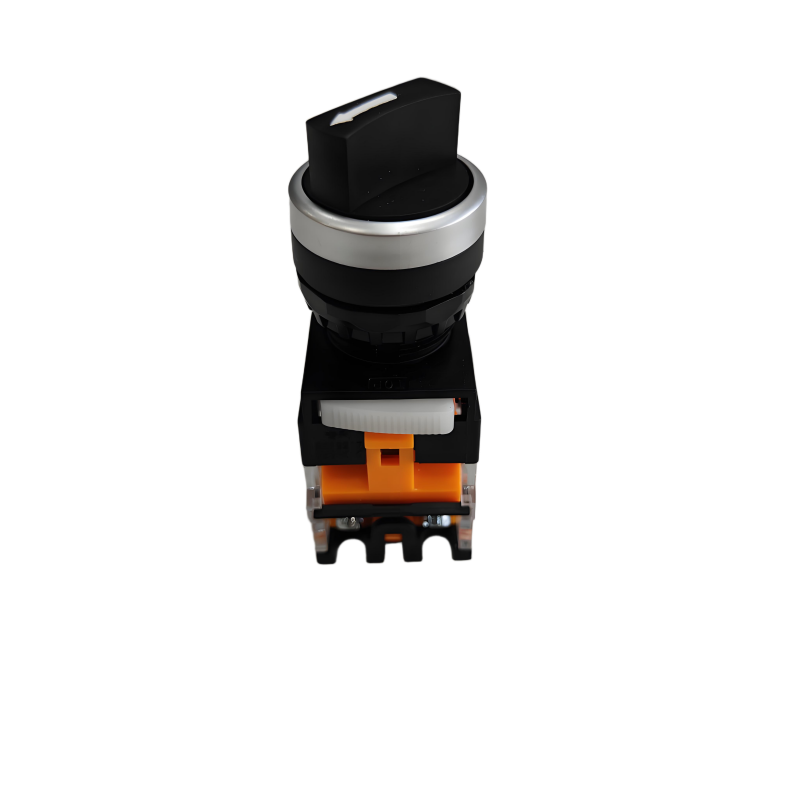

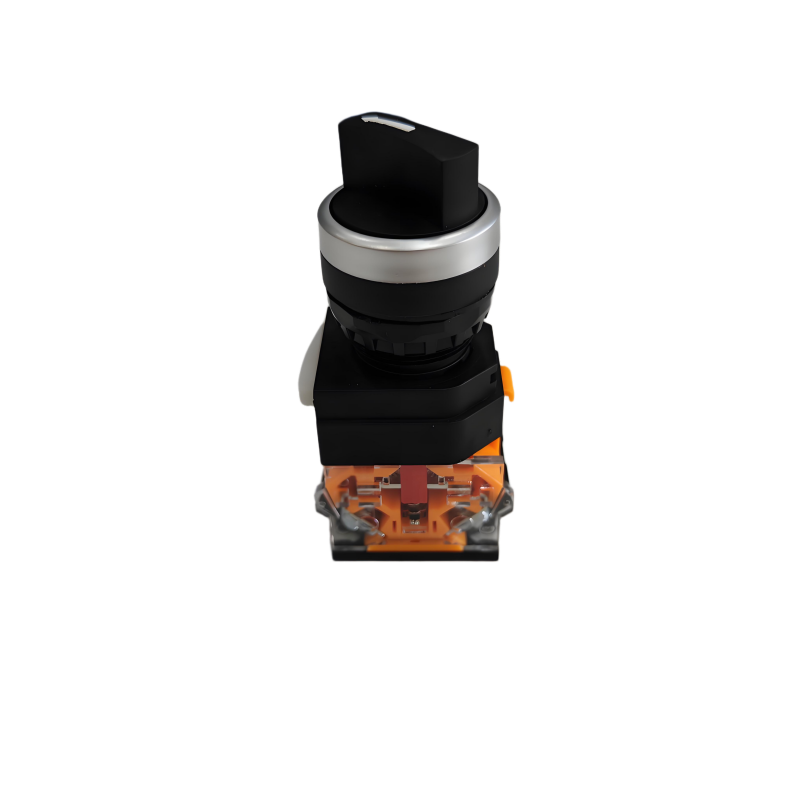

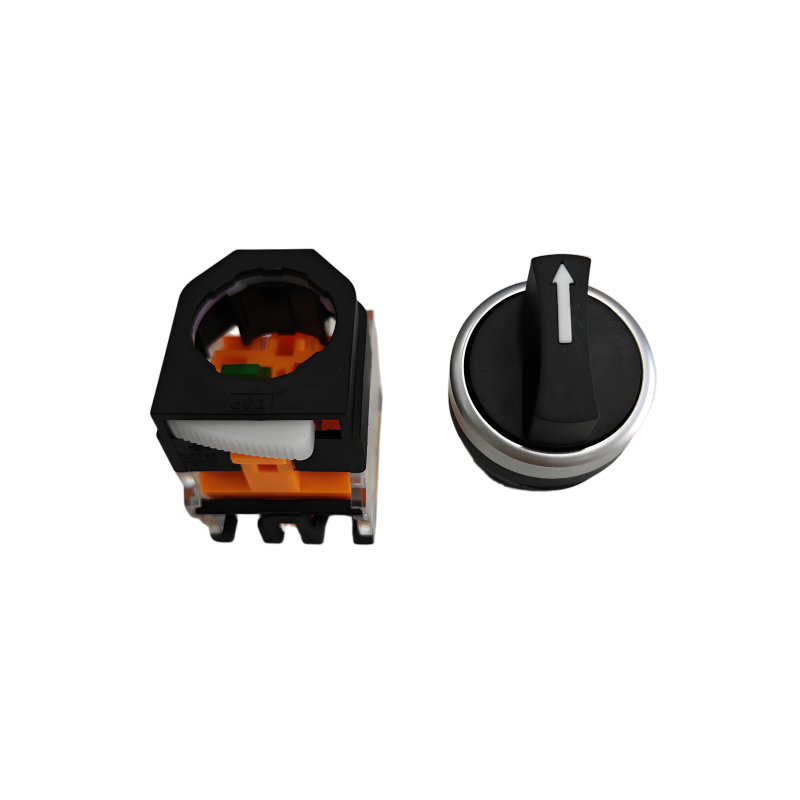

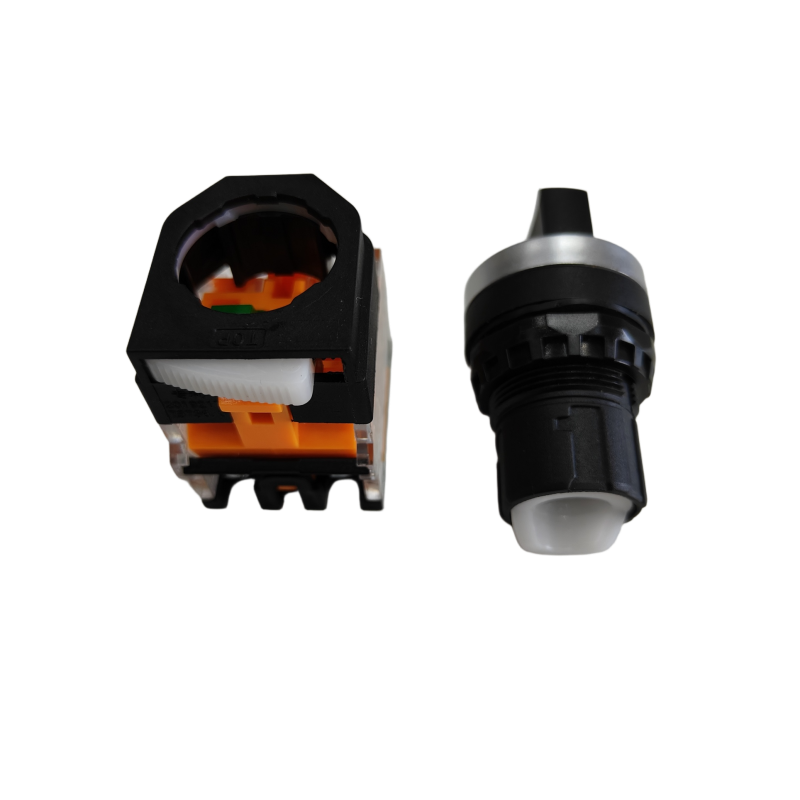

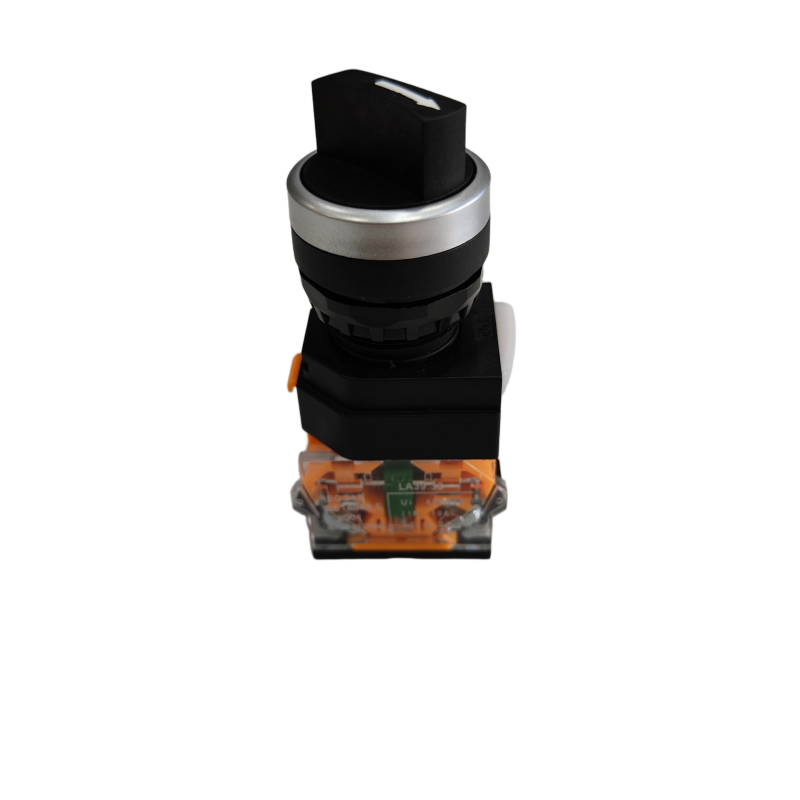

This 22mm non-illuminated rotary knob switch integrates knob selection and emergency stop function in one unit. Adopts transparent high-strength PBT base with sturdy structure and clear internal view. Supports long and short handle options, plastic and SUS304 stainless steel shell optional, plus multiple shell lengths to fit various panel thickness. Multiple two-position and three-position operation modes meet diverse circuit control needs. Standard IP40 protection with customizable IP65 waterproof version, 690V high insulation voltage and complete AC/DC load parameters. Optional brass, gold and silver contacts ensure stable conduction, long mechanical and electrical service life, suitable for long-term high-frequency industrial use.
1. What is the mounting size?
Standard 22mm mounting hole, fits most industrial control panel reserved openings.
2. Is this switch dual-purpose?
Yes, it combines rotary knob selection and emergency stop function in one.
3. Is it illuminated type?
No, it is non-illuminated pure mechanical rotary switch.
4. What shell materials are available?
Plastic and SUS304 stainless steel two options.
5. What protection level does it have?
Standard IP40, IP65 waterproof version can be customized.
6. What contact choices are there?
Optional brass, gold and silver contact materials for different needs.
7. What scenarios is it suitable for?
Widely used in machine tools, automation lines, electrical cabinets for gear switching and emergency stop control.
| Contact Material | |
|---|---|
| Length of Shell | |
| Position | Three Position Left Maintained And Right Momentary, Three Position Maintained, Three Position Momentary, Two Position Maintained, Two Position Momentary |
| Shell Material |
