Key Features

• Standard 22mm mounting hole for universal industrial panel installation
• Classic stop symbol red mushroom head for obvious emergency identification
• Metal and plastic dual bezel material optional to match different needs
• Fast acting flat jump contact structure, short stroke and quick response
• Suitable for high-frequency working scenarios with stable performance
• Multiple position modes: 2-position / 3-position maintained & momentary optional
• Standard IP40 protection grade, IP65 waterproof version optional
• High rated insulation voltage up to 690V for electrical safety isolation
• Conventional thermal current 10A, boxed type rated 6A
• Complete AC-15 and DC-13 voltage and current load specifications
• Contact material optional: Brass, Gold, Silver
• Mushroom head mechanical life up to 1 million times
• Long electrical life: AC 500,000 times, DC 200,000 times
• Spiral embedded terminal supports multiple wire gauge wiring
• Working temperature range: -5℃ ~ 40℃
• Complies with IEC60947-5-1 and GB/T 14048.5 industrial safety standards
• Non-illuminated design, simple and compact structure

Product Attributes

• Bezel: Metal , Plastic
• Head Type: Mushroom
• Lamp: Non Illuminated
• Contact Material: Brass , Gold , Silver
• Position Mode: Two / Three Position Maintained & Momentary Optional

Product Advantages

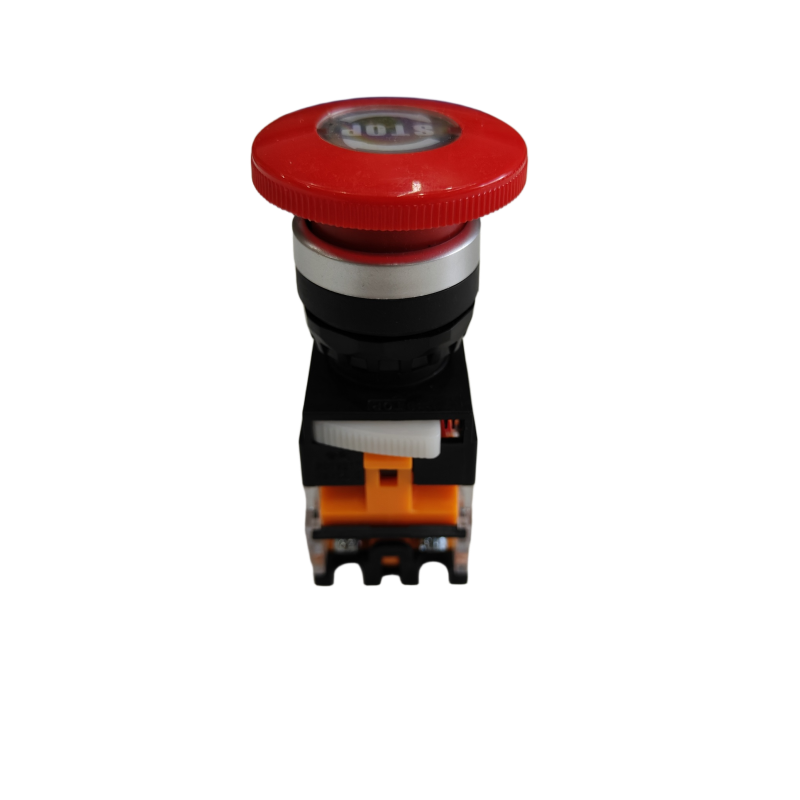

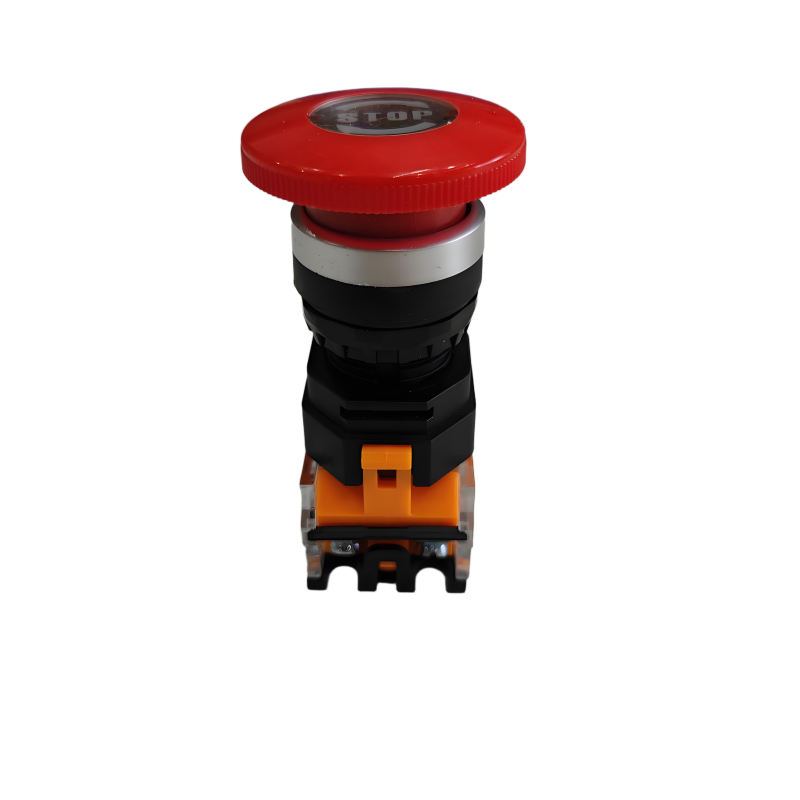

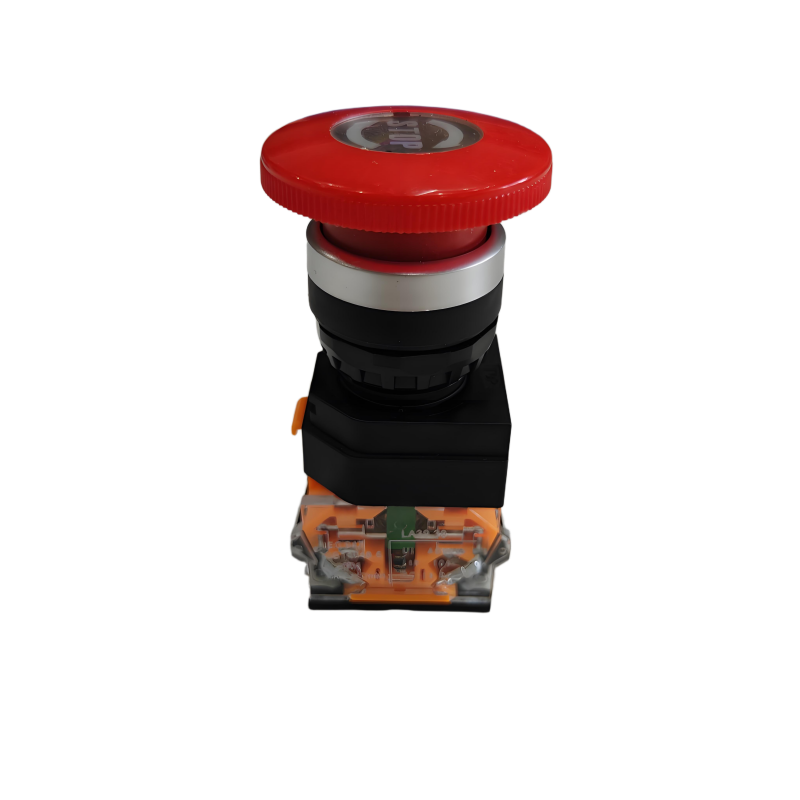

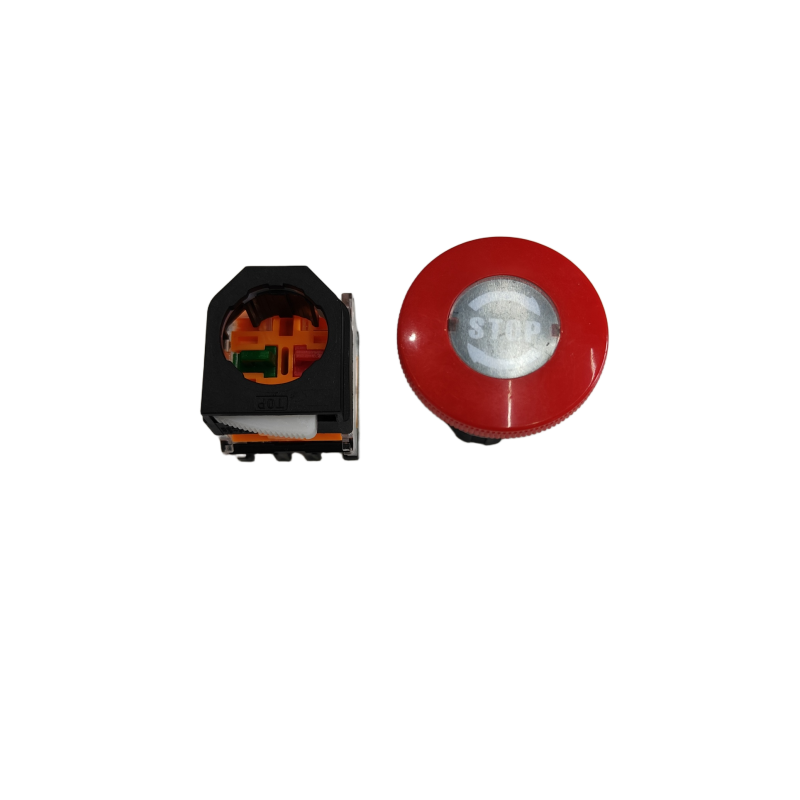

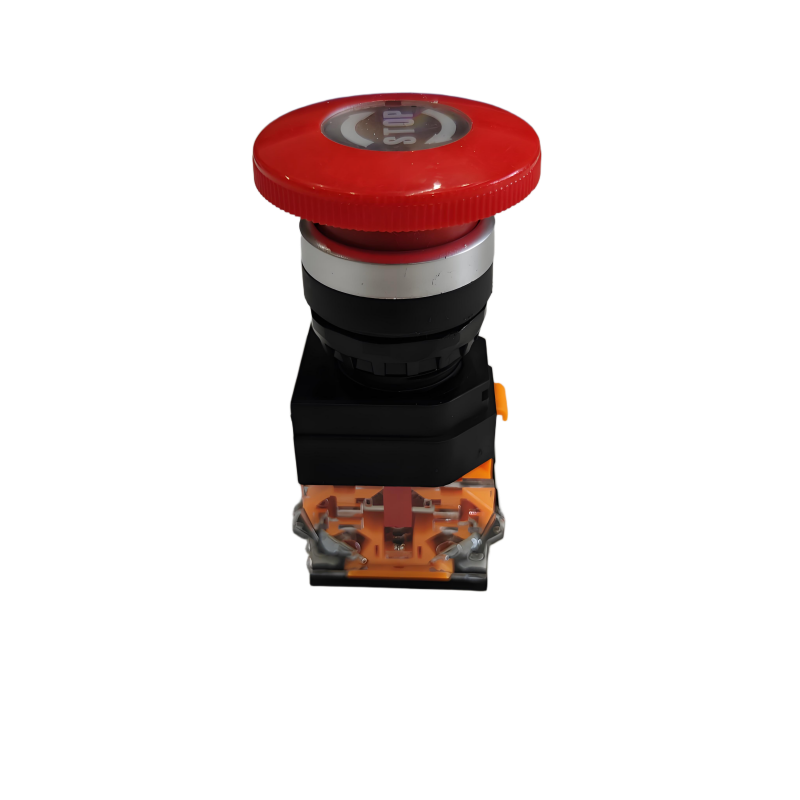

This 22mm stop symbol mushroom maintained emergency switch is designed with fast flat jump contact structure, featuring short action stroke and fast response speed, perfectly suitable for high-frequency industrial use. It provides metal and plastic bezel options, standard IP40 protection and optional IP65 waterproof version for humid environments. With 690V high insulation voltage and complete AC/DC load parameters, it meets various power system requirements. Mushroom head achieves 1 million mechanical service life, durable for long-term frequent operation. Spiral embedded terminal supports multi-spec wiring, complies with international safety standards, compact and reliable for industrial safety control.

Applications

• 22mm stop symbol mushroom head maintained emergency stop for industrial control panel
• High-frequency production line and automation equipment safety emergency switch
• CNC machine tools and mechanical equipment instant power cutoff button
• Indoor workshop IP40 conventional environment safety protection button
• IP65 waterproof version for humid factory and light industrial sites

FAQ

1. What is the mounting size?
Standard 22mm mounting aperture, fits most industrial control panels.

2. What protection levels are available?
Default IP40, IP65 waterproof version is optional for damp and dusty environments.

3. What operation positions does it support?
Supports two-position and three-position, maintained and momentary multiple modes.

4. What is the service life?
Mushroom head mechanical life up to 1 million times, electrical life AC 500,000 / DC 200,000 times.

5. What contact materials can I choose?
Optional brass, gold and silver contact materials for different conductivity needs.

6. What wire size is supported?
Spiral terminal fits wire gauge from 0.5mm² to 2.5mm².

7. What scenarios is it suitable for?
Ideal for high-frequency production lines, machine tools, automation equipment, indoor workshops and optional waterproof industrial occasions.
