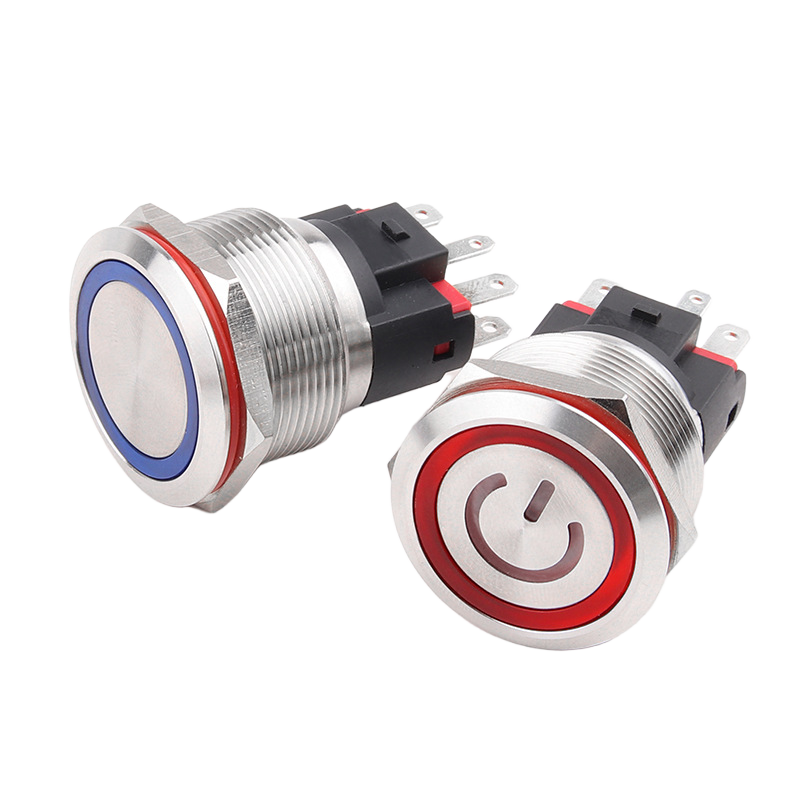

This 25mm waterproof metal push button is available in two variants: latching and momentary. Designed for high-current applications, it features a ring LED and is suitable for a wide voltage range from 5V to 220V.

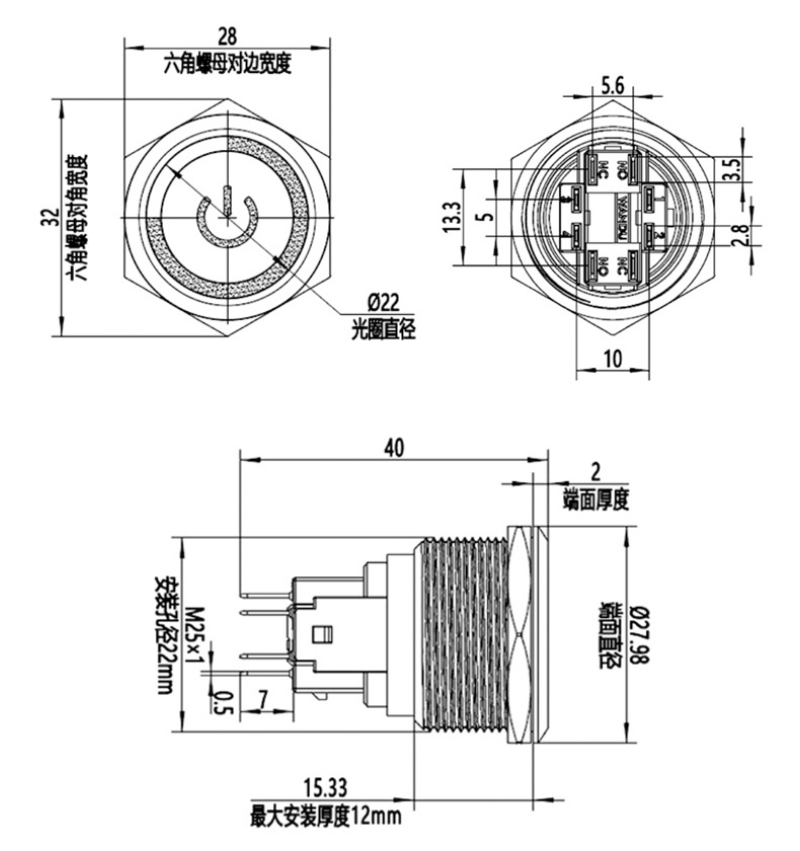

| Mounting Size | 25mm |
| Current Type | High Current |
| Protection Grade | IP67 Waterproof |
| Operation Type | Maintained / Momentary |
| Voltage Range | 5V / 24V / 220V |
| Light Type | Ring / Ring + Power |
| LED Color | Red, Green, Blue, White, Yellow |
| Head Type | Flat |
| Contact Type | 1NO + 1NC |
| Contact Material | Silver Plated |
| PIN Material | Silver Plated |

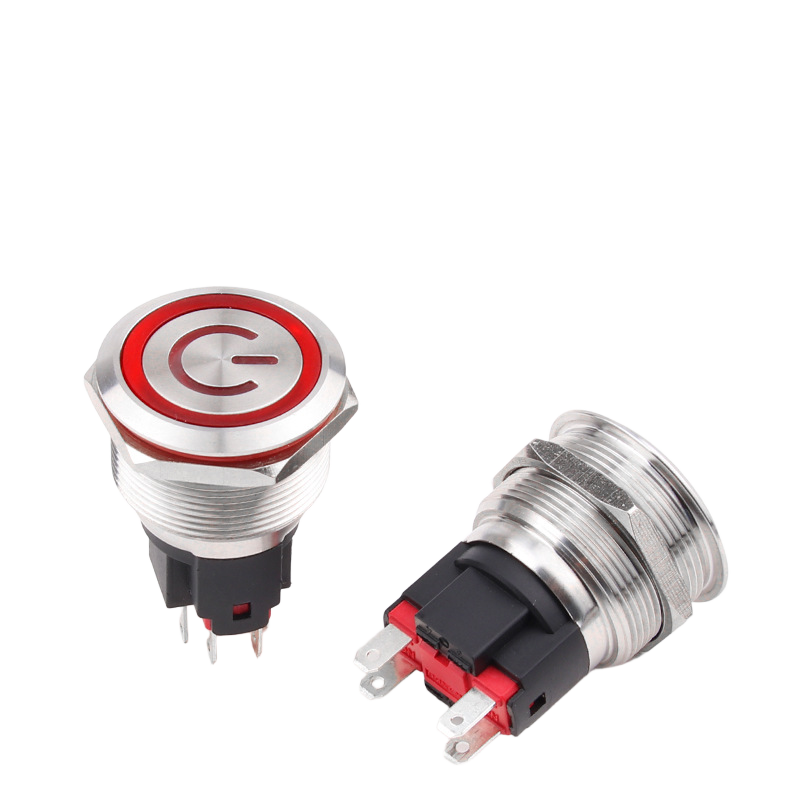

| Shell Material | Stainless Steel |
| Bezel | Metal |
| Connection | Welding |
| Application | Power Control, Industrial Equipment, Start/Stop System |

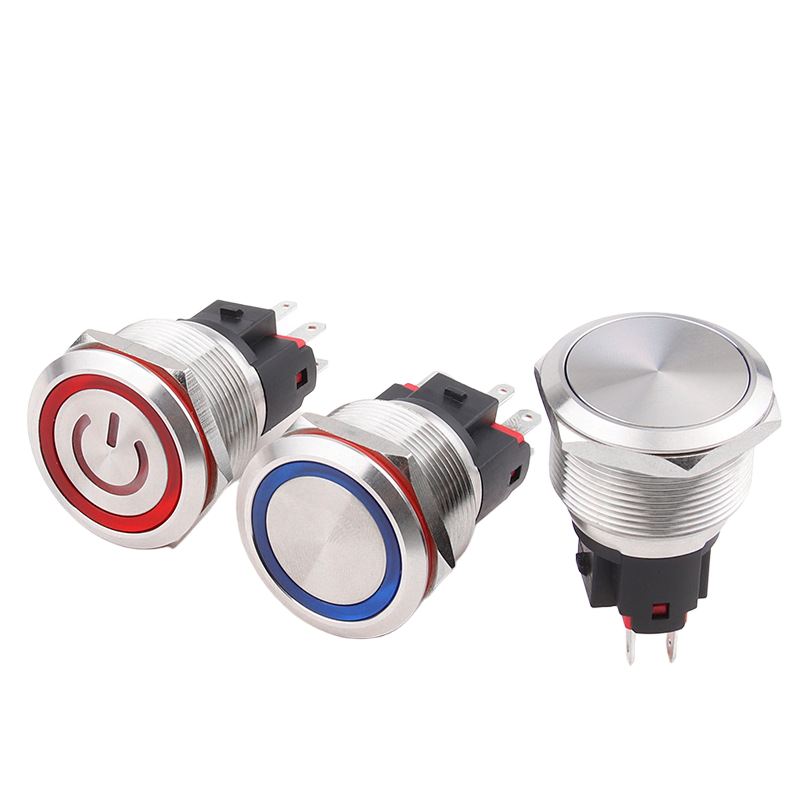

This 25mm high current waterproof metal push button switch is built for heavy-duty power control systems. It supports wide voltage range 5V/24V/220V and high current load for versatile use. IP67 waterproof rating ensures stable performance in humid, outdoor and harsh environments. Ring LED provides clear status indication. 1NO+1NC dual-contact structure enables safe and reliable circuit control. Stainless steel construction and silver-plated contacts ensure long service life.
1. What is the mounting size?
Standard 25mm mounting hole size.
2. Is this switch high current & waterproof?
Yes, it is high current with IP67 waterproof protection.
3. What voltage does it support?
It supports 5V, 24V and 220V wide voltage range.

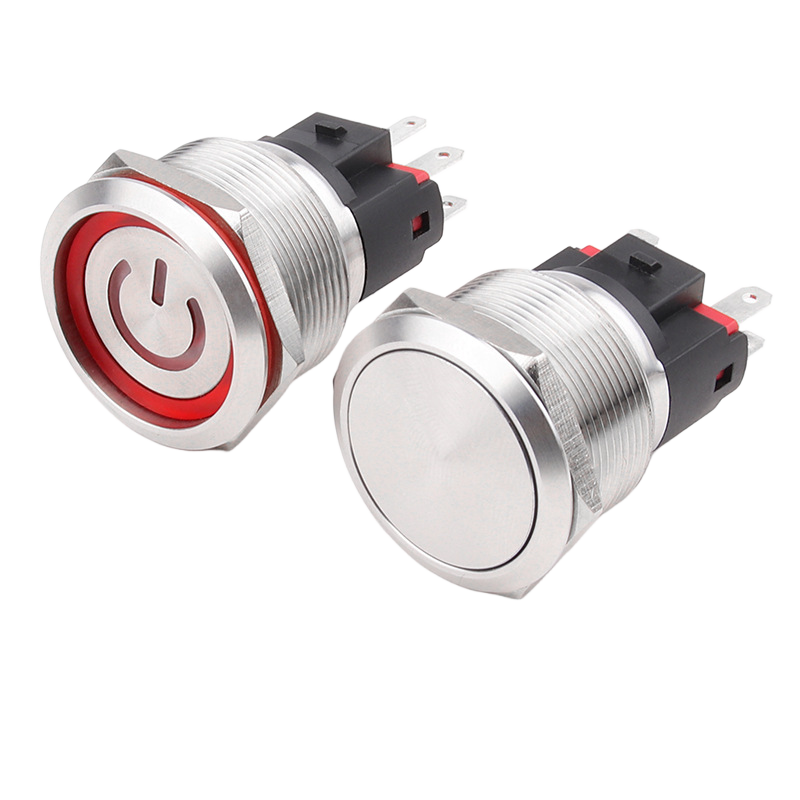

4. Does it support maintained and momentary modes?
Yes, both maintained and momentary operation are optional.
5. What contact configuration does it use?
It uses 1NO + 1NC double contact structure.
| Bezel | |
|---|---|
| Connection | |
| Contact Material | |
| Head Material | |
| Head Type | |
| Lamp | |
| Lamp Type | |
| LED Color | |
| Operation of Contact | |
| PIN Material | |
| Shell Material |
