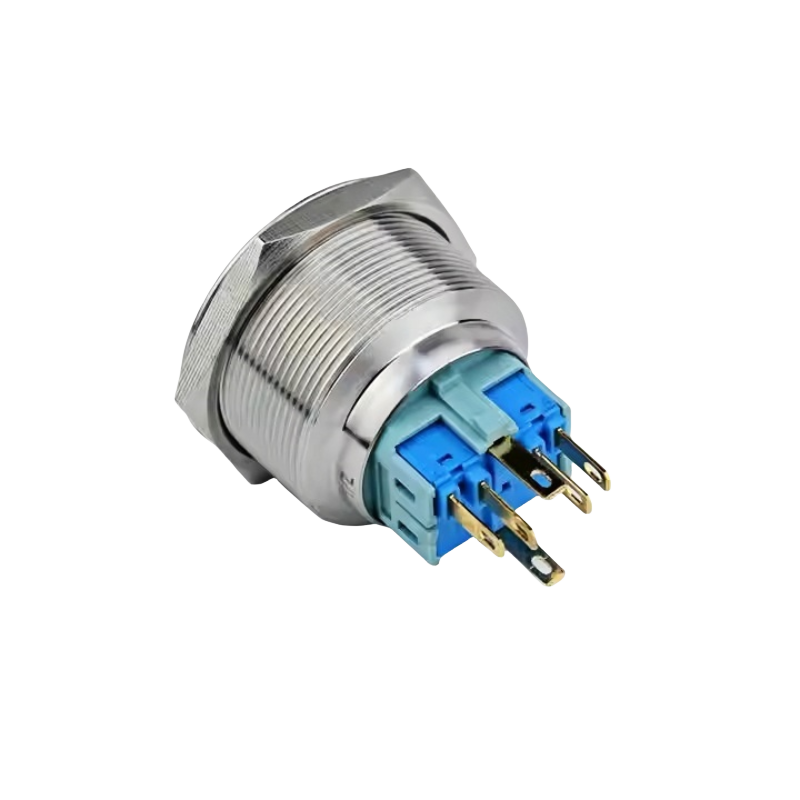

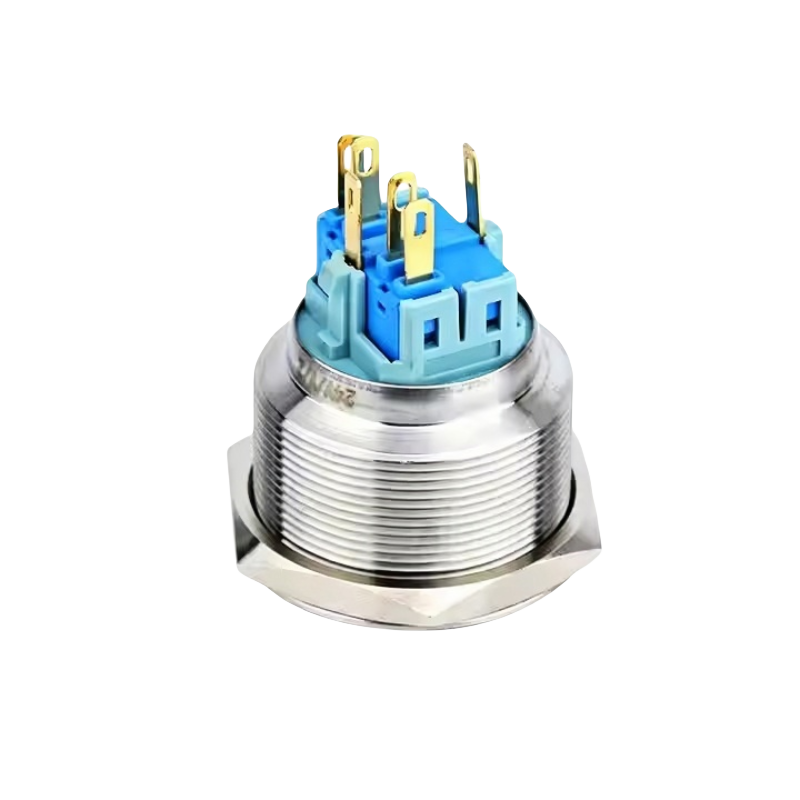

28mm Metal Momentary 12V 24V 220V Blue LED Waterproof IP67 Car Auto Engine PC Power Metal Push Button Switch

High-quality 28mm metal push button switch with a momentary action and bright blue LED illumination. Designed for durability and performance in harsh environments, this waterproof switch is suitable for use in automotive (car engine start), marine, industrial machinery, PC power systems, and more. Supports multiple voltage applications including 12V, 24V, and 220V, making it a versatile choice for both low and high-voltage control circuits.

Enquiry
SKU:SCJ7M28FZCategory:
Description

Mounting Hole

28mm

Operation Type

Momentary (Reset)

Switch Combination

1NO1NC

Actuator Shape

Flat Round Head

Terminal type

5 Pin Terminals

Illuminated or not

Yes

Led Voltage

12V (or 3V/5V/24V/110V/220V/others)

Led Color

Blue

(Red, Green, Yellow,White,Orange available)

Illuminated Type

Ring and Power logo Led

Enclosure Material

Stainless Steel

Delivery Days

1-7 days

 Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Attributes
Connection

Contact Material

Operation of Contact

,

Position

,

PIN Material
