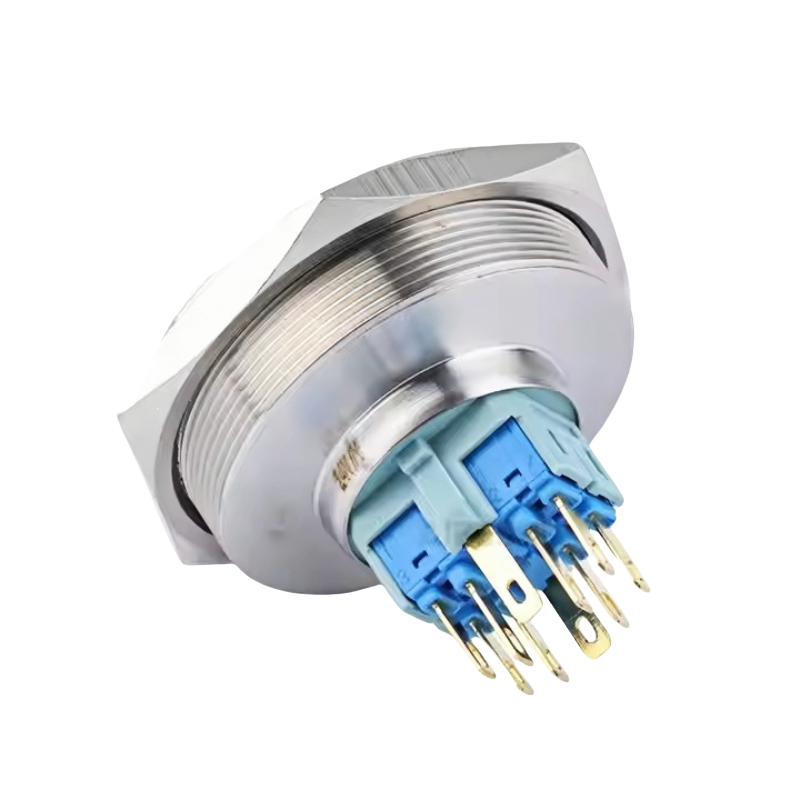

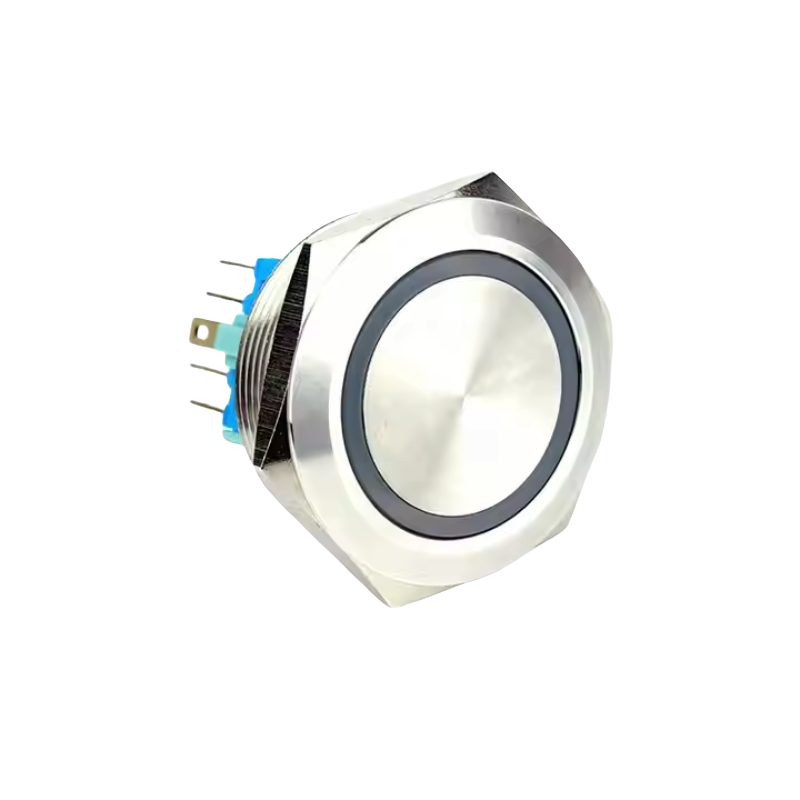

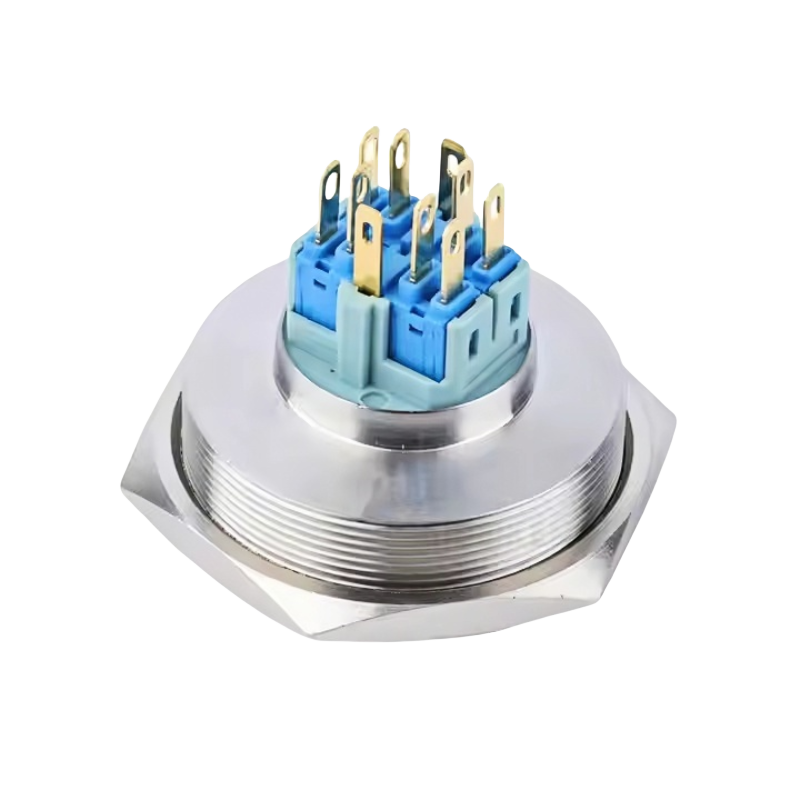

This 30mm DPDT latching metal push button switch controls two circuits at once. Featuring a durable metal housing and built-in LED illumination, it offers clear visibility and reliable performance. Ideal for industrial panels, power systems, and automation setups where sturdy, visible control is needed.
Mounting Hole | 30mm |
Operation Type | Latching |
Switch Combination | 2NO2NC |
Head Type | Flat head |
Terminal type | Solder Terminal |
Enclosure Material | Stainless steel |
Delivery Days | 3-7 days after payment received |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
This 30mm DPDT latching LED metal push button adopts professional double-pole double-throw design, which can control two independent circuits at the same time. 2NO2NC complete contact structure meets complex electrical control logic. Built-in LED light clearly shows working state, convenient for equipment operation and monitoring. Flat head appearance is simple and atmospheric, suitable for large control cabinets and industrial panels. Stainless steel shell has excellent corrosion resistance and mechanical durability, adapting to indoor and conventional industrial environments. Solder terminal ensures reliable wiring, stable electrical performance and long service life.
1. What is the mounting size?
Standard 30mm large mounting hole diameter.
2. What is DPDT function?
Double Pole Double Throw, can control two circuits simultaneously.
3. What contact configuration?
Standard 2NO2NC combination for complex circuit control.
4. Is it latching type?
Yes, self-locking latching design for stable on/off state.
5. What terminal and material?
Solder terminal, high-quality stainless steel housing with silver contacts.
| Connection | |
|---|---|
| PIN Material | |
| Operation of Contact | |
| Contact Material | |
| Position |
