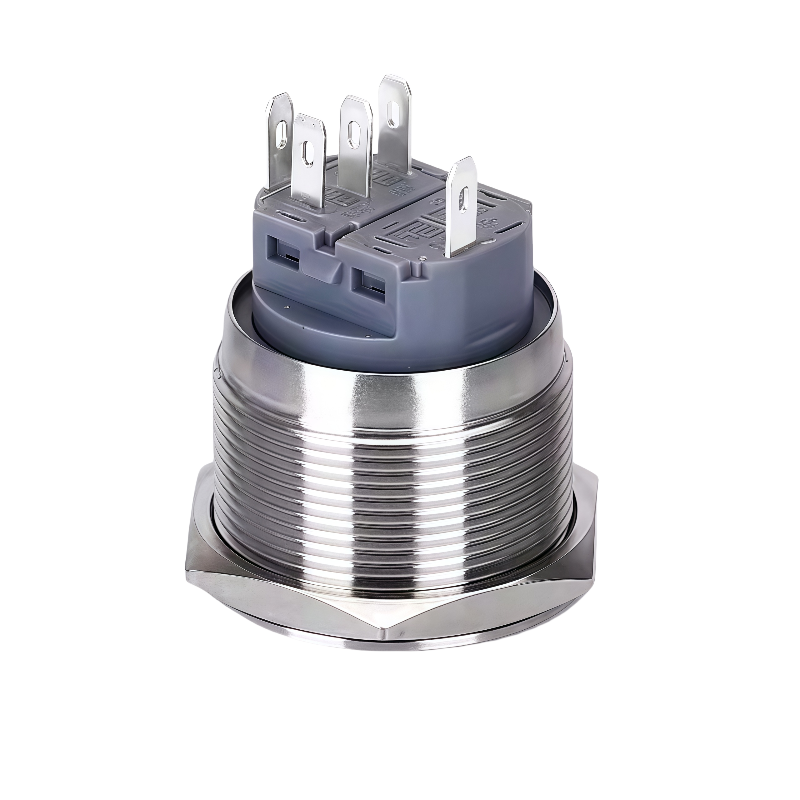

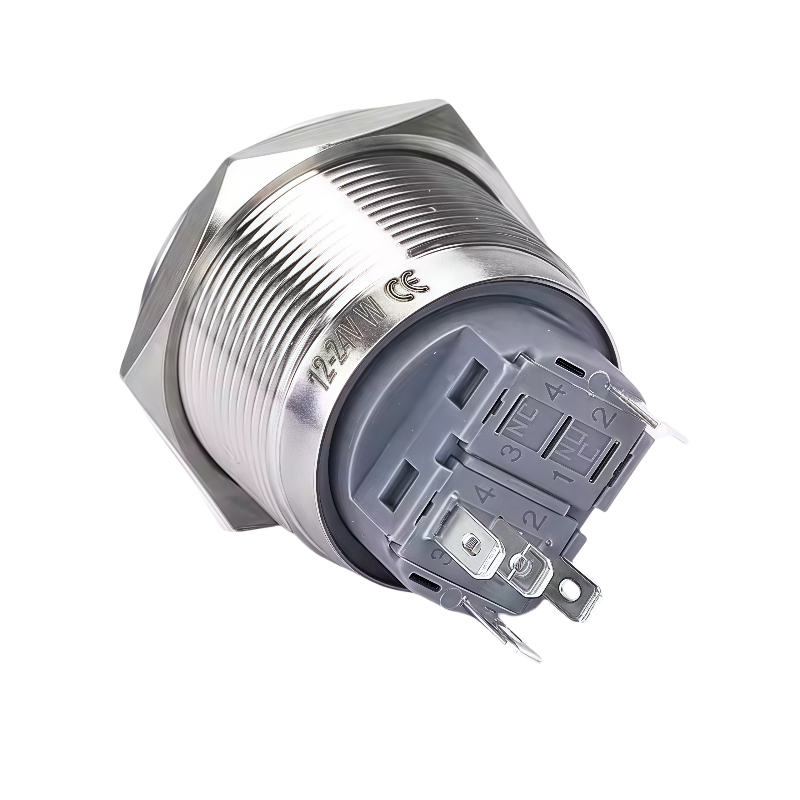

Durable 30mm flat head push button switch with a stainless steel body, featuring a 5-pin terminal, 1NO1NC configuration, and momentary action. Equipped with a ring LED for enhanced visibility, this 2-position metal switch is perfect for industrial control systems, offering reliable performance and sleek aesthetics in demanding environments.
| Mounting Hole | 30mm |
| Head Type | Flat Head |
| Operation Type | Momentary |
| Switch Combination | 1NO1NC |
| Position Type | 2 Position Maintained |
| Terminal Type | 5 Pin Terminal / Plug In |
| Enclosure Material | Stainless Steel |
| Contact Resistance | Max 50mΩ |
| Insulation Resistance | Min 1000MΩ |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~ +55°C |
This 30mm flat head momentary push button adopts integral stainless steel body with elegant flat head appearance. It is designed with 2-position structure, 1NO1NC contact and 5-pin plug-in terminal. Built-in ring LED provides clear status reminder. With low contact resistance, high insulation and voltage resistance, and wide temperature adaptability, it maintains stable and reliable performance in industrial harsh environments, ideal for industrial control systems and mechanical equipment panels.
1. Mounting size?
Standard 30mm mounting hole diameter.
2. Operation mode?
Momentary self-recovery type.
3. Contact configuration?
1NO1NC standard SPDT combination.
4. Terminal & material?
5 pin terminal; full stainless steel housing.
5. Electrical performance?
50mΩ max contact resistance, 2000VAC dielectric intensity.
| Connection | |
|---|---|
| Contact Material | |
| PIN Material | |
| Operation of Contact | |
| Head Type | |
| Position | |
| Shell Material |
